Tascam SERIES 8p Dyna 8 channel Mic Preamplifier

8-channel Microphone Preamp with 8 x XLR/TRS Combo Jacks, 8 x 1-knob Compressors, +48V Phantom Power, Dual S/MUX Optical Outputs, 8 Line-level Analog Outputs, Word Clock I/O, and Front-panel LED Indicators

Cek Harga
Share atau Bagikan :

Description

The TASCAM Series 8p Dyna is a top-notch solution for adding extra channels to your live or studio rig. The Series 8p Dyna includes eight of TASCAM’s excellent-sounding HDIA microphone preamps, along with an easy-to-use 1-knob compressor on each channel. These pres exhibit impressive specs — especially at this price point. The all-analog compressors are equally as significant — they effectively tame hot input signals and include true-bypass switching, so they don’t color your sound when they’re disengaged. The Series 8p Dyna boasts a bevy of pro-level features, including individually switched +48-volt phantom power on each channel, dual S/MUX optical outputs, eight line-level balanced analog outputs, and word clock I/O. You also get front-panel indicators, enabling you to keep an eye on your levels and compressor status. The Series 8p Dyna is housed in a rugged metal, 1U rackmount enclosure.

No-compromise HDIA preamps deliver natural, transparent sound

The Series 8p Dyna comes loaded with eight of TASCAM’s High Definition Instrumentation Architecture (HDIA) microphone preamps. Their specs are impressive for their asking price — a -127dBu EIN, 0.0007% THD, 116dB of dynamic range, and 119dB of crosstalk. But that’s not all! Each channel also includes an easy-to-use, 1-knob analog compressor for taming hot input signals. What’s more, the compressors feature true-bypass switching, so they don’t affect your sound when they’re not in use.

Expand your interface and connect to pretty much anything

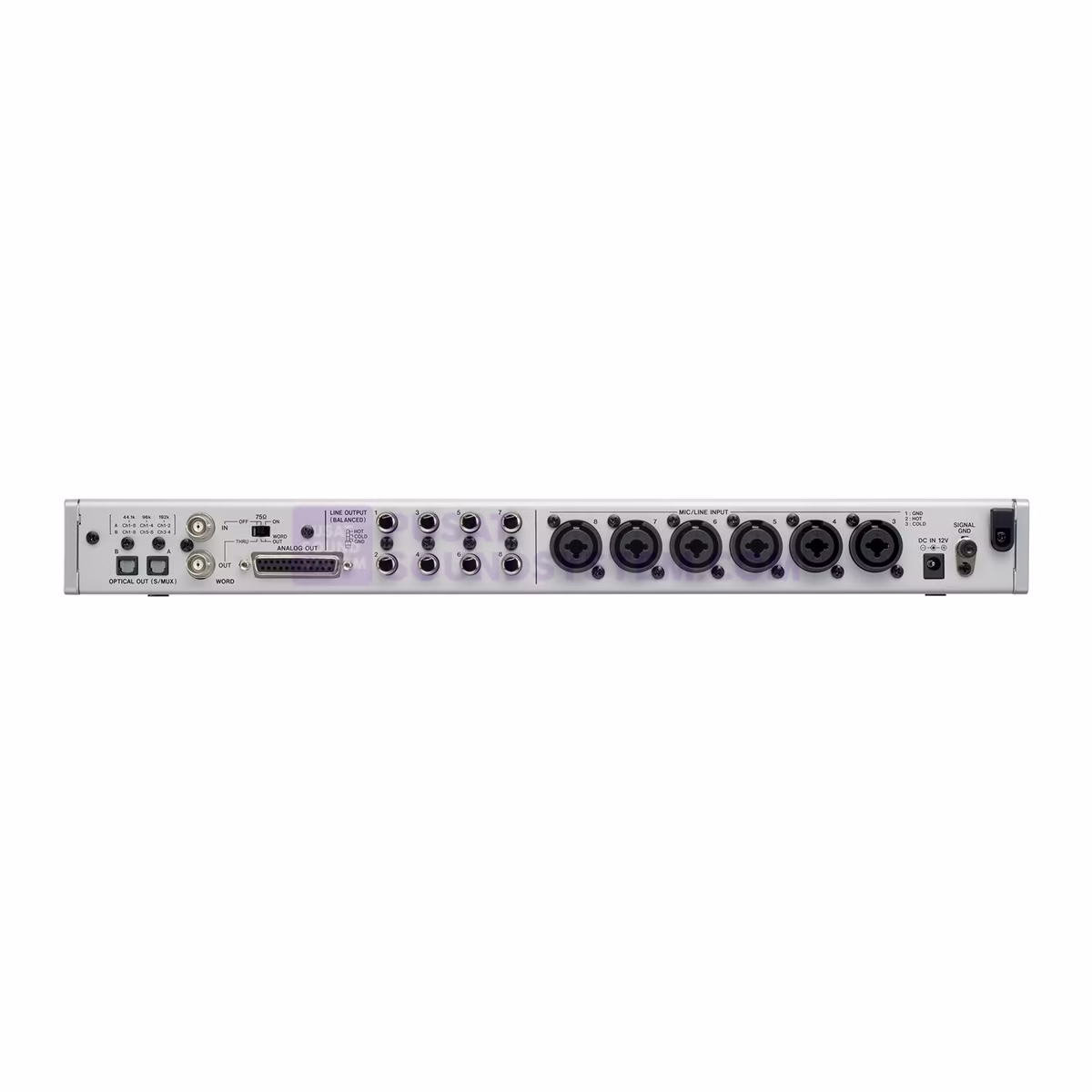

The Series 8p Dyna is a great way to expand your existing audio interface, thanks to its dual S/MUX optical outputs. Thanks to these ports, you can pipe all eight of the Series 8p Dyna’s channels into your live or recording rig at up to 96kHz (four channels at 176.4kHz or 192kHz). You also get eight line-level analog outputs — on both balanced TRS connectors and balanced 25-pin D-sub connectors — for routing signals to A/D converters, recording mixers, front-of-house consoles, and pretty much everything else.

Packed with loads of pro-level features

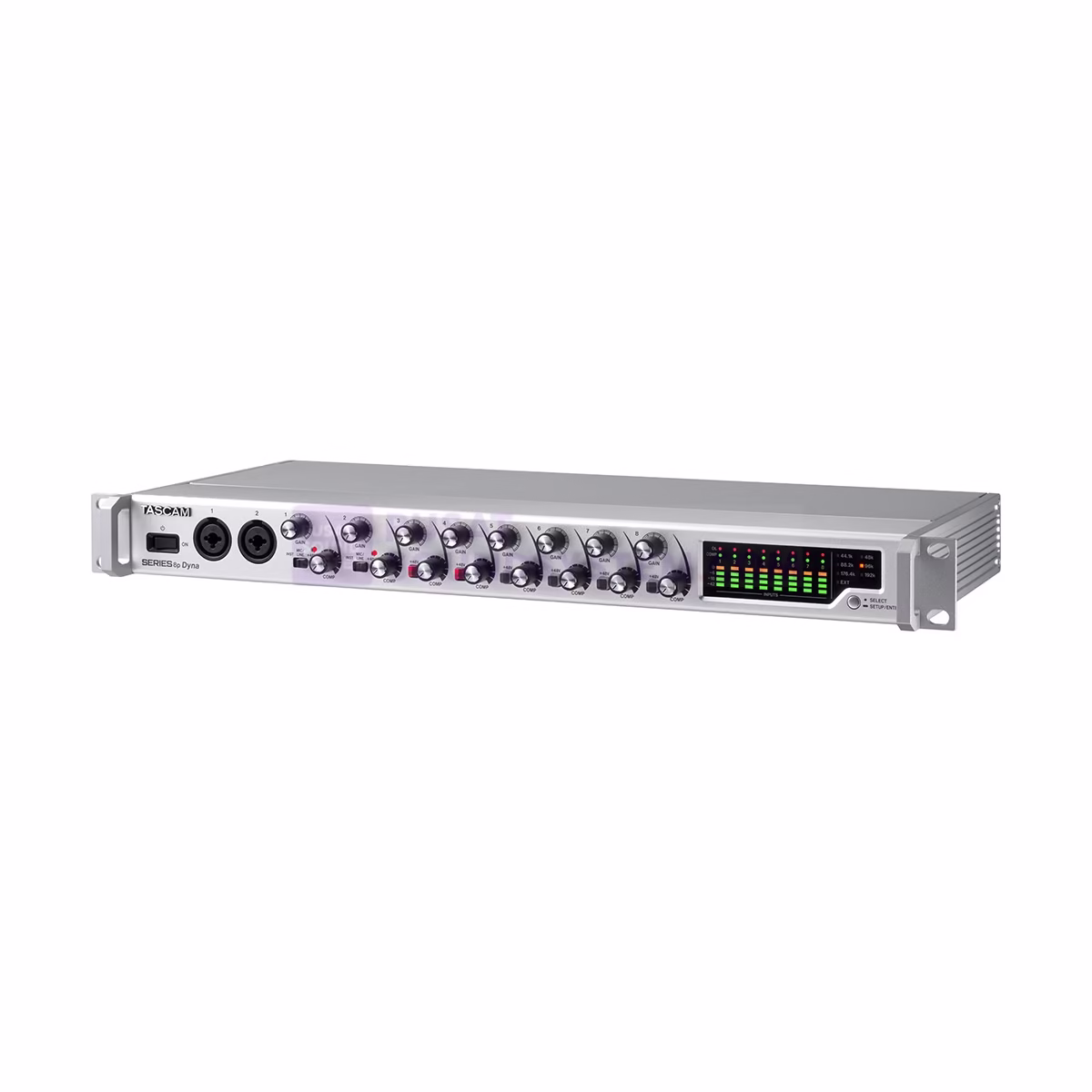

The TASCAM Series 8p Dyna includes a useful array of pro-level features. Word clock I/O BNC connectors, with an in/out/thru switch, enables you to synchronize the Series 8p Dyna with your digital gear — without the pops, dropouts, and other unwanted artifacts. Front-panel analog overload indicators, compression indicators, and digital peak and level meter bars, make monitoring the device’s performance a piece of cake. Beyond that, the Series 8p Dyna is housed in a rugged metal, 1U rackmount enclosure, so it can withstand the rigors of the stage and studio.

TASCAM Series 8p Dyna Features:

  • A top-notch solution for adding extra channels to your live or studio rig
  • 8 HDIA microphone preamps capture any source with natural, transparent sound
  • Easy-to-use 1-knob compressor on each channel for taming hot input signals
  • Compressors include true-bypass switching to safeguard your sound when they’re disengaged
  • 2 instrument/microphone combo inputs accommodate mics, guitars, basses, and more
  • 6 balanced mic/line inputs accommodate microphones and line-level equipment
  • +48V phantom power for your condenser microphones
  • 52dB of gain on tap — works with all but the most gain-hungry of microphones
  • Dual S/MUX optical outputs make expanding your existing interface easy
  • 8 line-level analog outputs for routing signals to A/D converters, mixers, consoles, and more
  • Word clock I/O enables you to synchronize with your digital gear
  • Front-panel indicators make monitoring the device’s performance a piece of cake
  • Housed in a rugged metal, 1U rackmount enclosure

Spesifikasi

Digital Specifications
Sampling Frequency 44.1, 48, 88.2, 96, 176.4, and 192 kHz
Bit Rate 24-Bit
Inputs
Input Connections 8 x XLR-1/4″ Combination Jacks
Input Impedance Mic Input: 2.3 Kilohms
Instrument Input: 1 Megohm or More
Line Input: 10 Kilohms
Input Gain Mic: -58 dBu (Minimum), -6 dBu (Maximum)
Instrument: -58 dBV (Minimum), -6 dBV (Maximum)
Line: -48 dBu (Minimum), +4 dBu (Maximum)
Gain Range 52 dB
Maximum Input Level Mic: +10 dBu
Instrument: +10 dBV
Line: -+24 dBu
Outputs
Output Connections 8 x 1/4″ TRS Line Outputs, Balanced
1 x DB25 Connector
Output Impedance Analog Output: 100 Ohms or Less
Line Output: 230 Ohms or Less
Load Impedance: 2 kOhms or More
Output Level Nominal: +4 dBu
Maximum +20 dBu
Digital Audio Connectors Optical I/O, Multichannel Optical Format, Supports S/MUX2 at 88.2 and 96 kHz, S/MUX4 at 176.4 and 192 kHz
Clock
Word Clock I/O I/O: 2 x BNC Sockets
Voltage Clock Input: 2.0 to 5.0 V p-p
Clock Output: 2.0 V p-p into 75 Ohms
Impedance Input: 75 Ohms ±10% with Terminal On/Off Switch
Output: 75Ω ±10% with OUT/THRU Switch
Sampling Frequency 44.1 48, 88.2, 96, 176.4, and 192 kHz
Audio Performance
EIN Mic Amp: -127 dBu or Lower
Frequency Response Mic/Line to Line Output
20 Hz to 40 kHz, ±0.5 dB
40 kHz 80 kHz ±5 dBMic/Line (Analog) to Digital Output (S/MUX)
Fs 44.1/48 kHz: 20 Hz to 20 kHz ±0.5 dB
Fs 88.2/96 kHz: 20 Hz to 40 kHz ±0.5 dB
Fs 176.4/192 kHz: 20 Hz to 80 kHz ±5 dB
Signal to Noise Ratio Mic/Line/Instrument Input to Line Output: 116 dB
Mic/Line/Instrument Input to Digital Output (S/MUX): 113 dB at FS 44.1 kHz and 48 kHz; 111 dB at Fs 96 kHz
THD Mic/Line to Line Output: 0.0007%
Instrument to Line Output: 0.0009%
Mic/Line/Instrument to Digital Output (S/MUX): 0.001%
Crosstalk Mic to Line Output: 119 dB
Mic to Digital Output (S/MUX): 114 dB
Physical
Power 12 VDC (Dedicated AC Adapter)
Power Consumption 16 W
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions (W x H x D) 19 x 1.8 x 9″ / 48.2 x 4.4 x 22.8 cm
Weight 5.7 lb / 2.6 kg
Packaging Info
Package Weight 7.745 lb
Box Dimensions (LxWxH) 21.4 x 11.3 x 5″
