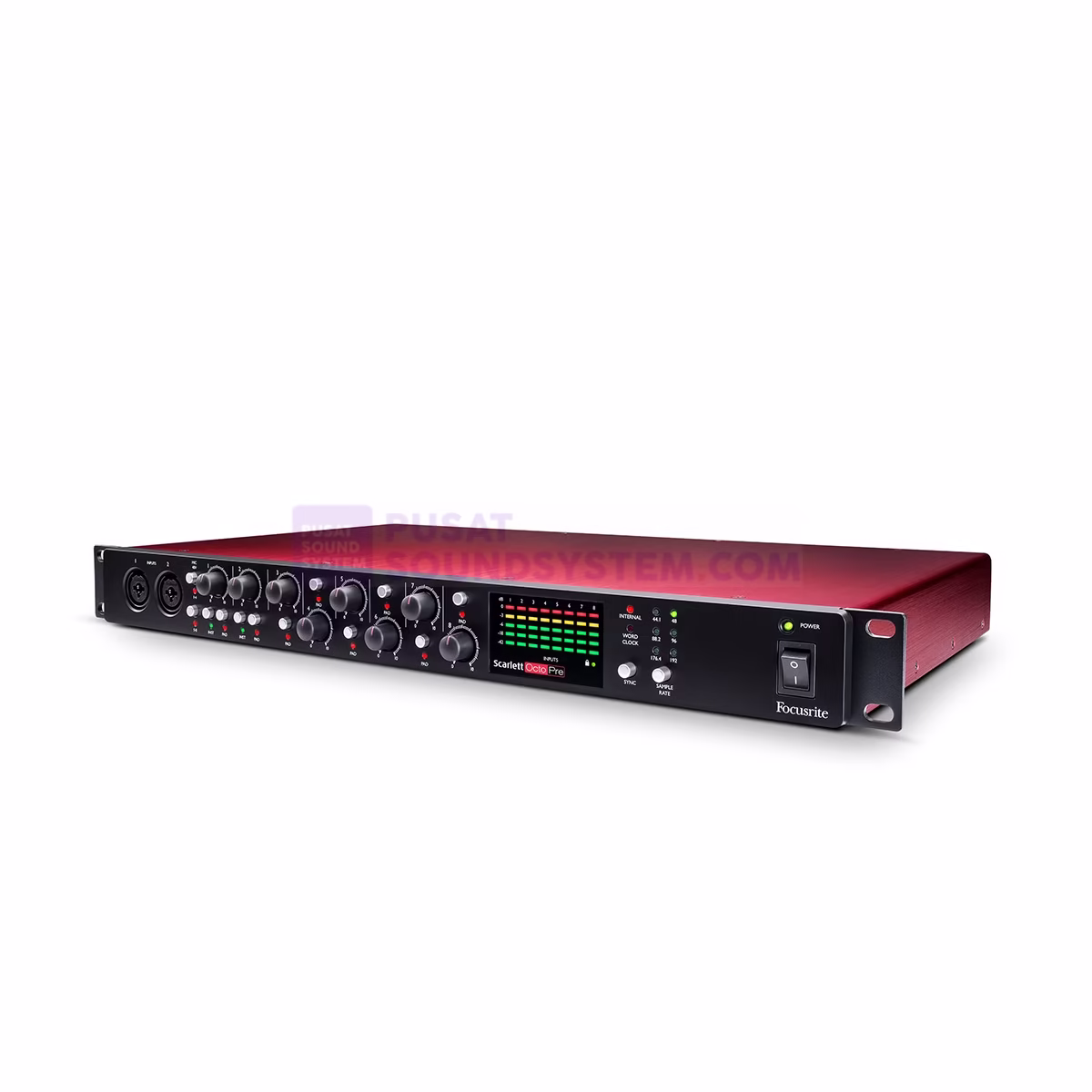

Focusrite Scarlett OctoPre 8-Channel Mic Preamp

8-channel Mic/Line Preamplifier, 24-bit/192kHz, with 8 line outputs and ADAT Outputs – Mac/PC

Cek Harga
Share atau Bagikan :

Description

Need more channels from your digital interface? The Focusrite Scarlett OctoPre expands your setup with eight additional 2nd-generation Scarlett mic preamps. Also onboard is Focusrite’s high-res 24-bit/192kHz AD/DA conversion. OctoPre gives you eight line outputs to feed your analog rig, along with ADAT optical output to expand any ADAT-equipped interface. OctoPre’s pristine Focusrite preamps, high-quality conversion, and expansion capabilities make it the ideal way to grow your studio.

Designed for flexibility

The Focusrite Scarlett OctoPre is equipped with eight vibrant, 2nd generation Focusrite mic/line preamps that offer high headroom, copious clean gain, low noise, and vanishing low distortion — perfect for tracking drums, guitars, vocals, and more. Want to take the bass or keys direct? Scarlett OctoPre makes it convenient with its two extended-headroom front-panel instrument inputs. ADAT outputs offer easy connection to any interface or digital system fitted with ADAT optical inputs, and the analog line outputs are perfect for feeding an analog console while recording with the digital outputs.

Award-winning Focusrite preamps onboard

For over 25 years, Focusrite’s award-winning pres have proven their mettle in pro studios around the world. Focusrite ports their considerable design savvy into the transparent, low-noise, low-distortion preamps in the Scarlett OctoPre. This is the same technology found in Focusrite’s flagship products, giving you gobs of available headroom to accommodate your dynamic, condenser, and ribbon mics on any source, no matter how boisterous. Of course, you also get phantom power for your mics that require it.

Accurate digital conversion and sync

Engineers know that conversion is key to superior digital audio, and every Scarlett unit features Focusrite’s class-leading 24-bit/192kHz conversion. Offering up to 109dB of dynamic range, the Scarlett OctoPre is the easy, clean way to expand your studio I/O.

Focusrite Scarlett OctoPre Features:

  • 8-channel mic/line preamp expansion with ADAT output
  • 8 x 2nd-generation Scarlett mic/line pres,
  • 8 line outputs, fed from mic preamps
  • Up to 24-bit/192kHz AD/DA for high-resolution audio
  • ADAT outputs (8 channels at up to 48kHz, 4 channels at 96kHz, 2 channels at 192kHz)
  • Mic pres and front-panel instrument inputs engineered with generous headroom
  • 5-segment LED metering and channel clip indicators
  • 48-volt phantom power available across all inputs (switchable: 1-4, 5-8)
  • Word clock I/O
  • Includes Focusrite Red 2 & 3 plug-in suite and Softube Time & Tone bundle

Spesifikasi

Form Factor Rackmount (1 RU)
Display 8 x Multi-Segment LED Meters
Mic Preamps 8
Gain Control 8 x Knobs
Pad -8 dB (Selectable per Channel)

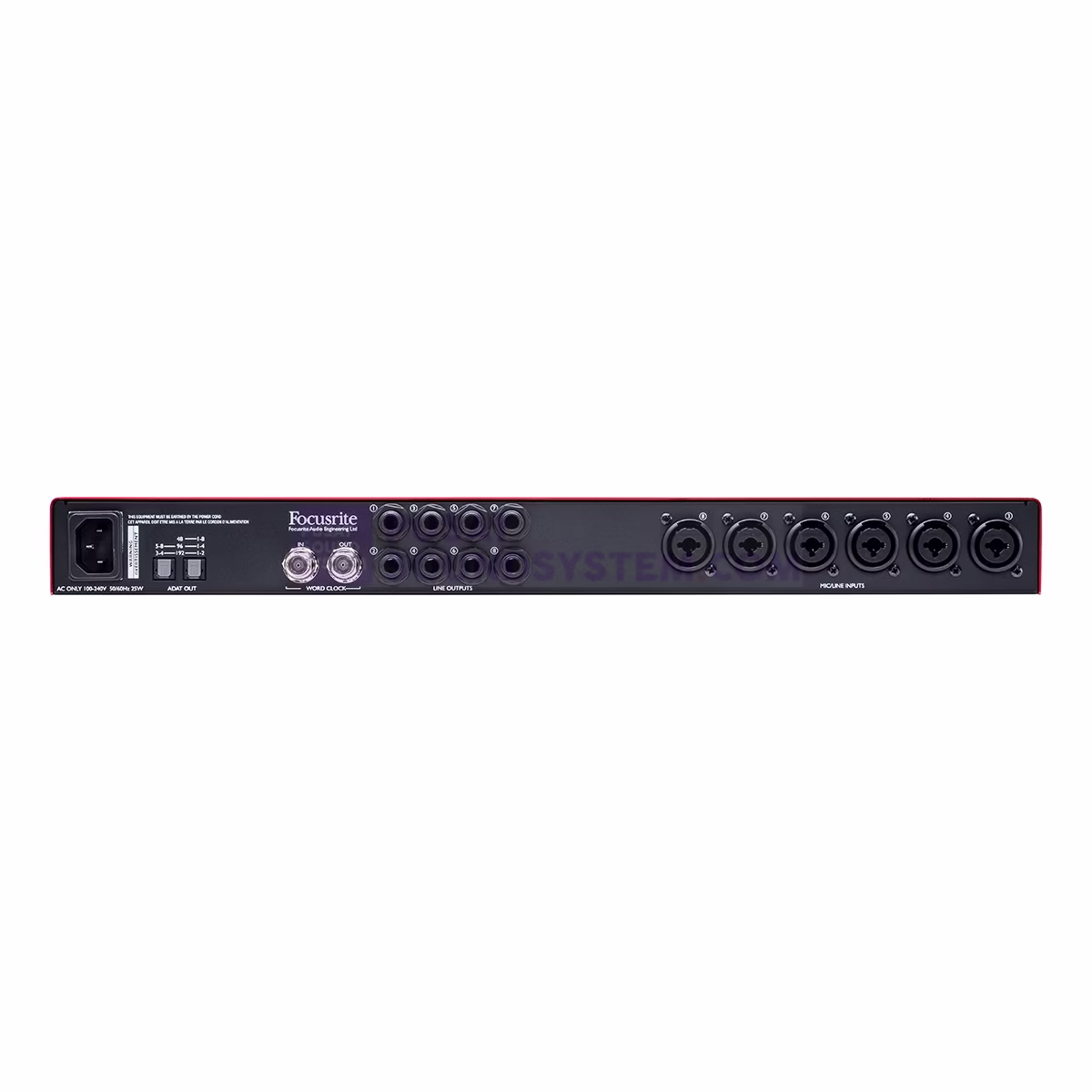

Analog Audio I/O 2 x XLR-1/4″ TRS Combo Balanced/Unbalanced Mic/Line/Hi-Z Inputs (Front Panel)
6 x XLR-1/4″ TRS Combo Balanced Mic/Line Inputs
8 x 1/4″ TRS Balanced Line Outputs
Phantom Power +48 V, On/Off Switchable in 4-Channel Banks (1-4 and 5-8)
Digital Audio I/O 2 x TOSLINK Optical ADAT Outputs (SMUX and SMUX 4 Support)
Sync I/O 1 x BNC Female Wordclock Input
1 x BNC Female Wordclock Output
Frequency Response Inputs: 20 Hz to 20 kHz (+0.5 dB, -1.5 dB)
Gain Range Inputs: 50 dB
Maximum Input Level Mic Input (Pad Off): +8 dBu
Mic Input (Pad On): +16 dBu
Line Input: +22 dBu
Hi-Z Input: +13 dBu
Maximum Output Level > +16 dBu at 0 dBFS
> +21 dBu Where ADAT Output Is Not Used
Impedance Mic Input: 3 Kilohms
Line Input: 49 Kilohms
Hi-Z Input: 1 Megohm
Line Output: 136 Ohms for Units with Serial Number ≤ W860083007515
Line Output: 576 Ohms for Units with Serial Number ≤ W860083007515
Wordclock Input: 75 Ohms
Wordclock Output: 75 Ohms
Dynamic Range Mic/Line Inputs: 109 dB (A-Weighted)
Hi-Z Inputs: 108 dB (A-Weighted)
THD + N Mic Inputs: Line Inputs: Hi-Z Inputs: Line Outputs:
EIN Mic Inputs: -127 dBu
Word Clock Specs Input Voltage: 2.5 V
Output Voltage: 5 V
Sample Rates 44.1, 48, 88.2, 96, 176.4, and 192 kHz
Bit Depth 24-Bit
Power Supply Universal: 100 to 240 VAC, 50/60 Hz
Dimensions (W x H x D) 19.0 x 1.8 x 11.3″ / 48.3 x 4.4 x 28.6 cm
Weight 7.1 lb / 3.2 kg
Packaging Info
Package Weight 10.55 lb
Box Dimensions (LxWxH) 23.7 x 14 x 4.1″
