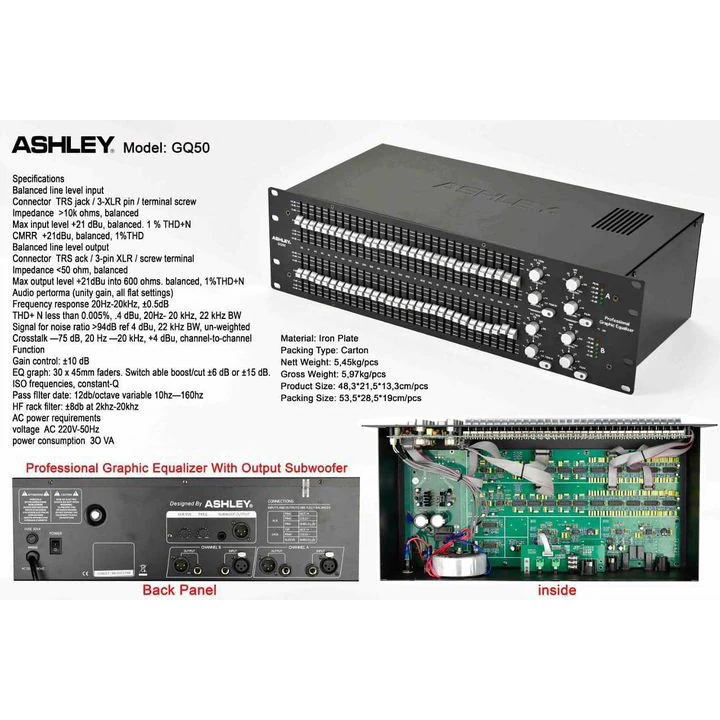

Ashley GQ50 Graphic Equalizer 31 Band 2 Channel
Chat PenjualDescription
- Balanced line level input
- Connector TRS jack / 3-XLR pin / terminal screw
- Impedance >10k ohms, balanced
- Max input level +21 dBu, balanced. 1 % THD+N
- CMRR +21dBu, balanced, 1%THD
- Balanced line level output
- Connector TRS ack / 3-pin XLR / screw terminal
- Impedance <50 ohm, balanced
- Max output level +21dBu into 600 ohms. balanced, 1%THD+N
- Audio performa (unity gain, all flat settings)
- Frequency response 20Hz-20kHz, 10.5dB
- THD*+ N less than 0.005%, .4 dBu, 20Hz- 20 kHz, 22 kHz BW
- Signal for noise ratio >94dB ref 4 dBu, 22 kHz BW, un-weighted
- Crosstalk —75 dB, 20 Hz —20 kHz, +4 dBu, channel-to-channel
Function
- Gain control: ±10 dB
- EQ graph: 30 x 45mm faders. Switch able boost/cut ±6 dB or ±15 dB.
- ISO frequencies, constant-Q
- Pass filter date: 12dbloctave variable 10hz—160hz
- HF rack filter: 18db at 2khz-20khz
- AC power requirements
- voltage AC 220V-50Hz
- power consumption 30 VA
- Materia. Iron Plate
- Packing Type: Carton
- Nett Weight 5.45kg/pcs
- Gross Weight: 5.97kg/pcs
- Product Suze: 48,3*21,5*13 3cm/pcs
- Packing Size’ 53,57*28, 5*19cm/pcs
