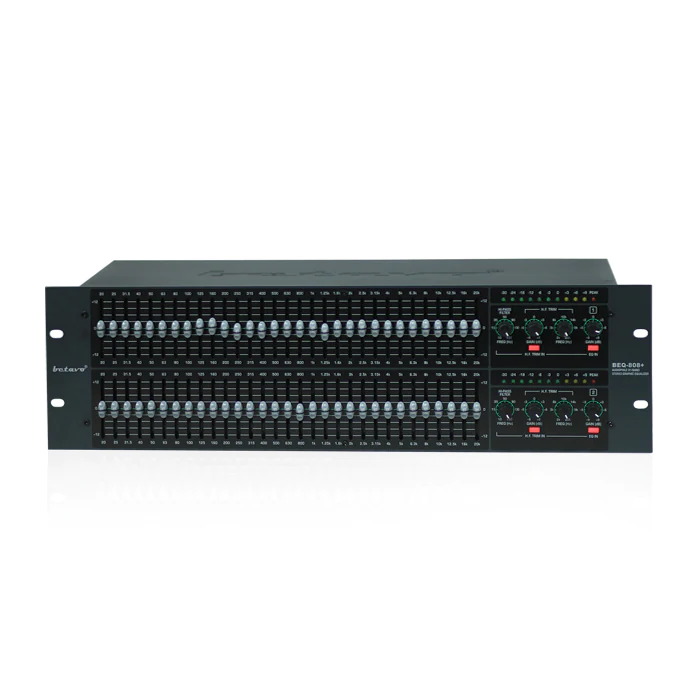

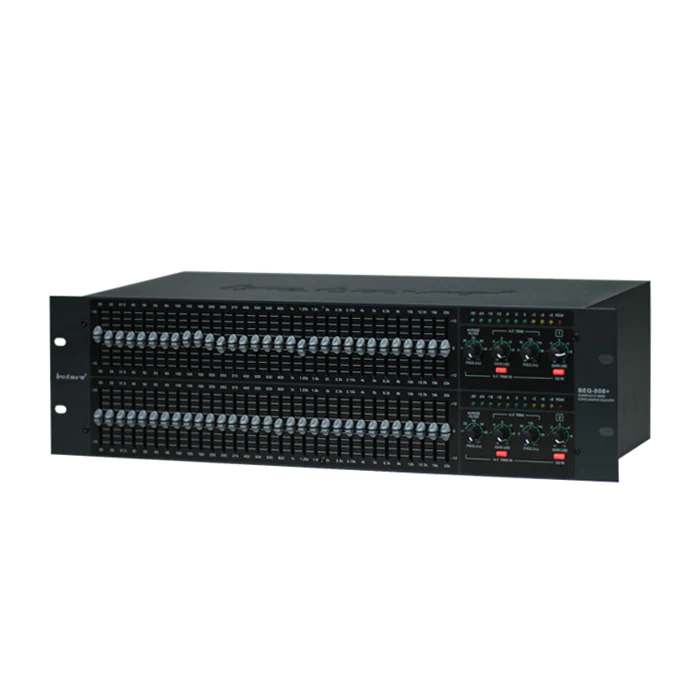

Betavo BEQ-808+ Graphic Equalizer 31 Band 2 Channel
Graphic Equalizer Analog 2 x 31 Band
Description
Spesifikasi :
- Input Two, electronically balanced.
- Impedance >10k ohms.
- CMRR >65dB 50Hz-10kHz.Output Two, electronically balanced.
- Source Imp. <60 ohms.
- Min. Load 600 ohms.
- Max. Level +23dBm into 600 ohm load.
- Gain ±10dB via rotary control.
- Frequency Response ±0.5dB 20Hz-20kHz with control “flat”
- Equivalent Input Noise <-98dBm (20-20kHz unweighted) with control “flat”
- Distortion @ +18dBm <0.01% @ 1kHz.
- Peak Indicator Threshold: +20dBu.
- H.F. Trim
- Filter type 2nd order, optimum phase, shelving.
- Frequency 2kHz-20kHz.
- Gain ±8dB max. @20kHz.
- H.F. Trim In/Out Front Panel switch with LED indicator.
- High-pass Filter
- Filter Type 12dB/octave H.P.
- Frequency 10Hz-150Hz
- Low-pass Filter
- Filter Type 12dB/octave -3dB @27kHz.
- LPF In/Out Link selectable on PCB.
- Equalizer Section
- Filters 2 x 31, 1/3 octave, 20Hz-20kHz.
- Filter Type High performance simulated LCR network.
- Freq. Tolerance ±3%.
- Range ±12dB.
- Connectors
- Inputs 3 pin female XLR. 1/4″ TRS
- Output 3 pin male XLR. 1/4″ TRS
- Sub Output 3 pin male XLR. 1/4″ TRS
- Power 3 Pin IEC.
- Power 200VAC-240VAC @ 60Hz.
- Consumption <20W
- Nett Weight 4.03 KG
- Gross Weight 4.84 KG
- Dimension product 49*21*14 CM
- Packing Size 56*29*19 CM
