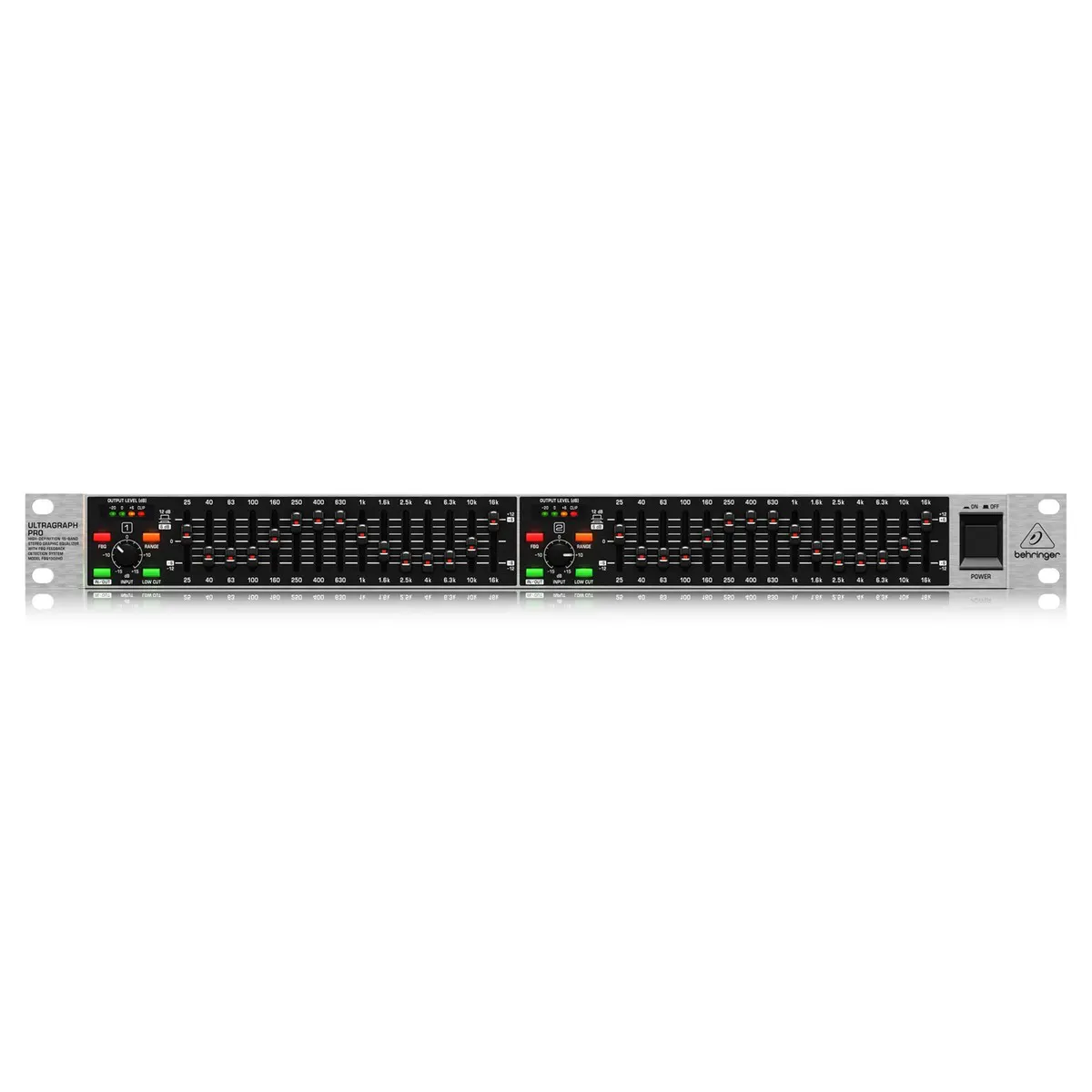

Behringer FBQ1502HD Graphic Equalizer 15 Band Feedback Detection System
High-Definition 15-Band Stereo Graphic Equalizer with FBQ Feedback Detection System
Description
The Behringer Ultragraph Pro FBQ1502HD 15-band graphic equalizer is loaded with the professional features you need for dialing in great live sound. An FBQ Feedback Detection system quickly locates problem frequencies, while a Planet Earth switching power supply yields noise-free audio, superior transient response, and efficient power consumption. Its 4580 dual op-amps exhibit low noise and excellent sound quality. Remove floor rumble and other unwanted low-end frequencies with a highpass (low-cut) filter on each channel. The Ultragraph Pro’s 12-segment LED meter is extremely precise, and its input gain controls make setting levels a piece of cake. The Behringer Ultragraph Pro 15-band graphic equalizer is a great value for your studio or live sound rig. Live and recorded sound enthusiasts here at Sweetwater love the Behringer FBQ1502HD 15-band graphic equalizer and know you will too.
Product Features
- Professional 15-band stereo graphic equalizer for live and studio applications
- Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies and can also be used as audio analyzer
- Ultra-low noise 4580 operational amplifiers for highest signal integrity
- Dedicated mono subwoofer output with adjustable crossover frequency
- Additional low-cut filter removes unwanted frequencies, e.g. floor rumble
- Highly accurate 4-segment LED output metering and input gain controls for easy level setting

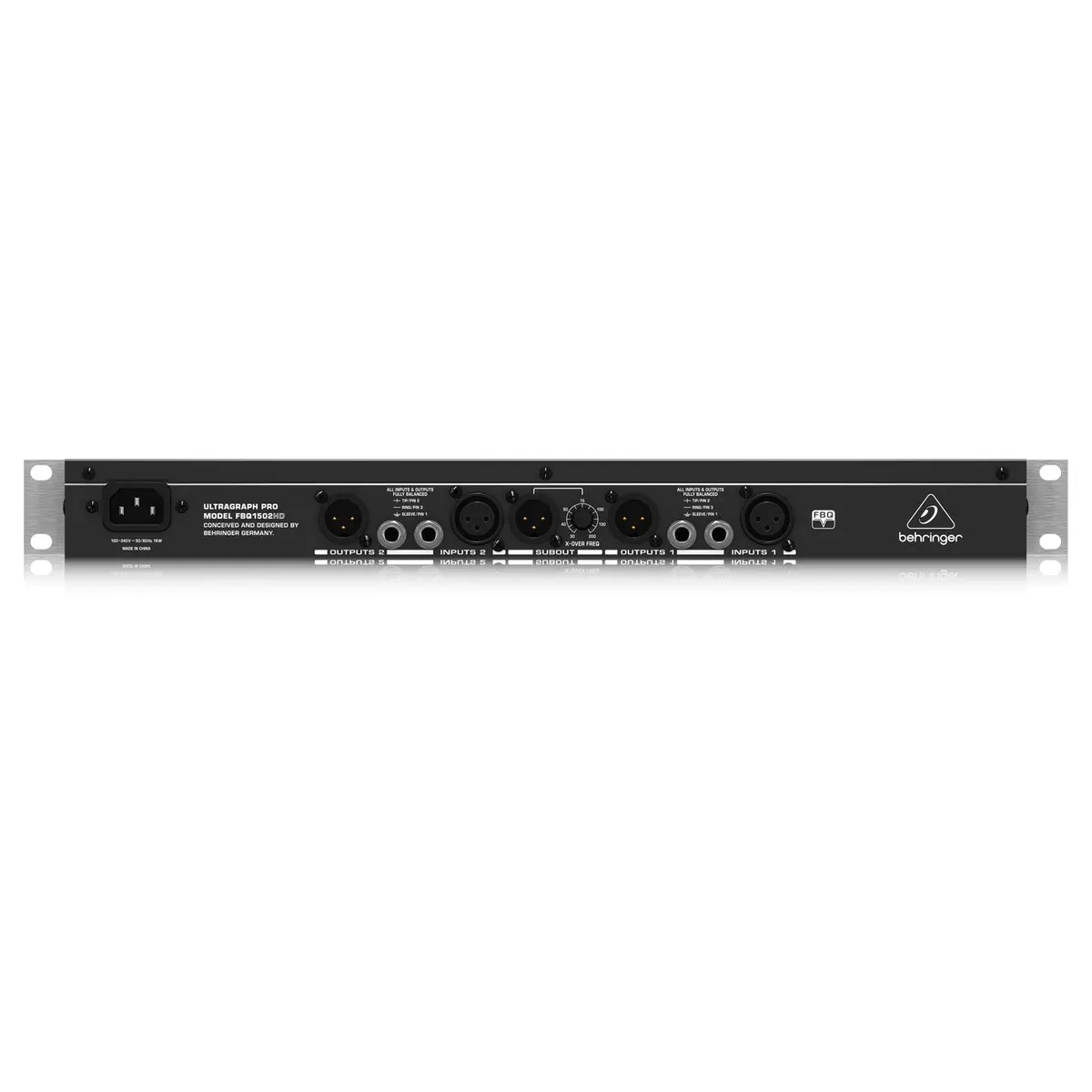

- Servo-balanced inputs and outputs with 1/4″ TRS and gold-plated XLR connectors
- “Planet Earth” switching power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
- Designed and engineered in Germany
Spesifikasi
| System | |
| Frequency Response | 10Hz to 30kHz ±3.0dB |
| Frequency Range | 10Hz to 200kHz +0/-3dB |
| S/N Ratio | 22Hz to 22kHz > 94dB @ +4dBu |
| Distortion THD | 0.008% @ +4dB input 1kHz Unity Gain |
| Crosstalk | Typ. -90dB @ 1kHz |
| Audio Inputs (L/R) | |
| Type | RF Filtered, Servo-balanced XLR and 6mm (1/4″) TRS |
| Impedance | 40KΩ balanced & unbalanced |
| Max Input Level | +21dBu balanced & unbalanced |
| CMRR (Common Mode Rejection Ratio) | Typical. 55dB > 40dB @ 1kHz |
| Audio Outputs | |
| Main L/R | Servo-balanced XLR and 6mm (1/4″) TRS |
| Sub Woofer | balanced XLR |
| Cross-over Frequency | variable, 30-200Hz |
| Roll-Off Filter Section | |
| Type | 12dB / Oct., Butterworth |
| Input | ±15dB, variable |
| Low Cut | @ 25Hz, switchable |
| Graphic Equalizer | |
| Type | Analogue 15 band |
| Frequency Range | 25Hz to 26kHz in 15 2/3 Octave sreps (ISO) |
| Control Range | ±6dB or ±12dB Switchable |
| Power | |
| Power Consumption | 18 Watts |
| Supply Voltage | AC – 100-240V~ 50/60Hz |
| Physical Specs | |
| Weight: | 1.7 kg (3.7 lb) |
| Dimensions: | Width: 482.6mm (19″) Depth: 217mm (8-1/2″) Height: 44.5mm (1-3/4″) EIA – 1 U rack mount type |
