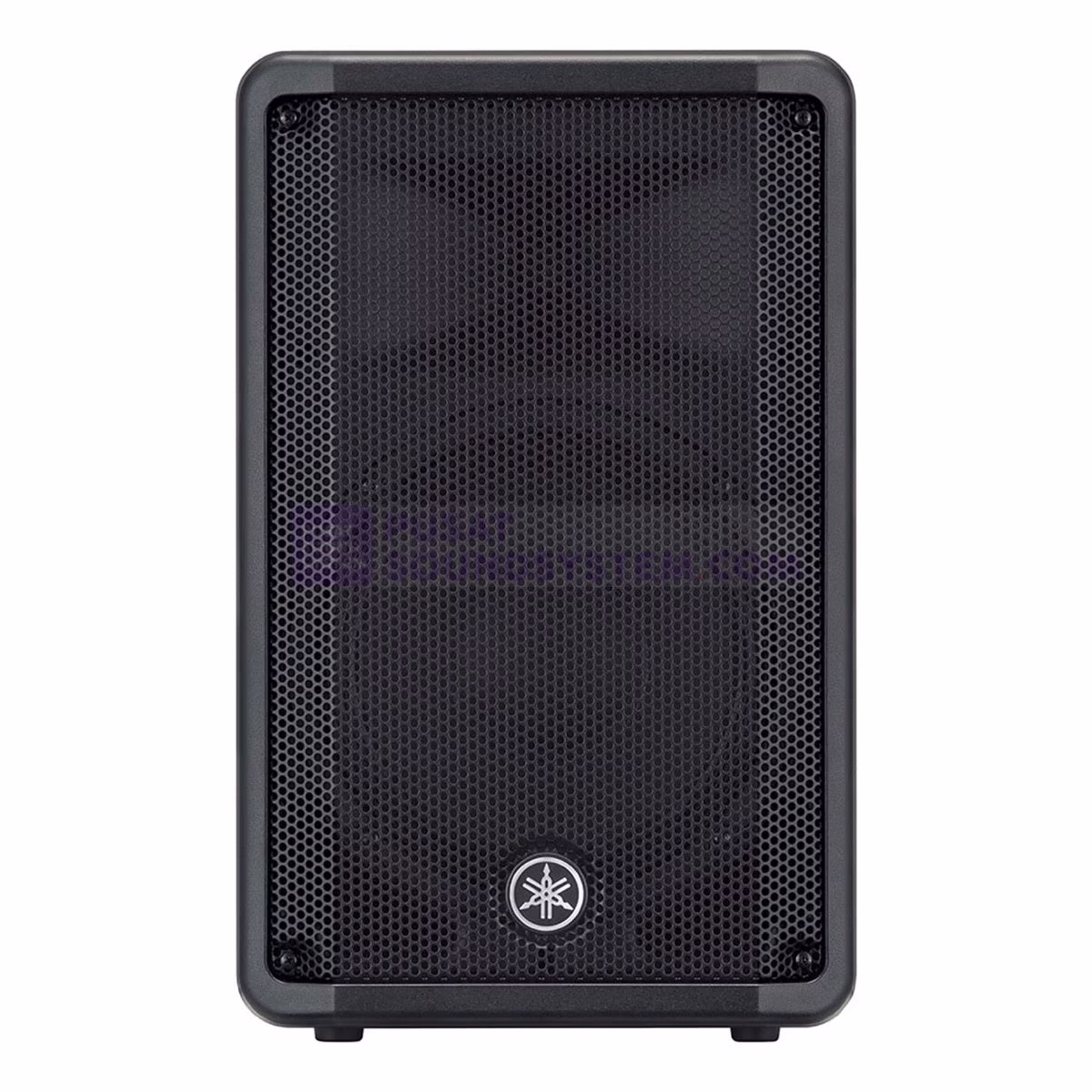

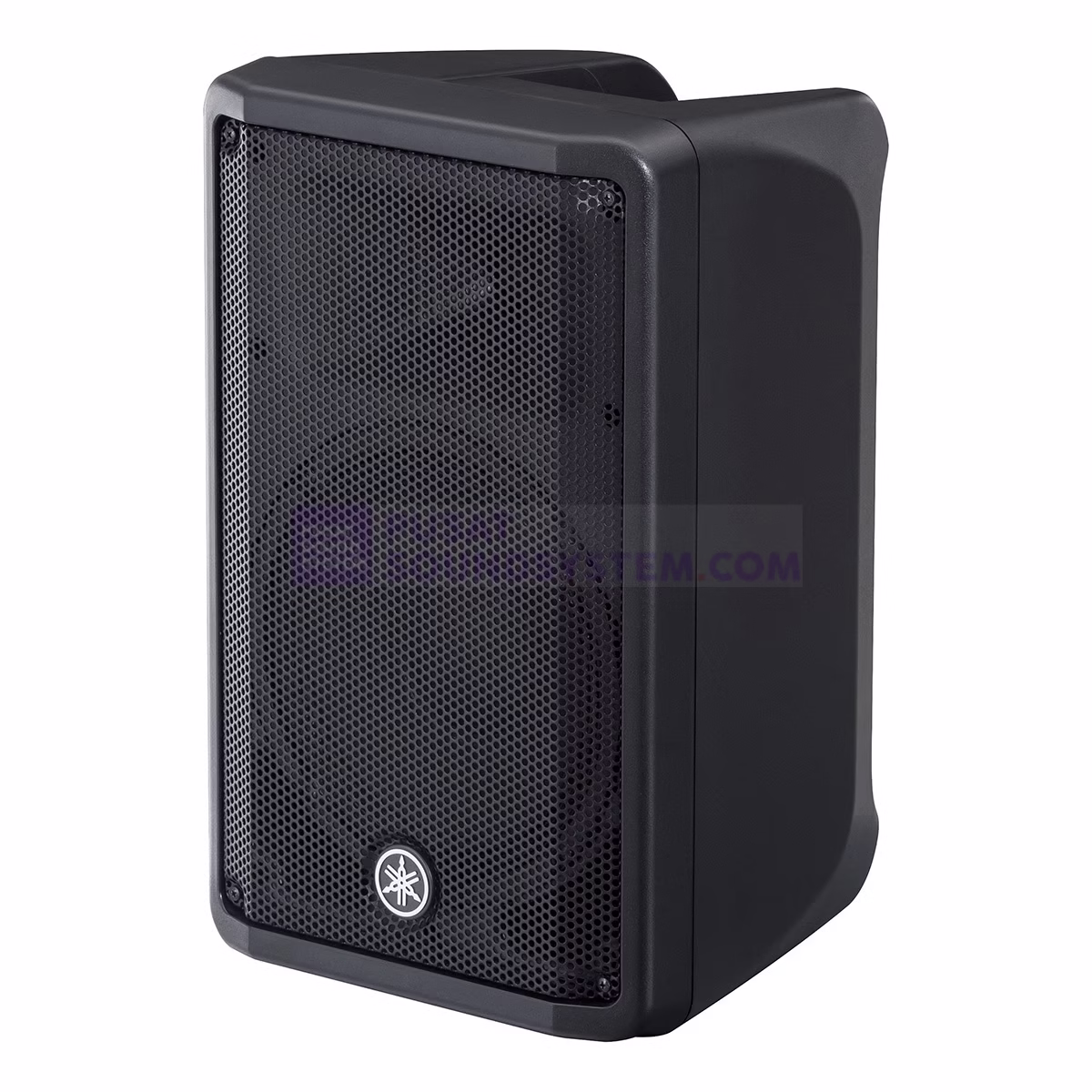

Yamaha CBR 10 Speaker Pasif 10-Inch 700-Watt
10″, 2-way Passive Speaker, 350W RMS Power Handling, with 10″ LF Driver and 1″ HF Driver
Description
The CBR10 is the most compact model in its series. While delivering astonishing power for its size and weight, the CBR10 is ideal for both portable and installed applications.
Yamaha CBR10 Features
- Passive loudspeaker with lightweight plastic cabinet
- Impressive 350W RMS power handling
- 1/4″ and speakON inputs for flexible connectivity
- HF-protection circuit prevents tweeter damage due to excessive signal levels
- Highly-sensitive LF driver puts out full bass even at lower volumes
Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
CBR Series speakers come equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2.5” compression driver (CBR15) or 2”compression driver (CBR10 and CBR12), ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.
Great sound at any volume level
The Yamaha CBR10 puts out full, punchy sound at any volume level thanks to two specific components. An extremely sensitive LF driver puts out powerful bass even when you’re not driving the speaker hard. And when you do want to push your system to the max, an HF-protection circuit prevents excessive input signals from damaging the tweeter, so you get clear sound throughout the entire volume range.
Use as a main speaker or as a floor monitor
The CBR10 speakers feature an optimized 50° wedge angle for floor monitoring. The symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system for a larger and more defined sweet spot.
Spesifikasi Sekilas
- Powered:No
- LF Driver Size:1 x 10″
- HF Driver Size:1″
- Power Rating (Program):350W
- Peak Power Capacity:700W
- Impedance:8 ohms
- Inputs:1 x 1/4″, 1 x speakON
- Frequency Range:50Hz-20khz (-10 dB)
- Crossover Frequency:2.8kHz
- Maximum Peak SPL:123dB
- Horizontal Coverage Angle:90 Degrees
- Vertical Coverage Angle:60 Degrees
- Enclosure Material:Plastic
- Mounting Options:Pole Mount with 1.37″ socket, 3 x M8 Fly Points
- Height:19.4″
- Width:12.1″
- Depth:11.4″
- Weight:20.7 lbs.
- Manufacturer Part Number:CBR10
Additional information
| Warna | Hitam |
|---|
Spesifikasi
| General specifications | CBR10 | |
|---|---|---|
| Speaker type | 2-way Speaker, Bass-reflex Type | |
| Frequency range (-10dB) | 50 Hz – 20 kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | 10″ Cone, 2″ Voice Coil (Ferrite Magnet) |
| HF | 1″ Voice Coil, Compression Driver (Ferrite Magnet) | |
| Crossover | 2.8 kHz | |
| Power rating | NOISE | 175W |
| PGM | 350W | |
| PEAK | 700W | |
| Nominal impedance | 8Ω | |
| SPL | Sensitivity (1W; 1m on axis) | 94dB SPL |
| Peak (Calculated) | 123 dB SPL | |
| I/O connectors | 1/4″ Phone x 1, speakON NL4MP x 1 | |
| Cabinet material | Plastic | |
| Finish | Black | |
| Handle | Top x 1 | |
| Flying and mounting hardware | Bottom x 2 (Fit for M8 x 15mm Eyebolts) | |
| Pole socket | Φ35 mm Bottom x 1 | |
| Dimensions | W | 308mm (12.1″) |
| H | 493mm (19.4″) | |
| D | 289mm (11.4″) | |
| Net weight | 9.4 kg (20.7 lbs) | |
| Accessories | Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400 | |
