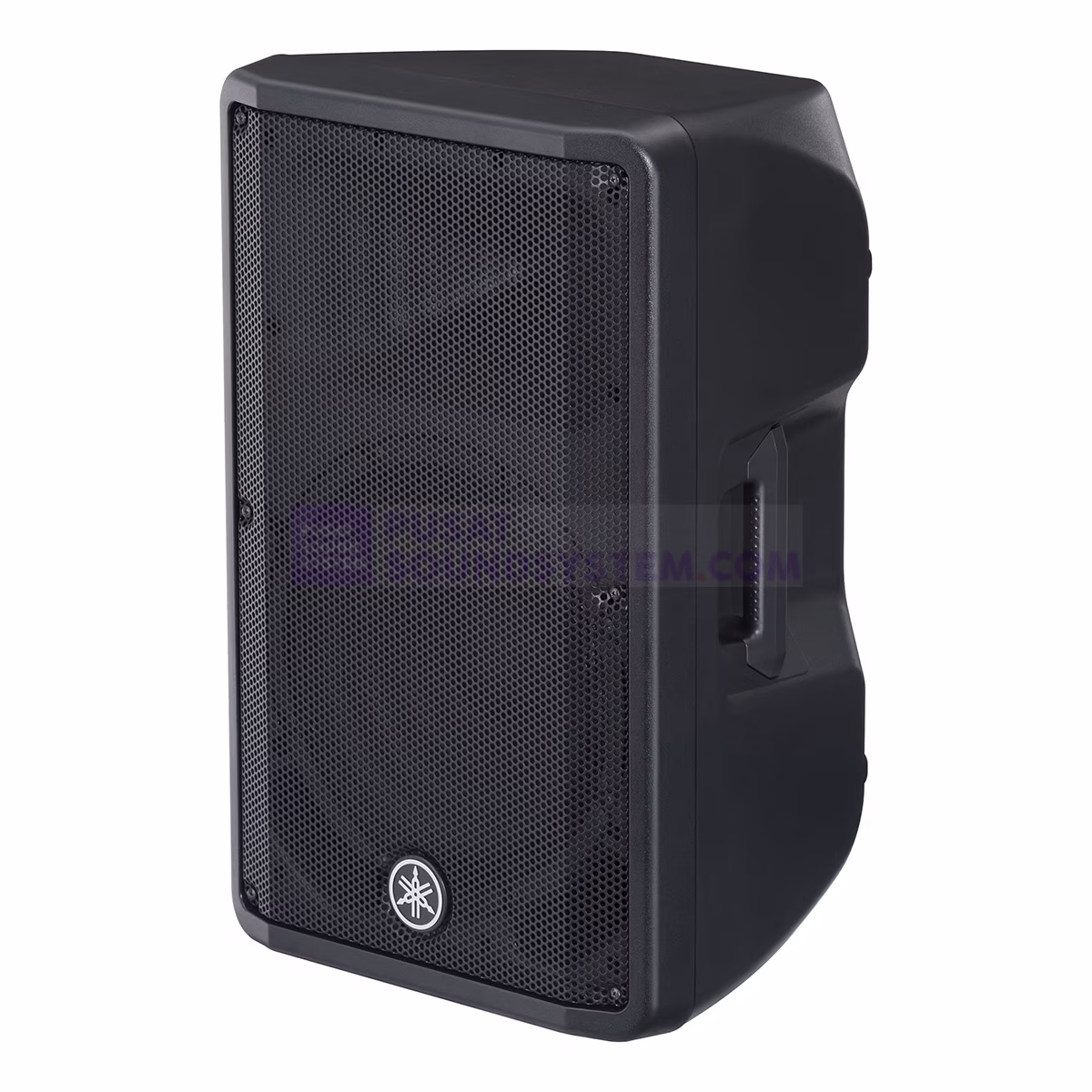

Yamaha CBR12 Speaker Pasif 12-Inch 700-Watt
12″, 2-way Passive Speaker, 350W RMS Power Handling, with 12″ LF Driver and 1.4″ HF Driver
Description
The CBR12 represents a perfect balance of size and performance. Ideal for front-of-house, floor monitoring or even rigged applications, the CBR12 is an ideal choice for a wide range of applications.
Yamaha CBR12 Features
- Passive loudspeaker with lightweight plastic cabinet
- Impressive 350W RMS power handling
- 1/4″ and speakON inputs for flexible connectivity
- HF-protection circuit prevents tweeter damage due to excessive signal levels
- Highly-sensitive LF driver puts out full bass even at lower volumes
Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound
CBR Series speakers come equipped with carefully selected and customized transducers that feature a highly responsive woofer and a precise 2.5” compression driver (CBR15) or 2”compression driver (CBR10 and CBR12), ensuring consistent high-definition sound with minimal distortion even at high output levels. Additionally, a newly designed wide-dispersion constant directivity horn minimizes the radiation pattern deterioration in oblique directions that more conventional horns are prone to, allowing sound to expand in a more rectangular pattern, evenly dispersing wide-frequency sound to the outer-most edges of the coverage area.
Great sound at any volume level
The Yamaha CBR12 puts out full, punchy sound at any volume level thanks to two specific components. An extremely sensitive LF driver puts out powerful bass even when you’re not driving the speaker hard. And when you do want to push your system to the max, an HF-protection circuit prevents excessive input signals from damaging the tweeter, so you get clear sound throughout the entire volume range.
Use as a main speaker or as a floor monitor
Yamaha designed the CBR12’s cabinet with a 50-degree wedge angle. This allows you to place the speaker on its side and angle it up for use as a stage monitor. Especially if you’re equipping your school or church with PA gear, you’ll appreciate the dual-function versatility of the Yamaha CBR12.
Spesifikasi Sekilas
- Powered:No
- LF Driver Size:1 x 12″
- HF Driver Size:1.4″
- Power Rating (Program):350W
- Peak Power Capacity:700W
- Impedance:8 ohms
- Inputs:1 x 1/4″, 1 x speakON
- Frequency Range:45Hz-20khz (-10 dB)
- Crossover Frequency:2.1kHz
- Maximum Peak SPL:125dB
- Horizontal Coverage Angle:90 Degrees
- Vertical Coverage Angle:60 Degrees
- Enclosure Material:Plastic
- Mounting Options:Pole Mount with 1.37″ socket, 3 x M8 Fly Points
- Height:23.7″
- Width:14.8″
- Depth:13.7″
- Weight:30.6 lbs.
- Manufacturer Part Number:CBR12
Additional information
| Warna | Hitam |
|---|---|
| Sistem Speaker | 2 Way |
| Impendansi | 8 Ohm |
Spesifikasi
| General specifications | CBR12 | |
|---|---|---|
| Speaker type | 2-way Speaker, Bass-reflex Type | |
| Frequency range (-10dB) | 48 Hz – 20 kHz | |
| Nominal coverage | H | 90° |
| V | 60° | |
| Components | LF | 12″ Cone, 2″ Voice Coil (Ferrite Magnet) |
| HF | 1.4″ Voice Coil, Compression Driver (Ferrite Magnet) | |
| Crossover | 2.1 kHz | |
| Power rating | NOISE | 175W |
| PGM | 350W | |
| PEAK | 700W | |
| Nominal impedance | 8Ω | |
| SPL | Sensitivity (1W; 1m on axis) | 96dB SPL |
| Peak (Calculated) | 125 dB SPL | |
| I/O connectors | 1/4″ Phone x 1, speakON NL4MP x 1 | |
| Cabinet material | Plastic | |
| Finish | Black | |
| Handle | Side x 2 | |
| Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) | |
| Pole socket | Φ35 mm Bottom x 1 | |
| Dimensions | W | 376mm (14.8″) |
| H | 601mm (23.7″) | |
| D | 348mm (13.7″) | |
| Net weight | 13.9 kg (30.6 lbs) | |
| Accessories | Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400 | |
