Description

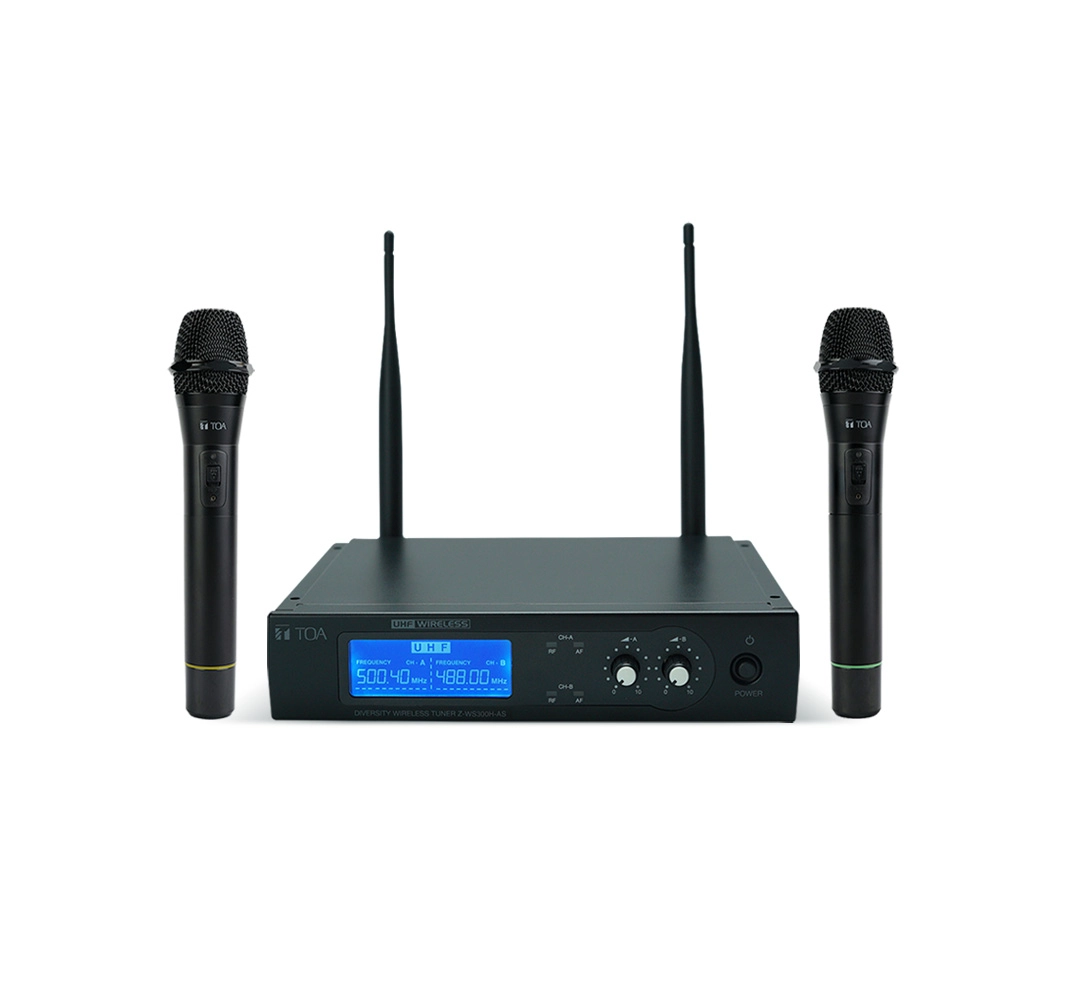

The TOA Z-WS300H-AS is a diverse wireless tuner that can accept up to two optional wireless tuner modules of UHF band
| Power Source | AC Adapter: 100 – 240 V AC, 50/60 Hz DC: 12 – 15 V |
|---|---|
| Power Consumption | 600 mA (13.5 V DC, when operating with two tuner modules) |
| Receiving Frequency | 488 MHz – 508 MHz |
| Audio Output | Mixed Audio: 0dB*, 8 kΩ, unbalanced, phone jack Balance A: 0 dB*, 10 kΩ, balanced, XLR-3-32 type connector Balance B: 0 dB*, 10 kΩ, balanced, XLR-3-32 type connector |
| Antenna | Fixed antenna |
| Indicator | RF-AF (CH-A), RF-AF (CH-B), Display |
| Signal to Noise Ratio | More than 80dB (A-weight, balanced output) |
| Harmonic Distortion | 1 % or less |
| Frequency Response | 45 Hz – 15 kHz |
| Distance | Up to 70 m (Open Space) |
| Operating Temperature | -10 °C to +50 °C (15 °F to 122 °F) |
| Finish | ABS Resin, Black |
| Dimensions | 200 (W) x 44 (H) x 184 (D) mm (7.87″ x 1.73″ x 7.24″) |
| Weight | 380 g (0.84 lb) (without microphone) |
| Accessories | AC adapter ..1, Mic Holder..2, Microphone Handheld ..2, Phone Jack Cable ..1 |
