Description

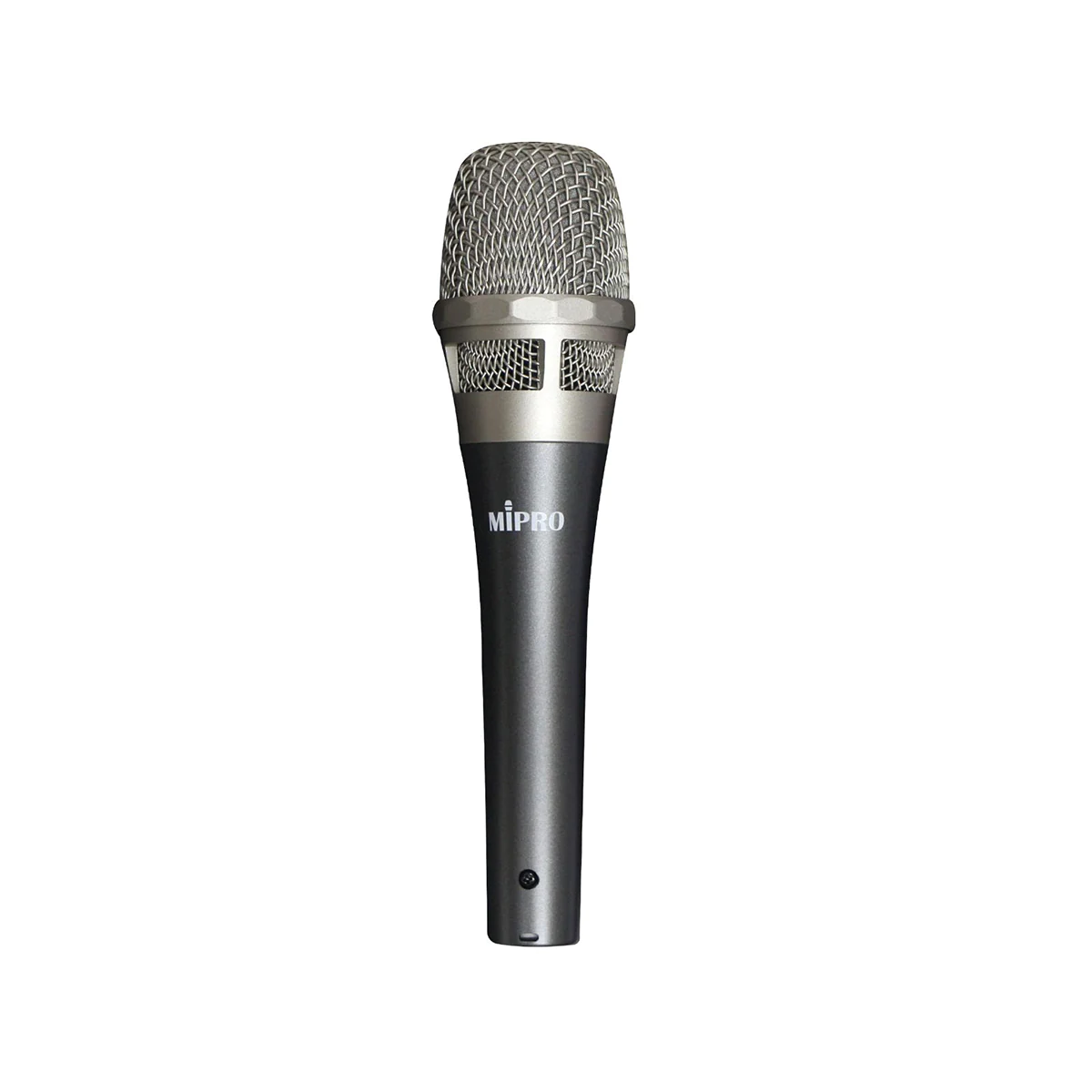

MM-90 equips an MU-90 premium supercardioid condenser capsule module and features superb directionality and feedback suppression. Sustains excessive volume without distortion. Ideal for professional singers in large live shows or those fields requiring optimal sound quality.
The MM-90 is fitted with a MU-90 capsule module. The exterior multi-layer metal grille protects the capsule to prevent impact pop noise. MM-90 requires external 12 – 48 V DC phantom power to achieve accurate sensitivity. It provides superb directionality and feedback suppression for a bright and detailed sound quality while their proprietary capsule suspension design eliminates vibrations and touch noises for a true natural sound reproduction. It is ideal for vocal, stage, broadcast, studio and music hall applications.
Features
- Superb directionality and feedback suppression.
- Sustains high SPL without distortion.
- The rugged grille protects the capsule against impact.
- Ultra-low handling and impact noise.
- Ideal for vocal, stage, broadcast, studio and music hall applications.
Spesifikasi
| Model | MM-90 |
|---|---|
| Name | Supercardioid Vocal Microphone |
| Capsule Module | MU-90 |
| Polar Pattern | Supercardioid |
| Capsule Installation | Interchangeable |
| Housing | Zinc alloy |
| Sensitivity | -47 dBV / Pa, switchable gain setting at -6 dB on the capsule |
| Frequency Response | 50 Hz – 18 kHz @ 94 dB SPL |
| Self-Noise | < 17 dBA SPL |
| S/N Ratio | > 77 dB @ 94 dB SPL |
| Max. SPL | 149 dB |
| Dynamic Range | 132 dB |
| Power Supply | External phantom power DC 12 – 48 V |
| Current Consumption | Approx. 2.0 mA |
| Output Impedance | < 200 Ω |
| Dimensions | 51 × 200 mm (Ø × L) |
| Weight | Approx. 410 g |
| Note | Refer to the actual product in the event of product description discrepancy |
