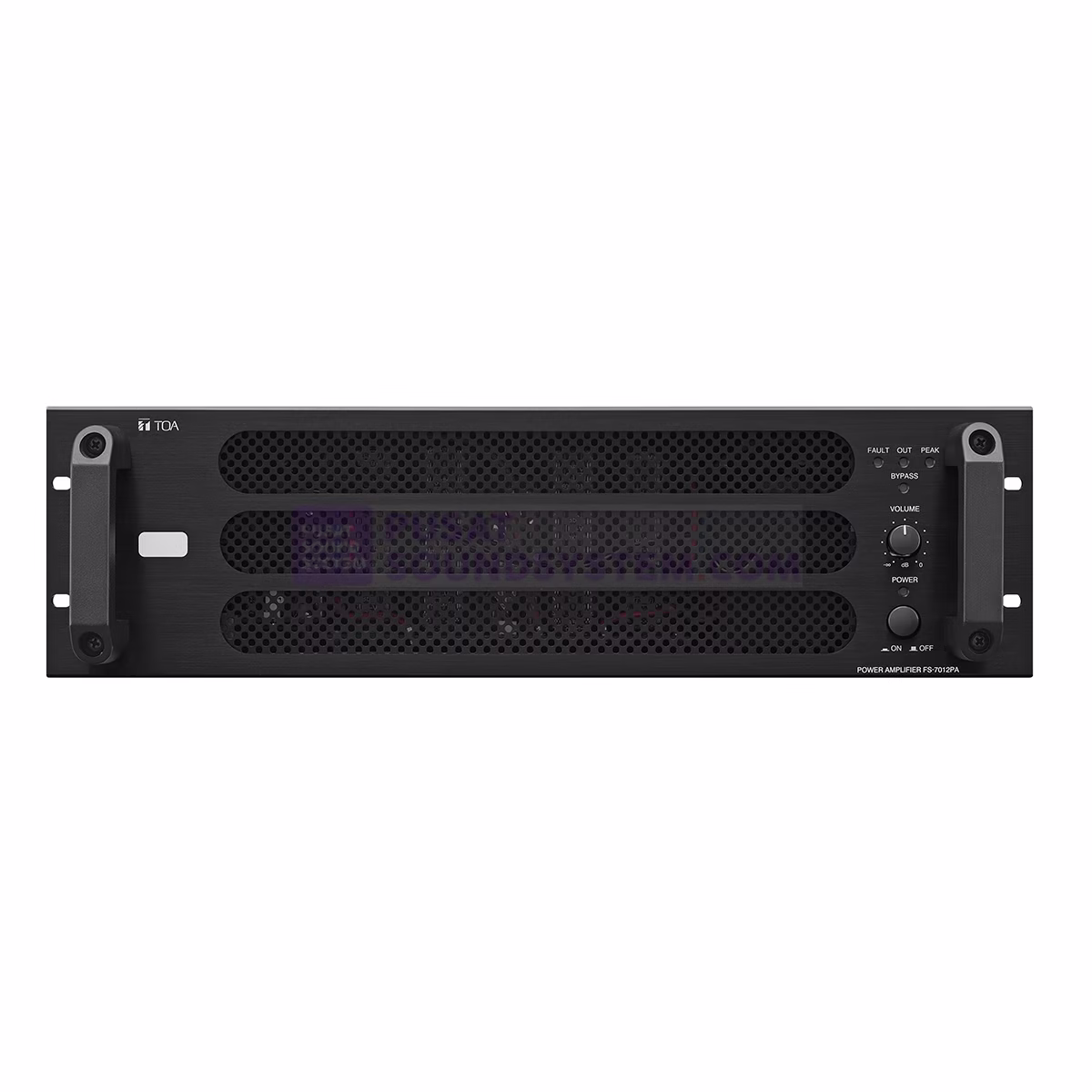

TOA FS-7012PA 1-Channel PA System Power Amplifier
1-Channel 1200Watt Power Amplifier
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
The FS-7012PA power amplifier with rated output power of 1200 W is designed to be used in conjunction with the FS-7000 Series Voice Evacuation System. Connecting a standby amplifier to the optional YA-7000 amplifier auto switching module installed in the FS-7012PA power amplifier allows the FS-7012PA amplifier to automatically switch over to the standby amplifier when the module detects the power amplifier’s failure.
| Power Source | 230 V AC, 50 Hz |
|---|---|
| Power Consumption | 2130 W (2670 VA) (at rated output), 750 W (950 VA) (IEC 65), 58 W (110 VA) (at no signal), 13 W (14 VA) (standby) |
| Input | 0 dB*, 10 kΩ, transformer-balanced, removable terminal block (3 pins) |
| Rated Output | 1200 W |
| Load Impedance | 100 V line, 8.3 Ω, M4 screw terminal, distance between barriers: 9 mm |
| Frequency Response | 80 – 15,000 Hz , within ±3 dB (1 kHz) |
| Distortion | Under 0.1% (at 1 kHz rated output) |
| S/N Rated | Over 90 dB, 20 – 20,000 Hz band pass |
| Control Input | Volume control bypass control input: No-voltage make contact input, open voltage: Under 24 V DC, short-circuit current: Under 10 mA, removable terminal block (2 pins) |
| Indicator | Power (green), Signal (green), Peak (red), Fault (red), Bypass (orange) |
| Cooling | Forced air cooling (Under 50℃: Stop, 50℃ – 75℃: Low to high speed (variable), Over 75℃: High speed) |
| Operating Temperature | 0℃ to +40℃ |
| Operating Humidity | Under 90% RH (no condensation) |
| Finish | Panel: Aluminum, black, Alumite |
| Dimensions | 482 (W) × 132.6 (H) × 532.7 (D) mm |
| Weight | 35.4 kg |
| Accessory | Terminal cover …1, Terminal cover mounting screw …2, Removable terminal plug (2 pins) …2, Removable terminal plug (3 pins) …2 |
| Option | Amplifier auto switching module: YA-7000 |
