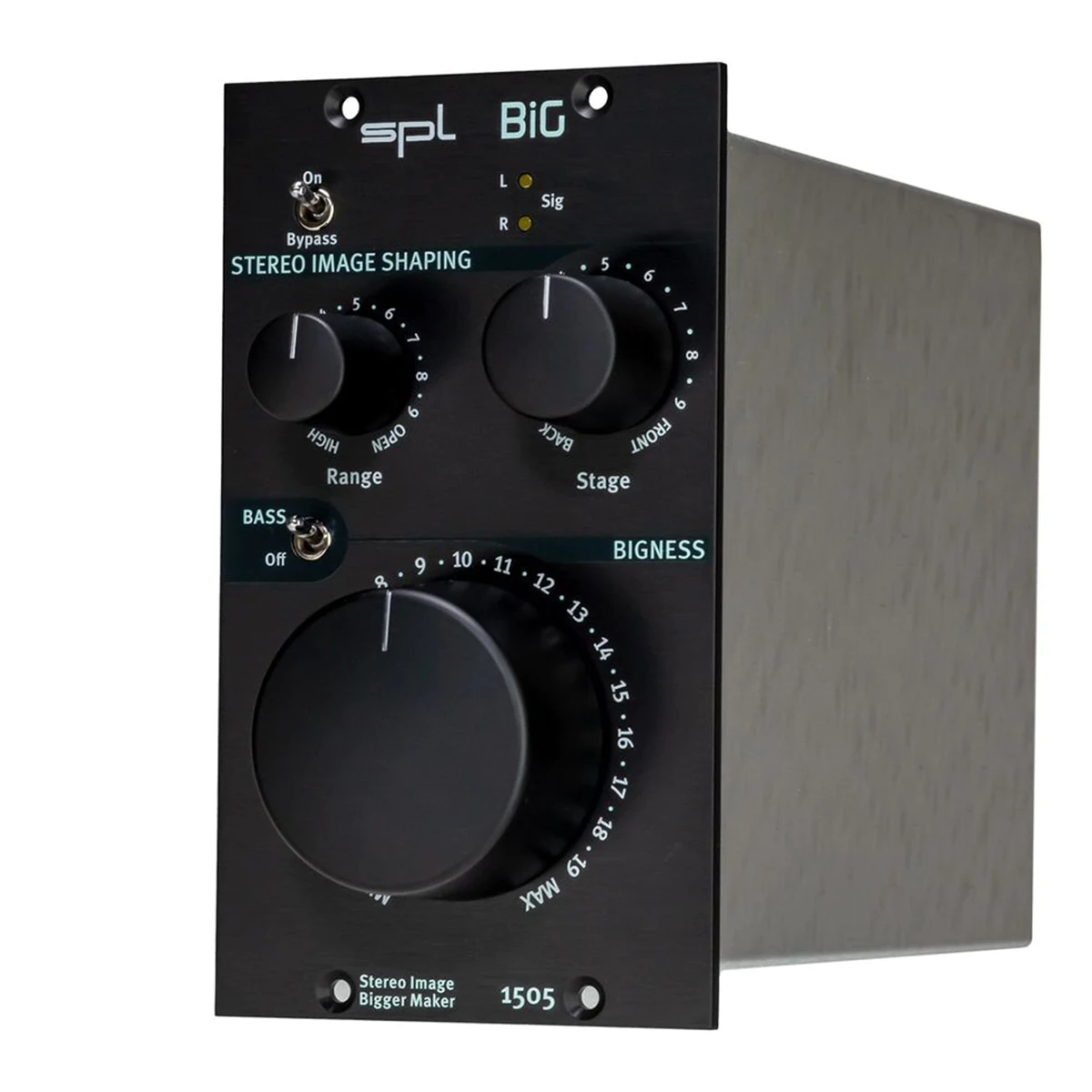

SPL BiG 500 Series Stereo Image Processor

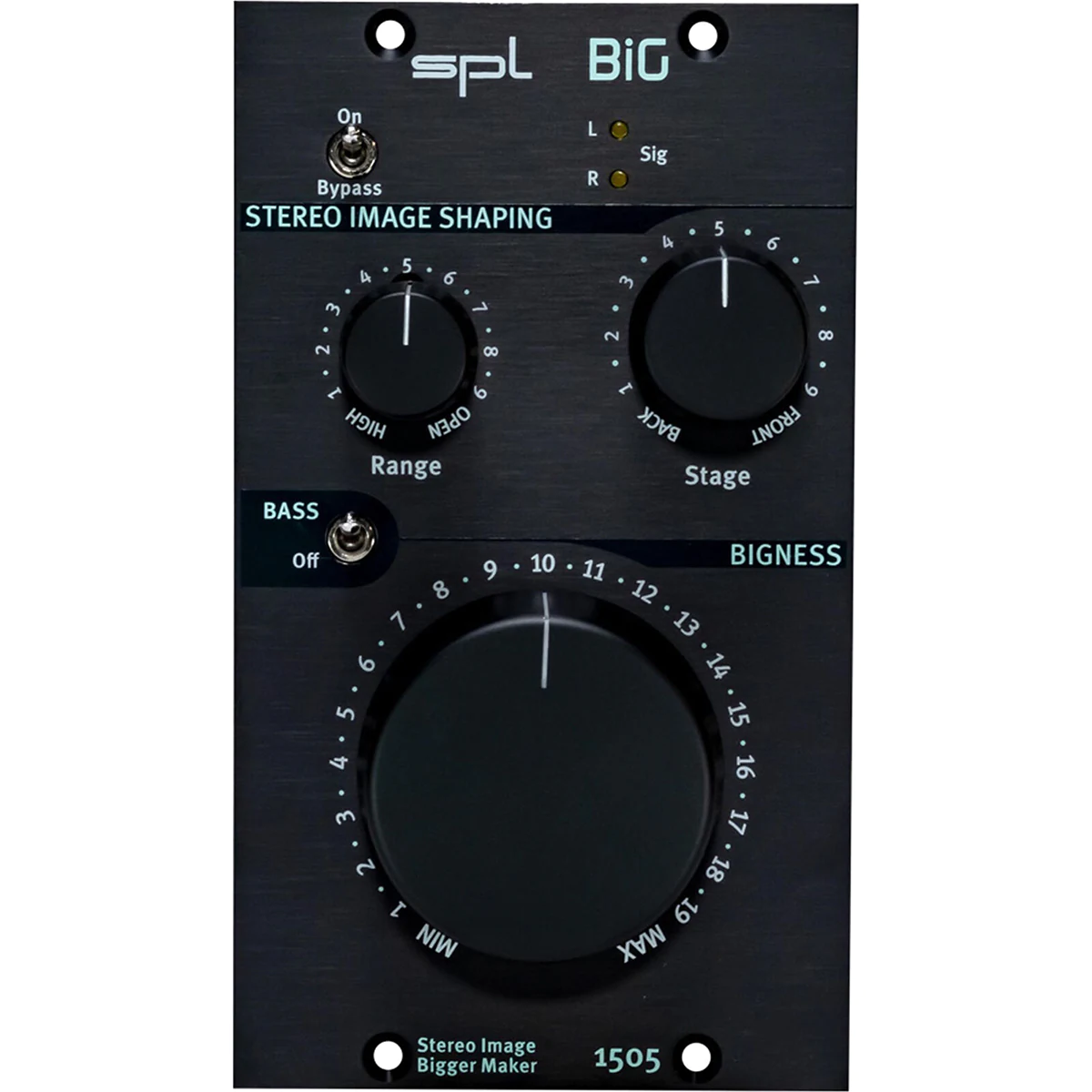

SPL BiG 500 Series Stereo Image Processor - Image 2

SPL BiG 500 Series Stereo Image Processor

500 Series Stereo Image Processor with Range, Stage, Bigness, and Bass Controls

Chat Penjual
Category: Brand:
Spl
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

BiG enlarges the stereo image in a new manner and opens up new creative ways of sound shaping. Intuitive with just three controls.

On/Bypass

The On/Bypass switch activates (On) or deactivates (Bypass) the module. This allows you to quickly switch between processed and unprocessed signal.

Signal LEDs

The signal LEDs (Sig) indicate whether an audio signal is present at the input of the respective channel. (With a level higher than -20 dBu)

Range

With the Range control, the frequency Range which should be processed can be selected.

Stage

With the Stage control, the frequency range previously selected with the Range control can be moved backwards or forwards on the stereo stage.

BIGNESS

The huge BIGNESS control adjusts the intensity of the STEREO IMAGE SHAPING.

BASS

The BASS/Off switch can be used to activate (BASS) or deactivate (Off) an additional bass boost following the
BIGNESS section. The bass boost is performed by a passive filter implemented in a similar circuit to the one used in the AirBass function of the SPL IRON Mastering Compressor.

Specifications

Input & Output; balanced

Maximum input & output gain 21 dBu
Input impedance 20 kΩ
Output impedance 150 Ω
Common mode rejection > 82 dB
Frequency range (-3 dB) 10 Hz – 100kHz
THD & N (0 dBu, 10 Hz – 22 kHz) 0.03 %
Noise (A-weighted) -92.3 dBu
Dynamic range 113 dB

Dimensions & Weight

Double-spaced module for 500 Series
Unit weight
0.9 kg
1.98 lbs
Shipping weight (incl. packaging)
1.05 kg
2.31 lbs

Reference: 0 dBu = 0,775V. All specifications are subject to change without notice.
