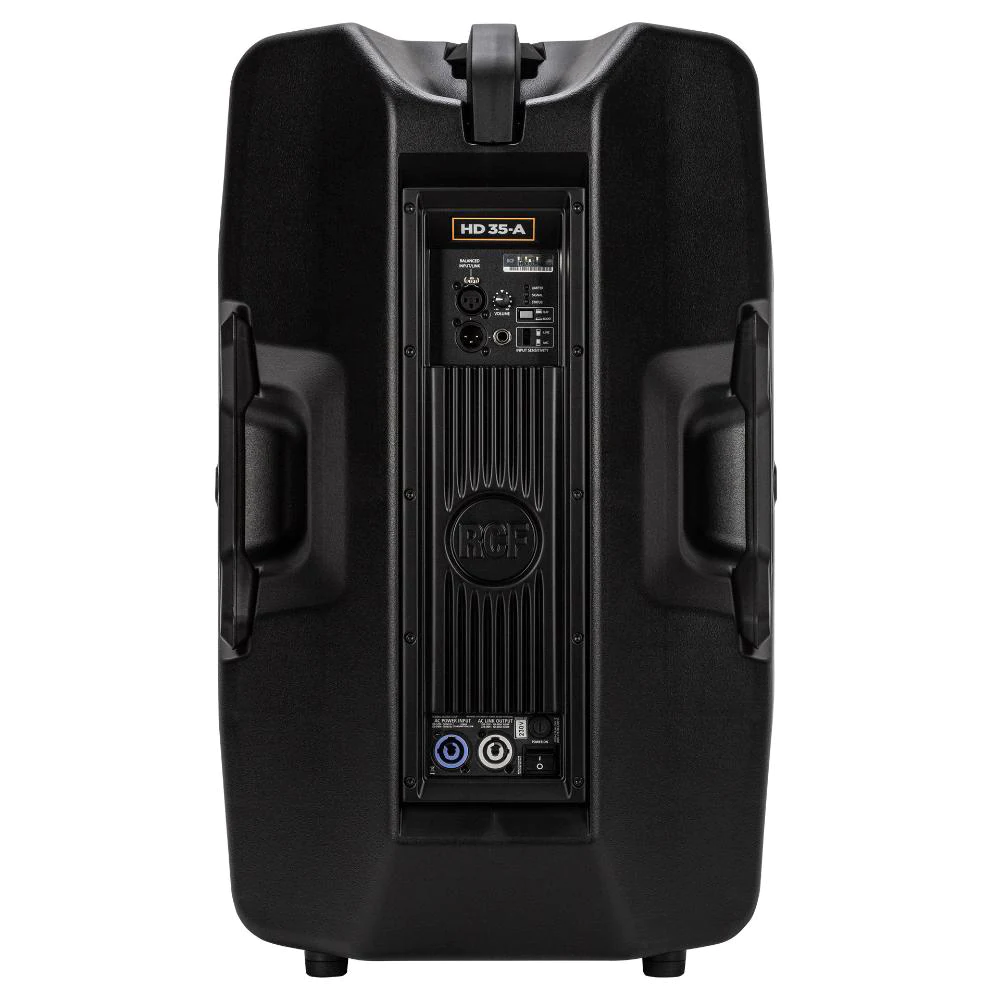

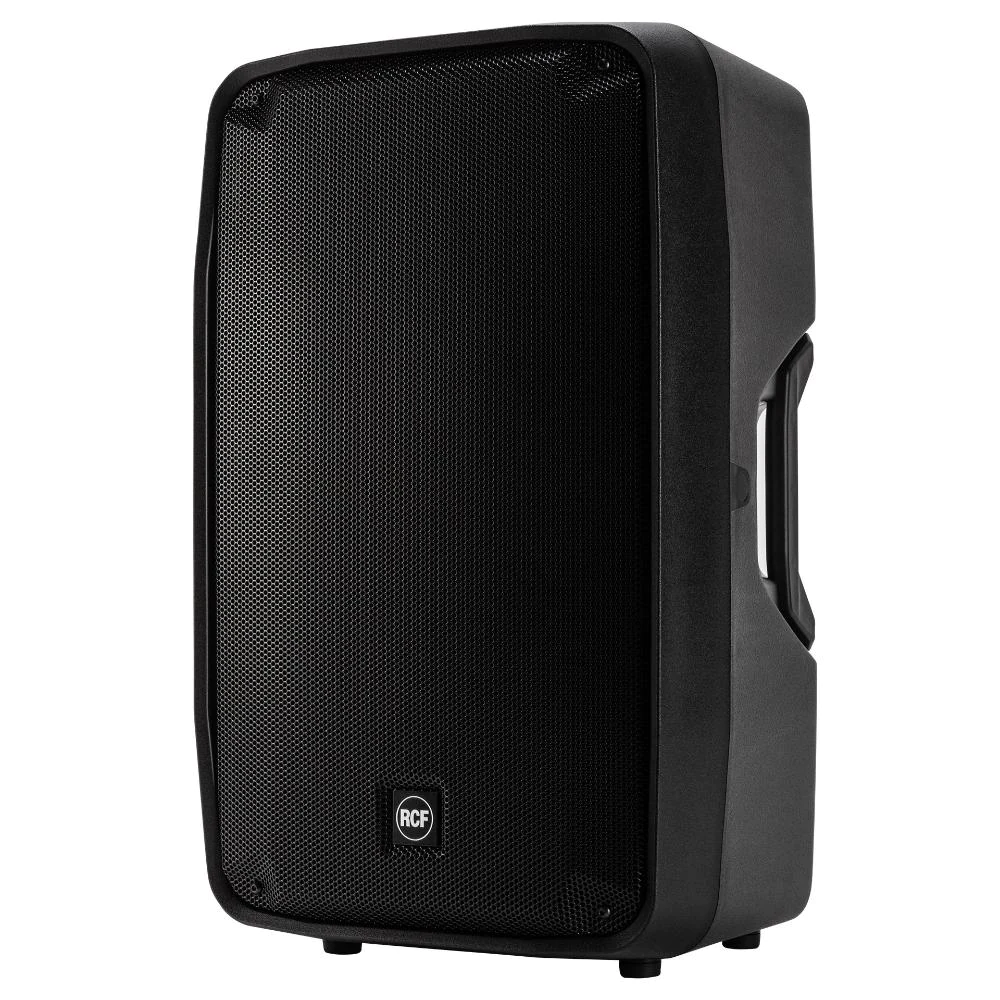

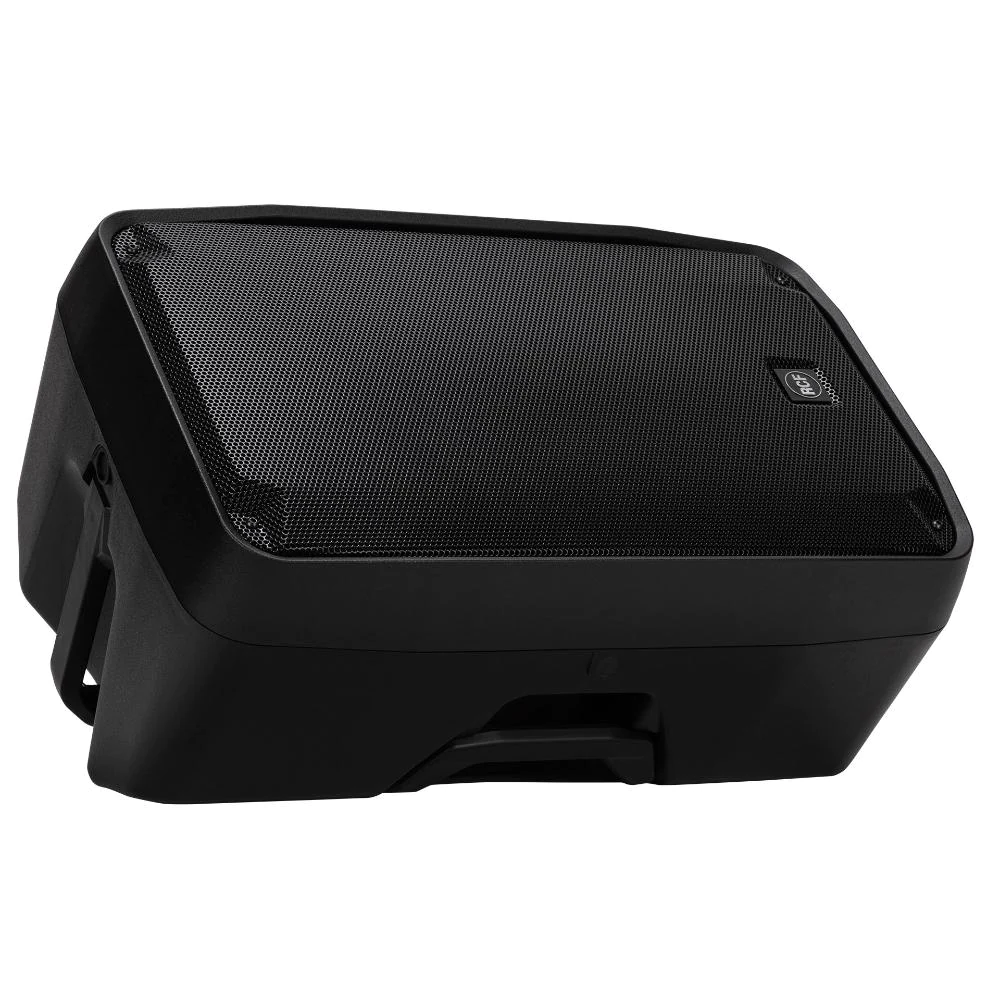

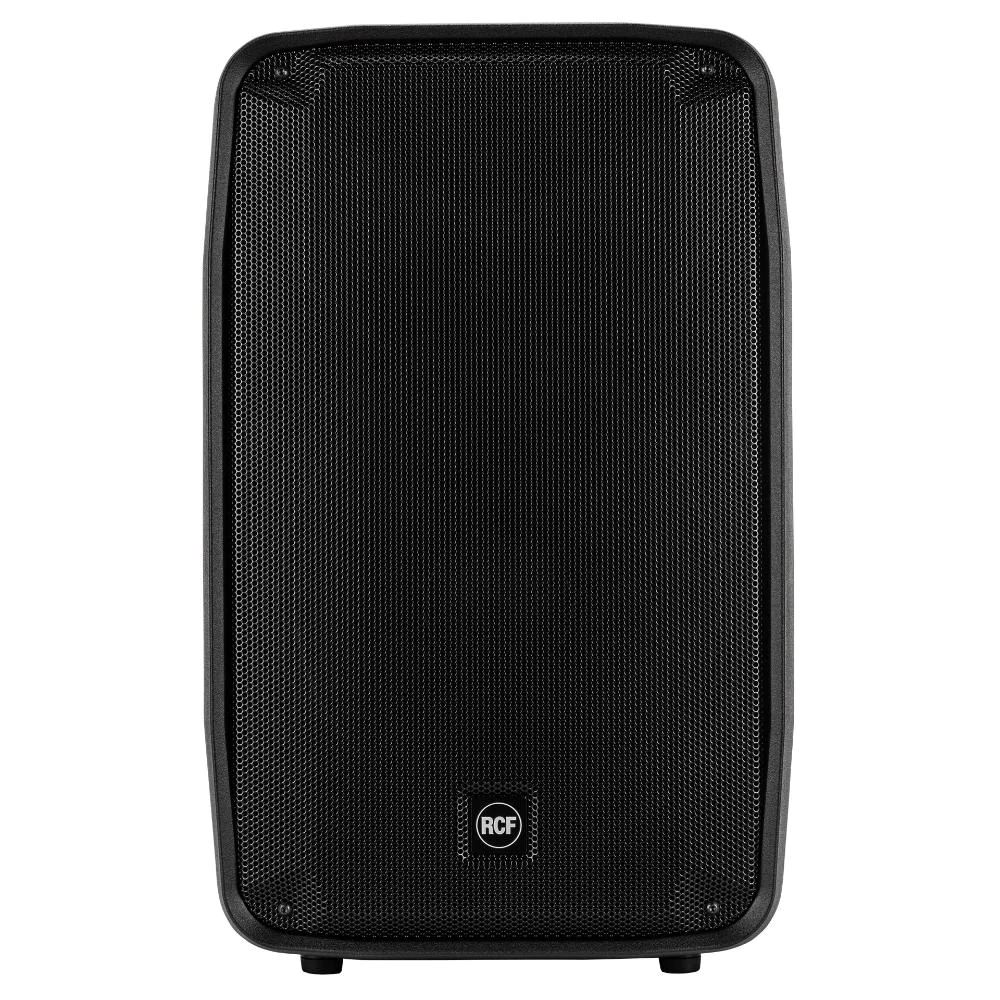

RCF HD35-A Speaker Aktif 15 Inch 2 Way 1400 Watt

Description

The titanium dome, voice coil neodymium compression driver offers unique vocal clarity and sound projection on the The titanium dome, 3.0″ voice coil neodymium compression driver offers unique vocal clarity and sound projection on the HD 35-A. The 15” woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalization, FiRPHASE, soft limiting, and speaker protection.

FEATURES

• 132 dB Max SPL
• 1400 Watts 2-way peak power
• DSP Processing with FiRPHASE
• 1.4” Titanium Compression Driver, 3.0” v.c. Neodimium
• 15” Woofer, high power
• 800 Hz crossover point for perfect vocal reproduction
• 90°x60°, wide dispersion constant directivity horn
• Silent Fanless Class-D Amplifier

Spesifikasi

• ACOUSTICAL SPECIFICATIONS
  • Frequency Response: 45 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 132 dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 60°
• TRANSDUCERS
  • Compression Driver:1.4”, 3.0” v.c
  • Woofer: 15”, 3.0” v.c
• INPUT/OUTPUT SECTION
  • Input signal: bal/unbal
  • Input connectors: XLR, Jack
  • Output connectors: XLR
  • Input sensitivity: -2 dBu/+4 dBu
  • Mic. Input Sensitivity: -32 dBu
• PROCESSOR SECTION
  • Crossover Frequencies: 800 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Volume, Boost, Mic/Line
• POWER SECTION
  • Total Power: 1400 W Peak, 700 W RMS
  • High frequencies: 400 W Peak, 200 W RMS
  • Low frequencies: 1000 W Peak, 500 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT
• PHYSICAL SPECIFICATIONS
  • Cabinet/Case Material: PP Composite
  • Hardware: 1 x M10 top, 1 x M10 bottom, 2 x M10 side
  • Handles: 1 Top, 2 Side
  • Pole mount/Cap: Yes
  • Grille: Steel
  • Color: Black
• SIZE
  • Height: 714 mm / 28.11 inches
  • Width: 442 mm / 17.4 inches
  • Depth: 397 mm / 15.63 inches
  • Weight: 22 kg / 48.5 lbs
• SHIPPING INFORMATION
  • Package Height: 750 mm / 29.53 inches
  • Package Width: 440 mm / 17.32 inches
  • Package Depth: 480 mm / 18.9 inches
  • Package Weight: 24.5 kg / 54.01 lbs
