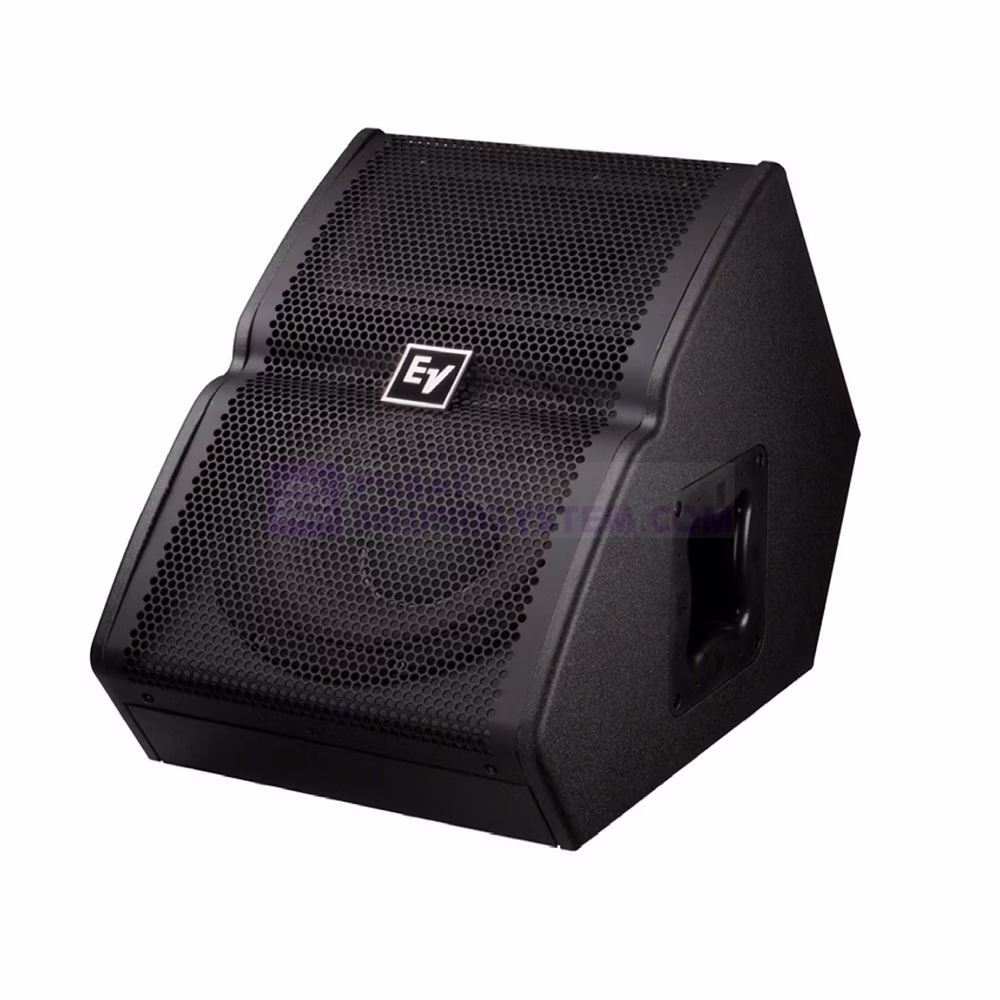

Electro Voice TX1122FM 12″ PASSIVE FLOOR MONITOR

12″ 2-Way Passive Vertical Floor Monitor with 90 x 50 Horn

Cek Harga

Description

The TX1122FM is a 12”, two-way passive floor monitor that’s ideal for small to medium stages. Its two-way, high-output design and vented low-frequency enclosure delivers full-range sound from a 12”, low-distortion SMX2121 woofer and 1-1/4” DH3/2010A titanium high-frequency compression driver. Signal Synchronized Transducers feature provides proper woofer/tweeter alignment, while the constant-directivity 90°H x 50°V horn ensures constant coverage onstage. Additional features include Neutrik Speakon paralleled pass-through connectors, integrated 24dB/octave crossover with HF protection, 99dB sensitivity, 132dB max SPL rating, and 500/2000W continuous/peak power handling.

  • Two-way, high-output design
  • Vented LF enclosure
  • Neutrik Speakon paralleled pass-through connectors
  • Two integrated handles
  • Ideal for small-to-medium stages
  • Signal Synchronized Transducers for woofer/tweeter alignment
  • Low-distortion SMX2121 woofer with fully symmetric drive
  • 1.25-inch DH3/2010A titanium HF compression driver
  • Constant-directivity 90º H x 50º V horn
  • Integrated 24 dB/octave crossover with HF protection
  • 99 dB sensitivity, 132 dB maximum SPL
  • Power handling: 500 W continuous, 2000 W peak
  • Black EVCoat finish

Spesifikasi

Frequency Range (-10 dB) 55 – 20000kHz
Flying No
Minimum Impedance 6.4Ω

SPECIFICATIONS

Nominal Impedance (Passive)
HF Transducer DH3
Speaker Type Monitor
Woofer Size 12inch
Powered or Passive Passive
Frequency Response (-3 dB)¹ 70 – 20000Hz
Max. SPL/1m (calc)² 132dB
Coverage (Nominal -6 dB) H 90°
Coverage (Nominal -6 dB) V 50°
LF Transducer SMX2121
Power Rating 2000W
System Power Handling (Continuous/Program/Peak) 500Watts
Rotatable Horn No
Crossover Frequency 1600Hz
Enclosure Material Ply Wood and MDF with EVCOAT
Available Color Black
Sensitivity 1 W/1 m 99dB
Height 17.32″ (440mm)
Recommended High-Pass Frequency 60Hz
Width 14.33″ (364mm)
Depth 22.56″ (573mm)
Internal Crossover Yes
Weight Net 43.65lbs (19.8kg)
Family Tour X
Input Connections Parallel Neutrik® NL4
