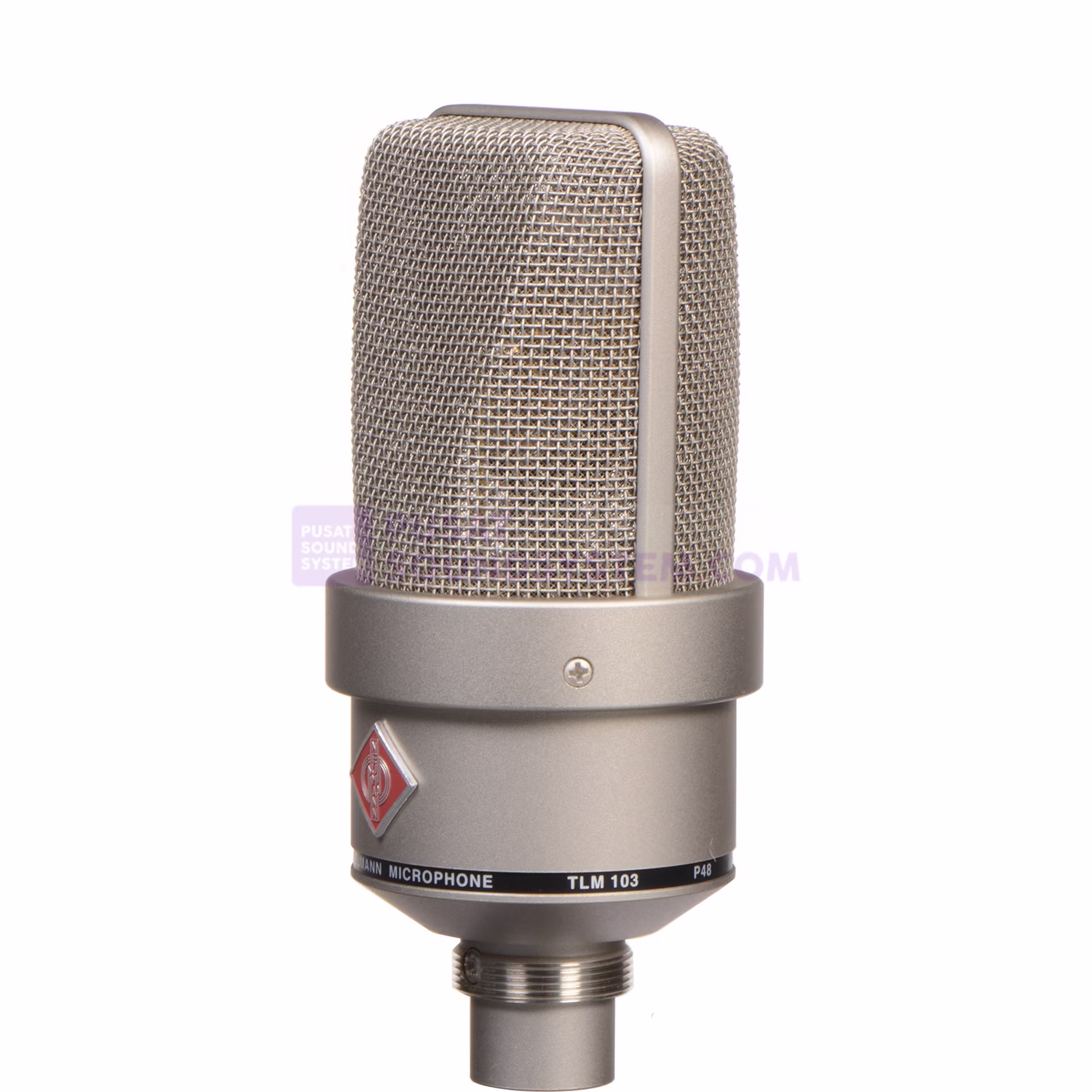

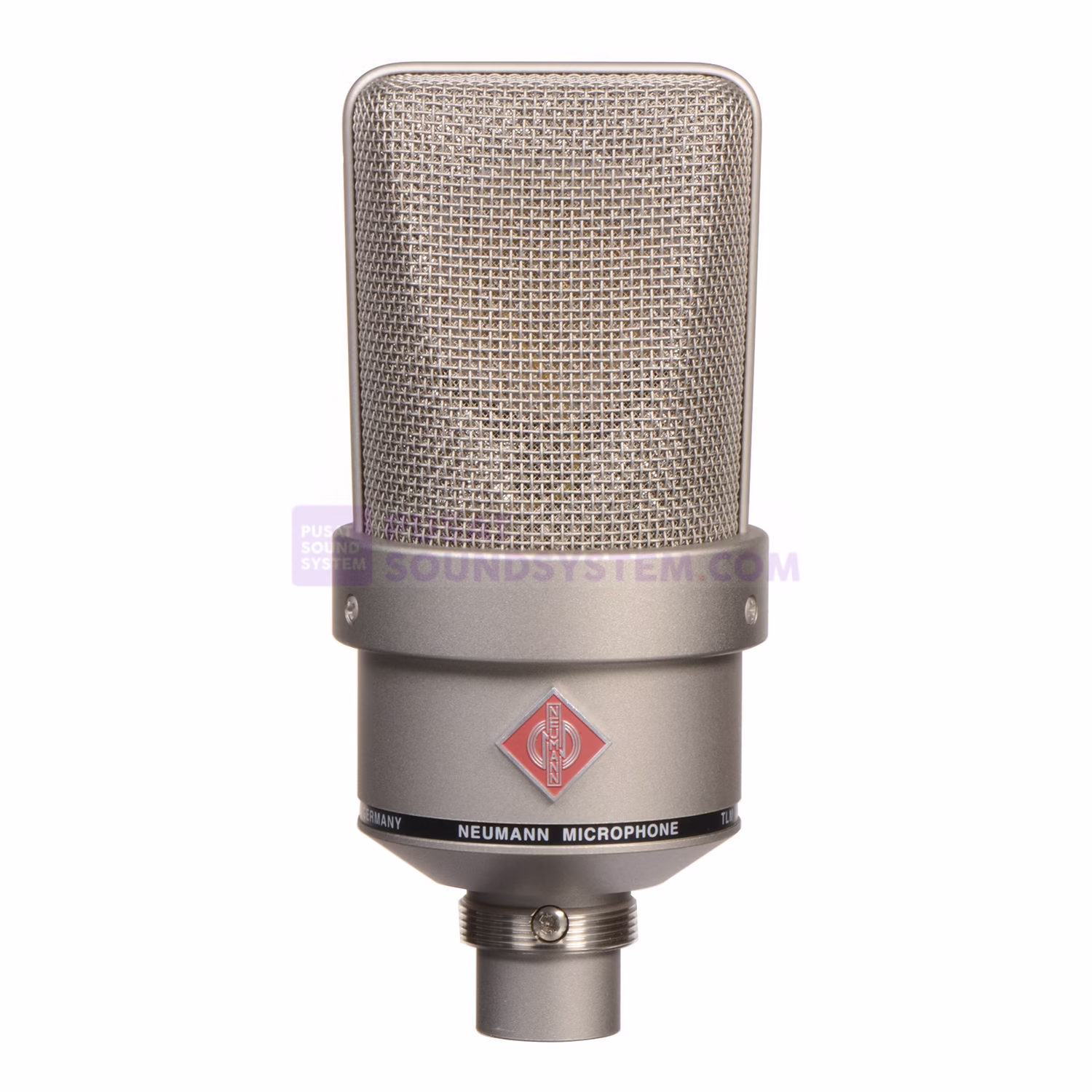

Neumann TLM 103 Mic Recording Condenser Cardioid

Large-diaphragm Cardioid Microphone in Wooden Jeweler’s Box with 20Hz-20kHz Frequency Range

Categories: Mic Condenser, Mic Kabel, Mic Recording, Mic Vocal Tags: Mic Neumann, Mic Recording Condenser, Mic Recording Neumann, Mic Vocal Recording

Cek Harga

Description

The Neumann TLM 103 large-diaphragm cardioid condenser mic boasts a capsule drawn from the U 87 and transformerless circuitry — not to mention classic Neumann sound! The TLM 103 is a great mic for any pro or project studio use and, due to its minimal self-noise, it’s been used for classical recordings with a wide dynamic range, sampling (especially for very low amplitude sources), and Foley work. This mic is also robust enough for the live stage, as Jack White has employed the TLM 103 to mic amps in live situations.

Cardioid pattern to limit bleedThe cardioid TLM 103 utilizes a tried-and-true transformerless circuit found in high-end Neumann microphones to achieve its otherwise unattainable low self-noise and the highest sound pressure level transmission possible. By focusing on this pattern — used in most recording situations — the attenuation of unwanted rear sound has been optimized. Off-axis sounds are rendered naturally while isolation is increased. This also leads to a high feedback suppression when the microphone is used in live situations or where loudspeaker playback is a factor. And at this price, there’s no reason not to have a pair!

Classic design for transparent soundThe TLM 103 is addressed from the front, marked with the red Neumann logo on the microphone body. The K 103 large diaphragm capsule is based on the K 87, well known from the U 67 / U 87 microphones.The capsule has a flat frequency response up to about 5kHz, and above that, a wide flat 4dB presence boost. The large wire mesh headgrille protects the capsule from plosive sounds and effectively prevents pop noises. These characteristics are achieved without resorting to corrective resonance effects. Therefore, the TLM 103 maintains an excellent impulse response and reproduces the details of music and speech without coloration. With the incredibly low self-noise level of the TLM 103 even the smallest signals are reproduced basically noise-free. As it is capable of handling sound pressure levels up to 138dB without distortion, the TLM 103 provides a dynamic range of 131dB (A-weighted).

Neumann’s “TLM” technologyThe letters TLM stand for “transformerless microphone”. With TLM technology the usual output transformer is replaced by an electronic circuit. As with traditional transformers, it ensures good common mode rejection and prevents RF interference that may influence the balanced audio signal.

Neumann TLM 103 Features:

Nickel finish
Large-diaphragm cardioid condenser microphone
Pressure gradient transducer with one-diaphragm capsule
Transformerless circuitry
Extremely low noise
Includes swivel mount
Minimal self-noise
Frequency range: 20Hz-20kHz
Rated impedance: 50 ohms
Rated load impedance: 1 kohms
Maximum SPL for 0.5% THD: 138dB
Wooden box and stand mount included
Requires +48V phantom power

Additional information

Koneksi	Kabel

Spesifikasi

Microphone

Form Factor	Stand/Boom Mount
Sound Field	Mono
Operating Principle	Pressure Gradient
Capsule	Condenser
Polar Pattern	Cardioid
Orientation	Side Address
Circuitry	Solid-State
Pad	None
High-Pass Filter	None
Tone Adjustment	None
Indicators	None
On-Board Controls	None
Windscreen	Built-In

Performance

Frequency Range	20 Hz to 20 kHz
Maximum SPL	138 dB SPL
Impedance	50 Ohms
Load Impedance	1 Kilohms
Sensitivity	23 mV/Pa at 1 kHz into 1 Kilohms
Output Level	13 dBu (Max)
Dynamic Range	127 dB A-Weighted
Signal-to-Noise Ratio	76.5 dB CCIR 87 dB A-Weighted
Equivalent Noise Level	7 dB A-Weighted 17.5 dB CCIR
THD	0.5%

Connectivity

Output Connectors (Analog)

1 x XLR 3-Pin (on Mic)

Power

Operating Voltage	48 V ± 4 V (Phantom Power)
Operating Current Consumption	3 mA

Physical

Color	Nickel
Construction Material	Brass, Steel Wire Grille
Dimensions	ø: 2.36 x L: 5.2″ / ø: 60 x L: 132 mm
Weight	15.87 oz / 450 g

Packaging Info

Package Weight	2.615 lb
Box Dimensions (LxWxH)	19.3 x 7.35 x 3.95″
