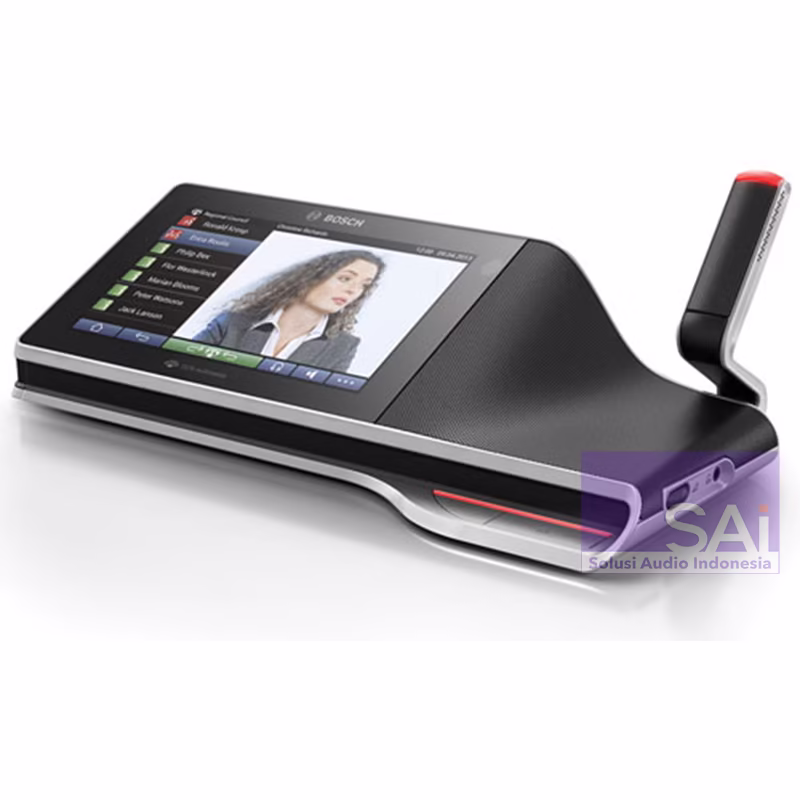

BOSCH DCNM MMD2 Chairman Delegate Unit

Our revolutionary DICENTIS Conference System integrates audio, video and meeting content with internet access in one single system and is based on the unique IP-based OMNEO media networking technology developed by Bosch.

Cek Harga
Share atau Bagikan :

Description

FEATURES

  • 7″ capacitive touchscreen for video, meeting content and internet access
  • Built‑in Near Field Communication (NFC) contactless tag reader
  • Unobtrusive pluggable microphone
  • Built‑in two‑way loudspeaker
  • Additional functionality via software licenses and third party/custom apps

SPECIFICATION

Screen size 7 inch, 1024 x 600 pixels
Screen type Capacitive multi touch
Operating system Android 4.03
Supported contactless NFC tag According to: ISO/IEC14443 Type A (from 106 kbps to 848 kbps. MIFARE 106kbps).
Supply voltage 48 Vdc IEEE 802.3 at Type 2
Power consumption 12 W
Frequency response 100 Hz – 20 kHz(-3 dB at nominal level)
THD at nominal level < 0.05 %
Dynamic range 96 dB (14‑110 dBSPL)
Signal-to-noise ratio 66 dB with respect to nominal level headroom 30 dB
Nominal microphone input 80 dB according IEC60914
Maximum microphone input 110 dB according IEC60914
External microphone nominal input -38 dBV
External microphone maximum input -25 dBV
Loudspeaker nominal output 72 dB SPL @ 0.5 m
Loudspeaker maximum output 90 dB SPL
Headphone nominal output -9 dBV
Headphone maximum output -6 dBV
Mounting Tabletop
Dimensions (H x W x D) 75 x 312 x 175 mm(2.95 X 12.28 x 6.89 in)
Weight 1.85 kg (4.078 lb)
Color Traffic black RAL 9017Pearl light grey RAL 9022
Operating temperature 0 ºC to +35 ºC(32 ºF to +113 ºF)
Storage and transport temperature -20 ºC to +60 ºC(-4 ºF to +140 ºF)
Relative humidity < 90 %, > 5%
