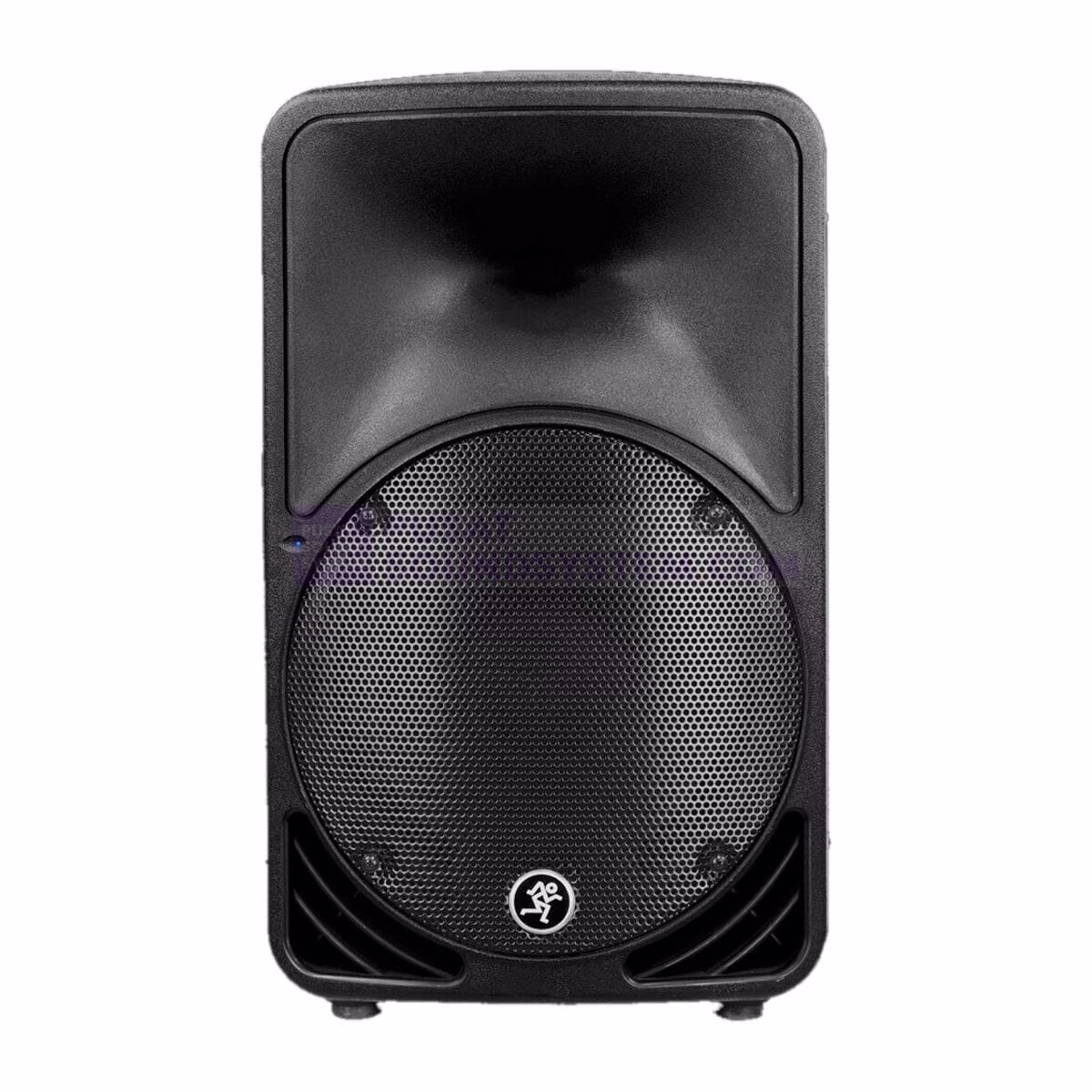

MACKIE C200 Speaker Pasif 10 Inch 2 Way 8 Ohm 200 Watt
2-way Passive Speaker with 200W Capacity, 10″ Woofer, and 1.4″ Titanium Dome Tweeter
Description
Experience the same Mackie sound quality heard from the legendary SRM Series Powered speakers in an incredibly versatile passive design. C-Series loudspeakers are built with rugged road worthy molded cabinets, custom designed high-output drivers and a precision tuned asymmetrical crossover for natural, high-fidelity sound.
C-Series loudspeakers are an excellent choice just about anywhere you can place them. Build the dream PA for your band with a pair of C-Series speakers and a PPM Series Powered Mixer or integrate them into an existing system. Add on a few more and an FRS Series amplifier for an impressive floor monitor setup. Since they are fully flyable, the C-Series is perfect for install systems like a small sanctuary, youth room, bars and small clubs.
Fitur
- 2-way portable Precision Passive loudspeaker system
- 500W peak / 200W RMS power handling at 8
- 10” long-throw low-frequency transducer with 2” voice coil
- High-output 1.4″ titanium compression driver
- Ultra-wide, smooth dispersion via HF horn design
- Integrated Low Impedance Compensated Crossover (LICC) with full driver protection
- Lightweight for ultimate portability (26 lb / 11.8 kg)
- Asymmetrical trapezoidal cabinet for floor monitor positioning
- Stand / Pole-mountable
- Flyable via optional hanging bracket kit
Spesifikasi
| Acoustic Performance | |
| Frequency Response (–3 dB) | 89 Hz-20 kHz |
| Frequency Range (–10 dB) | 59 Hz-22 kHz |
| Max SPL long-term | 118 dB @ 1 m |
| Low-Frequency Crossover Type | 6 dB / octave, time offset corrected |
| High-Frequency Crossover Type | 12 dB / octave |
| Crossover Point | 1800 Hz |
| Audio | |
| Input / Thru Connector Type | Speakon™-style NL-4 jack 1/4″ TS jack |
| Input Impedance | 8 |
| Power Handling | |
| RMS | 200 watts |
| Music | 350 watts |
| Peak | 500 watts |
| Operating Temperature Range | –10º C to 45º C 14º F to 113º F |
| Low-Frequency Transducer | |
| Diameter | 10 in / 250 mm |
| Voice Coil Diameter | 2 in / 51 mm |
| Magnet Material | Ferrite |
| High-Frequency Transducer | |
| Diaphragm Diameter | 1.4 in / 36 mm |
| Diaphragm Material | Heat treated titanium |
| Horn Exit Diameter | 1 in / 24.5 mm |
| Horn Design | |
| Type | Conical and Exponential |
| Mouth Size | 12 in / 305 mm (W) x 7 in / 178 mm (H) |
| Horizontal Coverage | 90º (1 kHz – 20 kHz) |
| Vertical Coverage | 80º (1 kHz – 20 kHz) |
| Safety Features | |
| Driver Protection | Dynamic protection for compression driver |
| Construction Features | |
| Basic Design | Asymmetrical Trapezoidal |
| Material | Polypropylene |
| Finish | Black, textured finish |
| Handles | One on right side, one on top |
| Grille | Perforated metal with weather-resistant coating |
| Physical Properties (packaged product) | |
| Height | 21.5 in / 546 mm |
| Width | 13.2 in / 335 mm |
| Depth | 12.4 in / 315 mm |
| Shipping Weight | 30.0 lb / 13.6 kg |
| Physical Properties (product) | |
| Height | 20.8 in / 527 mm |
| Width | 13.1 in / 333 mm |
| Depth | 12.3 in / 311 mm |
| Net Weight | 26.0 lb / 11.8 kg |
