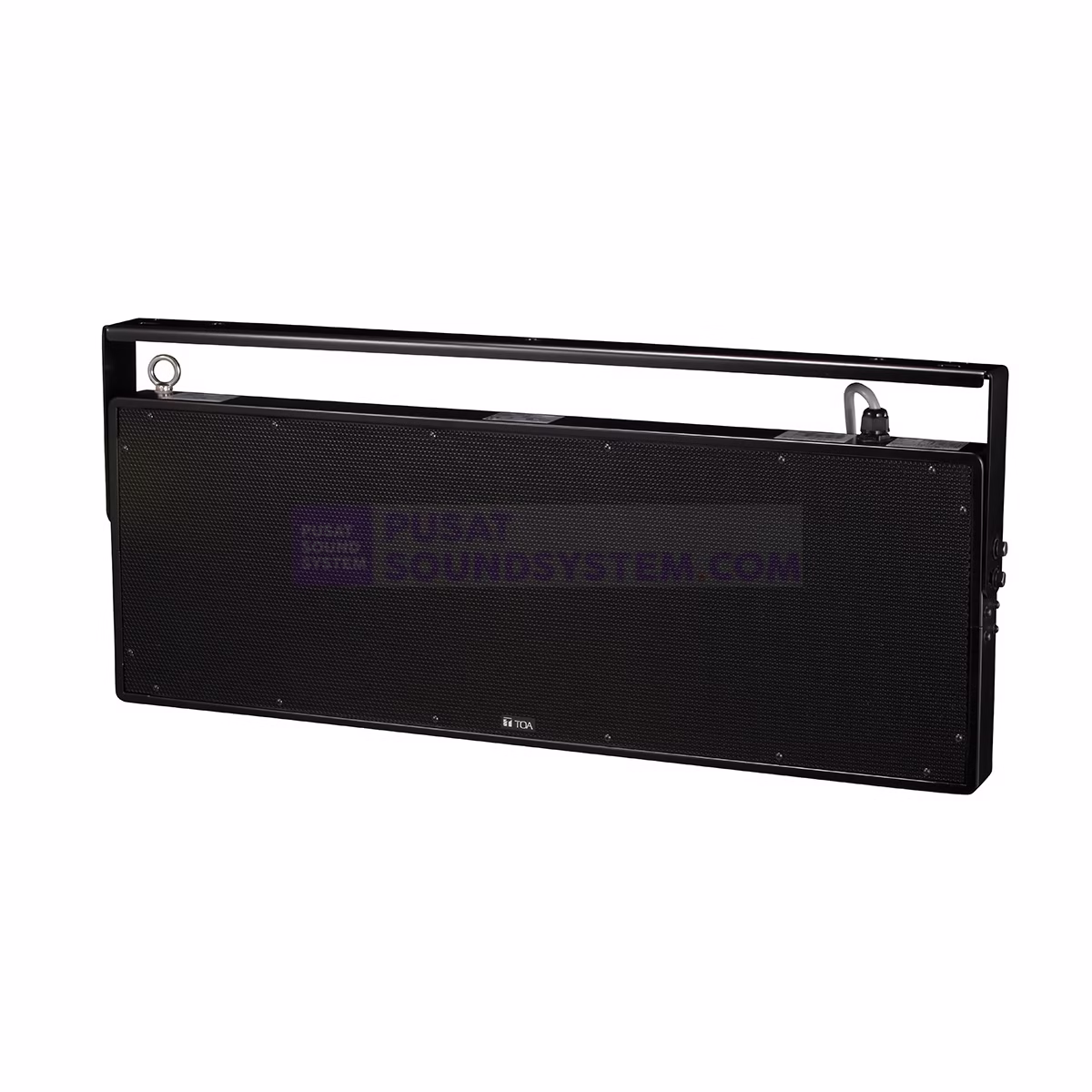

TOA PW-1430DB 30 Watt Plane Wave Speaker

TOA PW-1430DB 30 Watt Plane Wave Speaker

30 Watt Plane Wave Speaker

Chat Penjual
Category: Tag: Brand:
TOA
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The Plane Wave Speaker features a flat speaker system equipped with plane wave units, realizing a narrow directivity pattern by radiating plane wave sound.
Since the Plane Wave Speaker can deliver sound output toward a limited target area, it is suited for use in locations such as station platforms and escalator areas that require information announcements to be broadcast, and in such spaces as museums and art galleries where the reverberation time is long. A double-sided radiation type radiates sound both backward and forward.

  • Double-sided radiation
  • 4 speaker units
  • Narrow directivity
  • Splash-proof construction
  • Rust resistance
  • Beam-tilting function
  • Built-in high-pass filter



Application examples for this product:
  • Railway stations
  • Educational facilities
  • Museums
  • Shopping centers



Type of Radiation Double-sided radiation
Front (The side with TOA logo affixed): Positive pressure wave, Rear: Negative pressure wave
Rated Input 30 W
Rated Impedance High impedance 100 V line: 330 Ω (30 W), 670 Ω (15 W) , 1 kΩ (10 W) , 2 kΩ (5 W)
High impedance 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W ), 1 kΩ (5 W),
2 kΩ (2.5 W)
Sensitivity 88 dB (1 W, 1 m equivalent measured at 4 m, 1 – 10 kHz)
85 dB (1 W measured at 1 m, 1 – 10 kHz)
(Beam tilting: FLAT, High pass filter: OFF)
Frequency Response 250 Hz – 17.5 kHz (Beam tilting: FLAT, High pass filter: OFF)
Directivity Angle Horizontal: 19゜ (2 kHz, 1/3 octave band), Vertical: 78゜ (2 kHz, 1/3 octave band)
Speaker Unit Plane wave unit (152 × 214 mm (5.98″ × 8.43″) ) × 4
Setting Switch Beam tilting (radiation direction) FLAT: 0゜ downward/DOWNWARD: 5゜ downward
High pass filter (450 Hz, -12 dB/oct) : OFF/ON
Speaker Cord φ9 mm (0.35″), 6-core cabtyre cable, 2 m (6.56 ft)
Water Protection IP×4
Operating Temperature -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)
Finish Enclosure, Punched net, and Mounting bracket: Stainless, black, semi-gloss, paint
Dimensions 831 (W) × 355 (H) × 60 (D) mm (32.72″ × 13.98″ × 2.36″)
(including mounting bracket)
Weight 11.4 kg (25.13 lb) (including mounting bracket)
