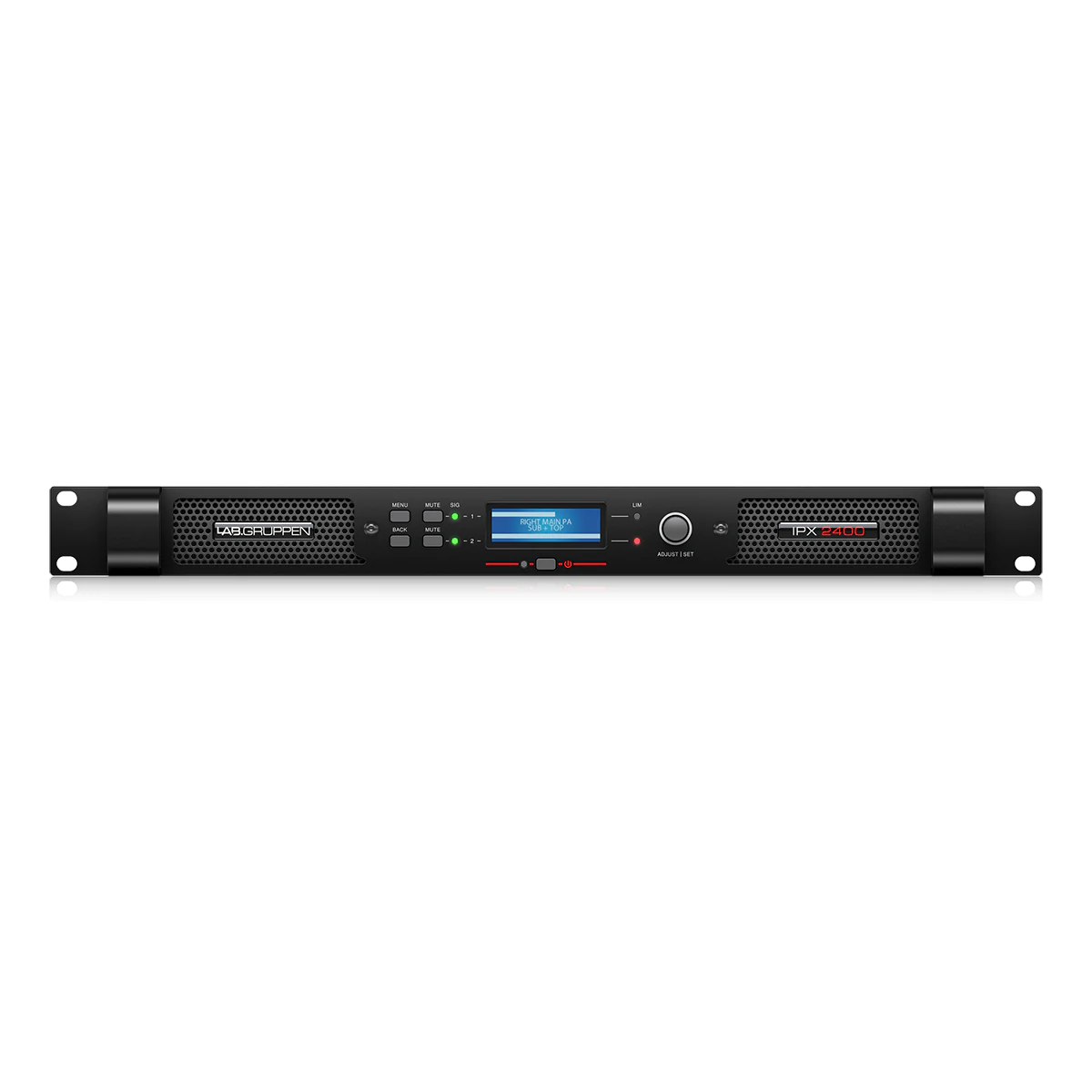

Lab Gruppen IPX 2400 2400W 2-Channel Power Amplifier With DSP
Compact 2400W 2-Channel DSP Controlled Power Amplifier
Description
IPX Series
High power density, competitive cost and power consumption efficiency make the IPX 2400 the ideal compact yet powerful amp solution whether it’s for permanent installations, portable corporate AV systems, or live PA setups.
Muscles Meet Mind
Delivering 2 x 1200 W at 4 ohms, the IPX 2400 packs reliable power and performance into a single rack space. But raw muscle power is not enough. At the heart of the IPX platform, you’ll find a cutting-edge DSP engine equipped with up to 40 real-time, multi-slope parametric EQs along with adjustable gain, input and output delay – and both high- and low-pass filters adjustable to any frequency.
The DSP also provides extensive protection for your loudspeaker system in the form of the innovative software-controlled Speaker Protect Limiter. You can configure this with ease from within the IPX Controller software.
Spesifikasi
Maximum Output Power*
| 2 Ω per channel, stereo | 800 W |
| 4 Ω per channel, stereo | 1200 W |
| 8 Ω per channel, stereo | 600 W |
Controls
| Front | Power switch DSP section rotary push-encoder Buttons for Menu, Back, Mute (per channel) |
System
| Number of channels | |
| Output voltage | 100 V peak / 70 Vrms / 39.2 dBu |
| Input sensitivity for maximum output voltage | 6 dBu |
| Output current | 20 Arms |
| Output circuit type | Class-D |
| THD+N | < 0.1%, 20 Hz – 20 kHz @ 1 W < 0.05% @ 1 kHz, 1 dB below clip |
| Output noise | -65 dBu, A-weighted |
| Signal-to-noise | > 104 dB |
| Channel crosstalk | > 80dB @ 1 kHz |
| Frequency response | 10 Hz to 20 kHz, +0.5/-1 dB 5 Hz to 40 kHz, -3 dB |
| Common mode rejection (CMR) | > 50 dB |
| Gain (all DSP controls set to 0 dB) | 33 dB |
Indicators
| Power | Red LED |
| Limit, per channel | Red LED |
| Signal / mute, per channel | Green/Red LED |
