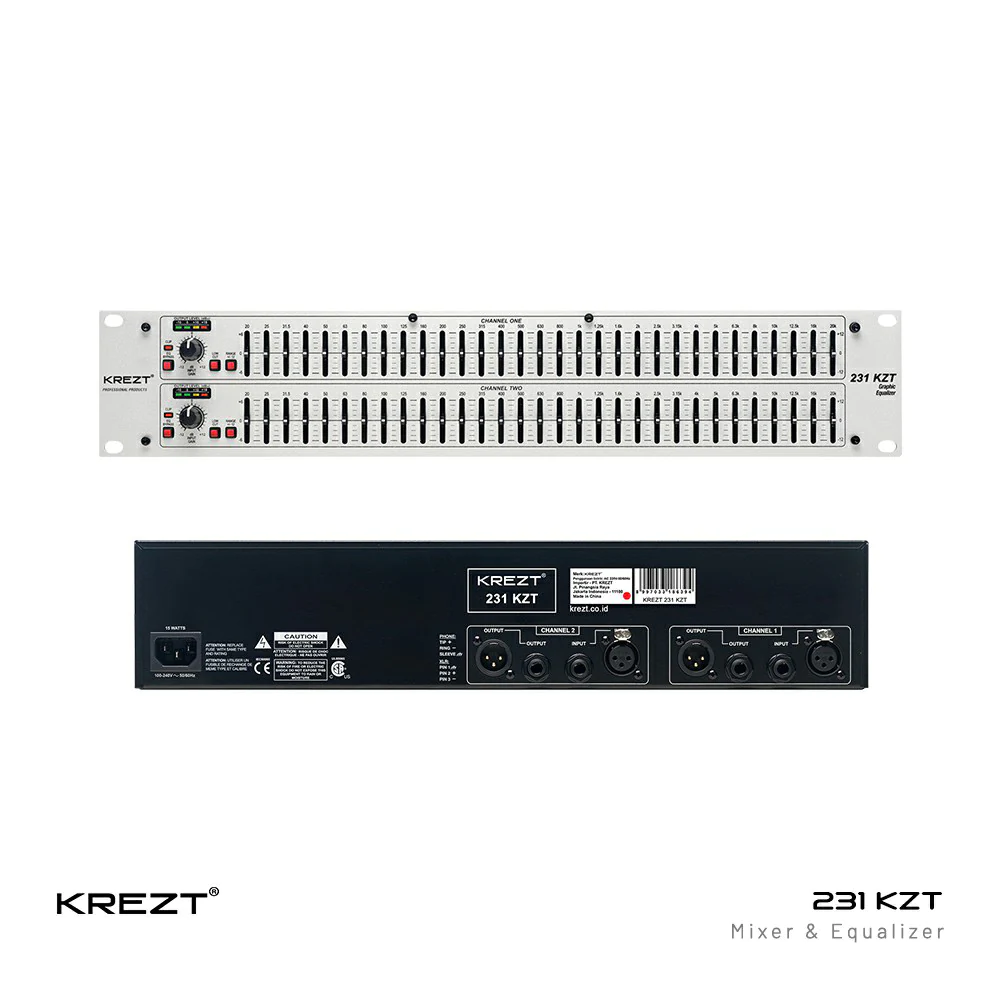

KREZT 231 KZT Graphic Equalizer 31 Band 2 Channel
Chat PenjualDescription
Inputs
- Connectors : 1/4″ TRS, female XLR (pin 2 hot)
- Type : Electronically balanced/unbalanced, RF filtered
- Impedance : Balanced 40 kΩ, unbalanced 20 kΩ
- Max Input Level : >+21 dBu balanced or unbalanced 16
- CMRR : >40 dB, typically >55 dB at 1 KHz
Outputs
- Connectors : 1/4″ TRS, male XLR (pin 2 hot)
- Type : Impedance-balanced/unbalanced, RF filtered
- Impedance : Balanced 100 kΩ, unbalanced 50 kΩ
- Max Input Level : >+21 dBu balanced or unbalanced into 2 kΩ or greater >+18 dBm balanced/unbalanced (into 600 Ω)
System Performance
- Bandwidth : 20 Hz – 20 KHz, +0.5/-1 dB
- Frequency Response : <10 Hz to >50 kHz, +0.5/-3 dB
- Dynamic Range : Typically >112 dB
- Signal-to-Noise : Typically >95 dB
- Thd+Noise : <0.003%
- Interchannel Crosstalk : <-90 dB, 20 Hz – 20 KHz
Function Switches
- EQ Bypass : Bypasses the graphic equalizer section in the signal path
- Low Cut : Activates the 50 Hz 12 dB/octave high-pass filter
- Range : Selects either +/- 6 dB or +/- 12 dB slider boost/cut range
Power Supply
- Operating Voltage : 100-240 VAC, 50/60 Hz
- Power Consumption : 15 W
- Mains Connection : IEC receptacle
Physical Dimensions
- Physical Dimensions : 3.5”H x 19” W x 6” D
- Product Weight : 3.1 Lbs, Shipping Weight 3.95 Lbs
