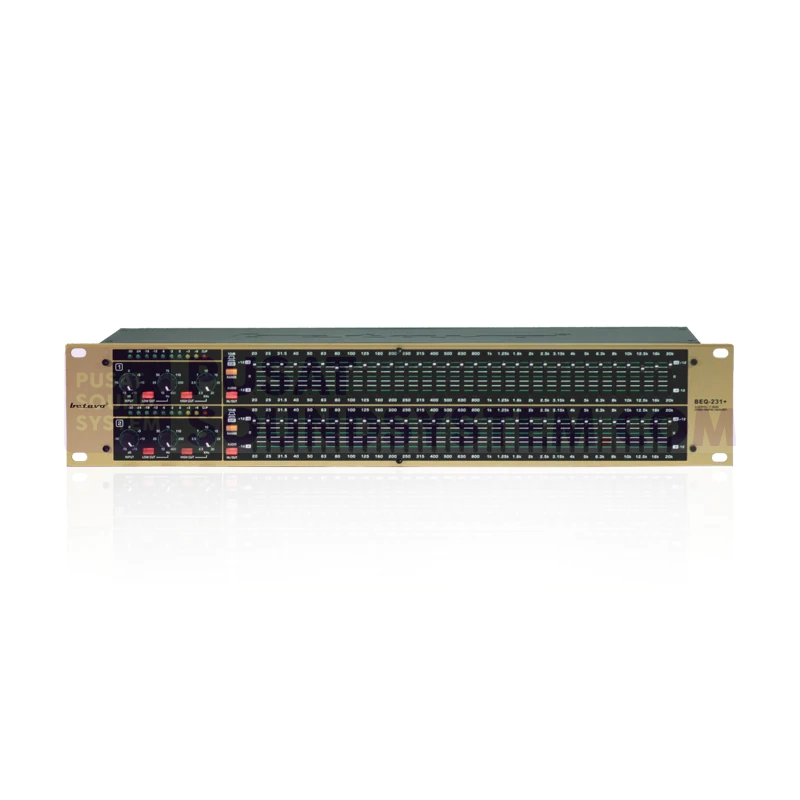

Betavo BEQ-231 GOLD Graphic Equalizer 31 Band 2 Channel
Betavo BEQ-231 GOLD Graphic Equalizer 31 Band 2 Channel - Image 2

Betavo BEQ-231 GOLD Graphic Equalizer 31 Band 2 Channel

Chat Penjual
Category: Brand:
Betavo
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

Betavo Professional Equalizer BEQ -231+ all variant
Spesifikasi :

AUDIO INPUT
– Input : RF-filtered, servo-balance XL Rand 1/4″ TRS connectors
– Impedance : 40 K Ohms balanced and unbalanced
– Maximum Input Level : +21 dBu balanced and unbalanced
– CMRR : typ. 55 dB, >40 dB @ kHz

AUDIO OUTPUT
– Output : Servo-balanced XLR and 1/4″ TRS connectors
– Subwoofer Out : Balanced XLR Connector
– Crossover Frequency : Variable, 30 – 200 Hz

SYSTEM
– Frequency Response : 10 Hz to 30 kHz, +0 3 dB
– S/N Ratio : 22 Hz to 22 kHz >94 dB @ 4 dBu
– Distoration (THD) : Typ. 0.008% @ +dBu, 1 kHz, Gain 1
– Crosstalk : Typ. -92 dB @ 1 kHz

ROLL-OFF FILTER SECTION
– Type : 12 dB/oct, Butterworth
– Input : +- 15 dB, variable
– Low Cut : 10 Hz to 400 Hz, Variable
– High Cut : 2.5 kHz to 30 kHz

GRAPHIC EQUALIZER
– Type : Analog 31-band equalizer
– Frequency Range : 20 Hz to 20 kHz in 31 1/3-octave bands (ISO Frequencies)
– Bandwidth : 1/3 octave
– Control Range : +- 6 dB or +- 12 dB (Switchable)

INDICATORS
– Input/Output : 10
-segment LED display : -30/-24/-18/-6/-3/+6 Db/CLIP

POW SUPPLY / VOLTAGE
– Maffins Voltage : 200-240V ~,50/60 Hz
– Power Consumption : 35 Watt
– Mains Connection : Standard IEC receptacle

– Nett Weight : 2.70 Kg
– Gross Weight : 3.29 Kg
– Packing Size : 28.5*55.5*12.5 CM
