Description

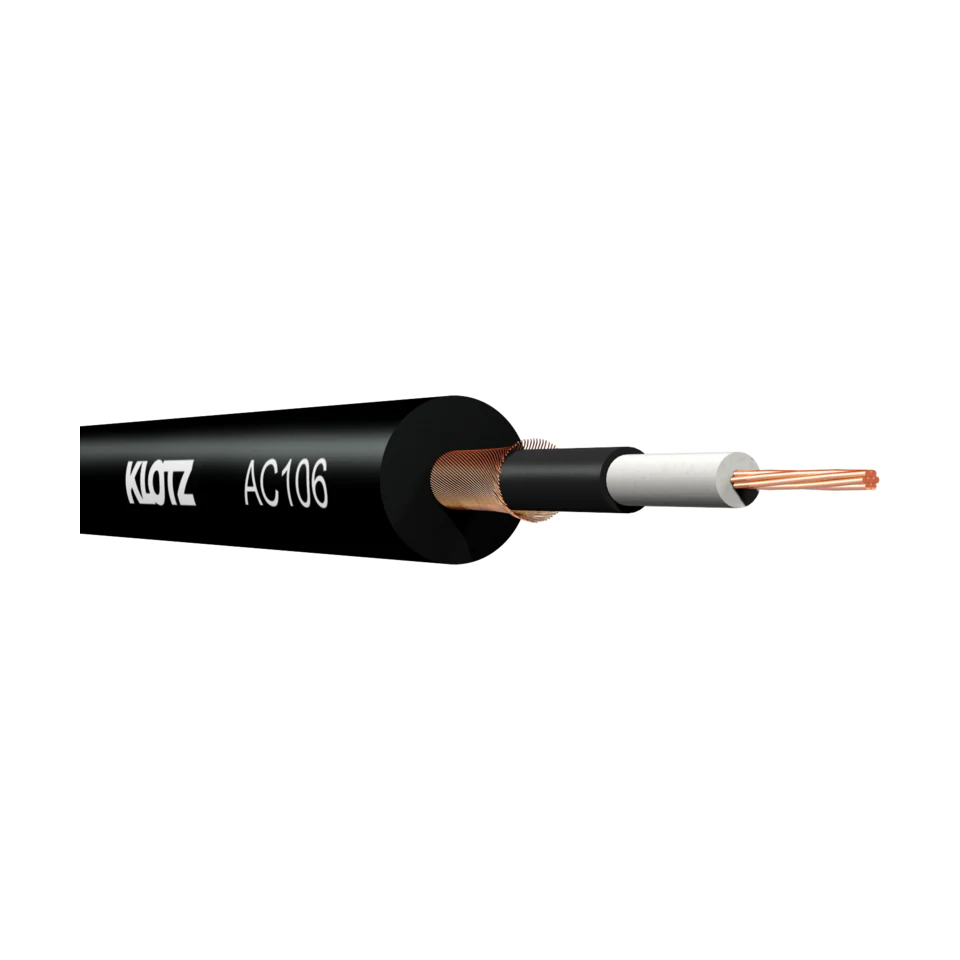

The AC106 audio cable can be used to connect guitars, keyboards and other line level devices. An extra thick outer jacket, double screening by a dense copper spiral shield with a layer of conductive plastic underneath and a thick PP foam insulation result in low capacitance, immunity from noise and disturbance and high mechanical reliability.
Fitur
- 0.22 mm² conductor cross section (AWG 24)
- double shielding
- conductive plastic layer
- bare copper spiral shield
- low capacitance: 95 pF/m (29 pF/ft)
Spesifikasi
design
| cond. construction: stranded bare copper, 7 x 0.20 mm |
| cond. cross section: 0.22 mm² |
| insulation: polypropylene (PP) foam |
| 1. shield: conductive plastic layer |
| 2. shield: bare copper spiral shield |
| outer jacket: PVC, matt |
| overall diameter: 6.5 mm |
mechanics
| min. bending radius: 30 mm |
| working temperature: -20°C / +70°C |
electric
| conductor resistance: < 85 Ω/km |
| capacitance: |
| cond./shield: 95 pF/m |
| insulation resistance: > 1 GΩ x km |
