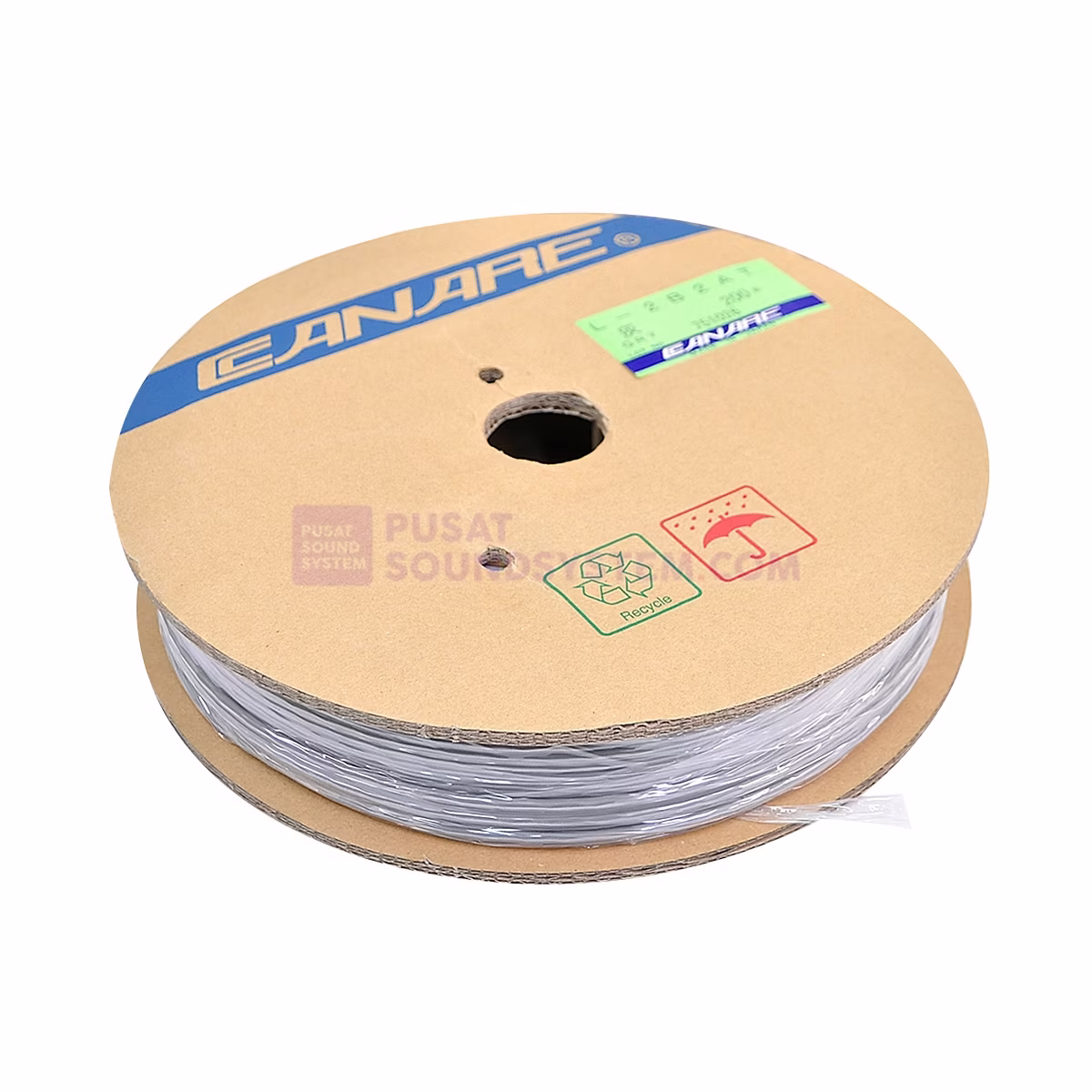

CANARE L-2B2AT Kabel Audio Balanced Isi 3

Two-Conductor Shielded Cables (Single) Aluminum Foil Shield

Cek Harga
Share atau Bagikan :

Description

Canare’s thinnest profile audio hookup wire. Amazingly flexible, with 100% foil shield, drain wire and PVC jacket that strips easily for rapid assembly. Suitable for large cable harness bundles, mixing consoles, tape machines and inner-rack wiring.

●  Microphones.
●  Permanent Installations.
●  Audio Patch Cords.
●  PA Systems.
●  Post Production Suites.
●  Recording Studios.
●  100% Foil Shield Coverage w/Drain Wire.
●  Built in Dupont® Kevlar 29 and Drain Wire.
●  Cross Linked PE Insulation.
●  Reduced Handling Noise.
●  Rejects EMI and RFI.

Spesifikasi

Applications Microphones, permanent installations, audio patch cords, PA systems, post-production suites, and recording studios
Mechanical/Electrical
Outer Diameter Nominal: 0.126′ (3.2 m)
Nominal Jacket Thickness 0.012′ (0.3 m)
Number of Conductors 2x
Insulation Type: IPE
Thickness: 0.49″ (12.6 mm)
Note: Dielectric Strength: 500 VAC / 1 minute
Insulation Resistance: >1,000 M Ω per 3’ (0.91 m)
Conductor AWG (AC): 25 (16 / 4.73 quantity / mm)
Cross-Sectional Area: 279 mm²
Pitch Twist Quad <0.99″ (<25 mm)
Shield Coverage 100% Aluminum tape
Conductor D.C.R. <31.9′ Ω / 1000′ (<10.5 Ω / 100 m)
Nominal Capacitance Between Conductors: 23 pF / 1000 (73 pF / 100 m)
Between Conductors to Shield: 37 pF / 1000′ (120 pF / 100 m)
Brittle Point -13°F (-25°C)
Length 656′ (200 m)
Weight 6 lb (3 kg)
Packaging Info
Package Weight 6.9 lb
Box Dimensions (LxWxH) 11.7 x 11.7 x 3.35″
