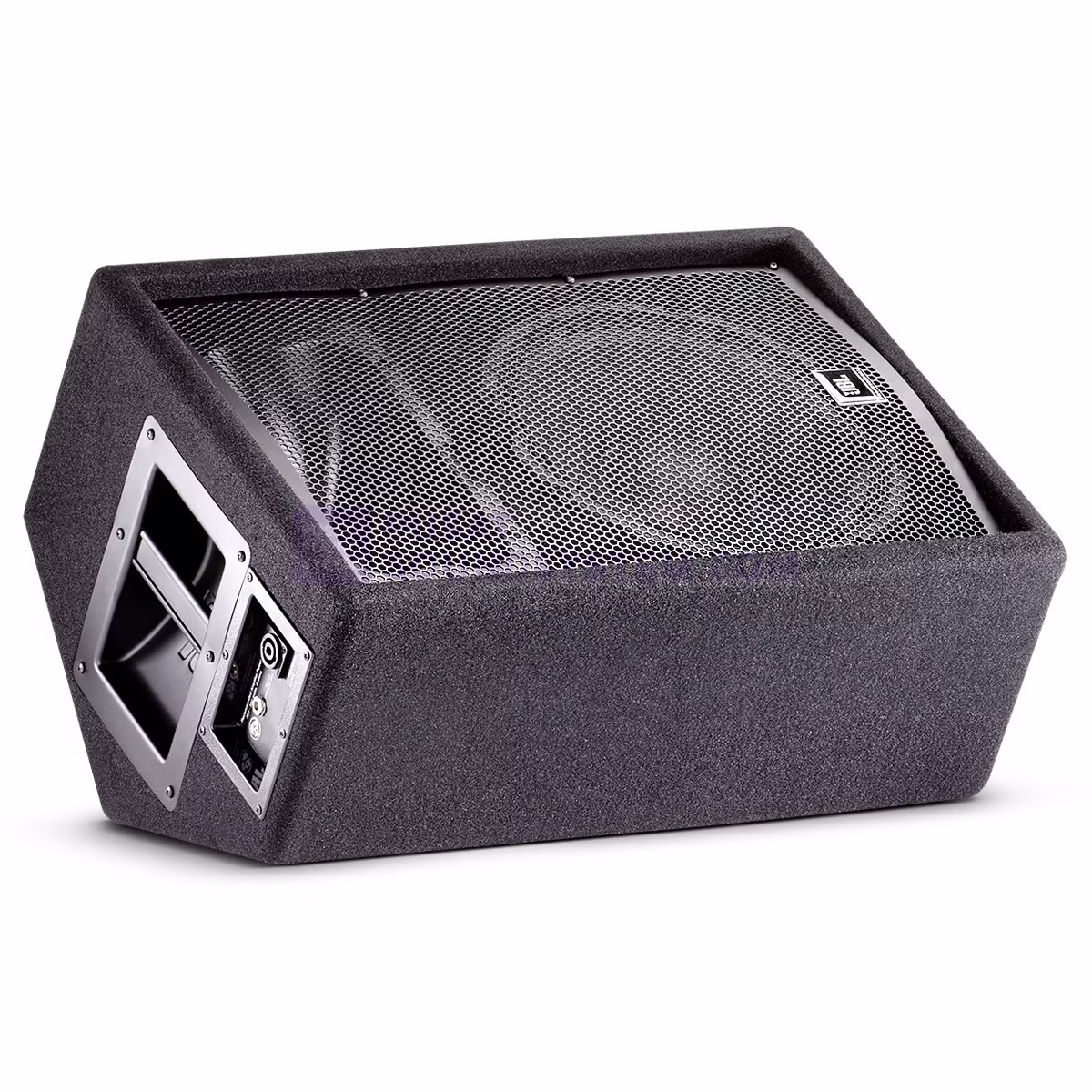

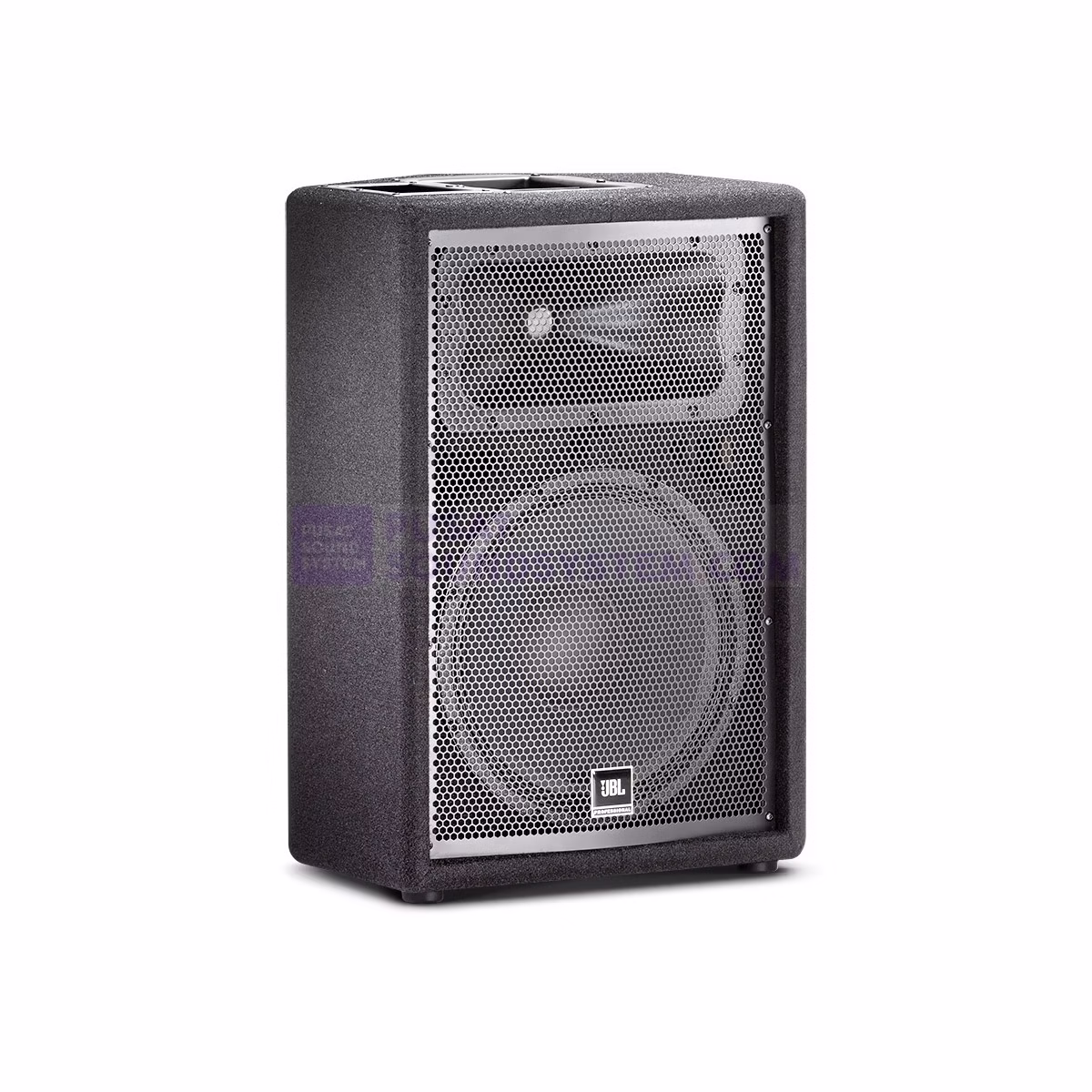

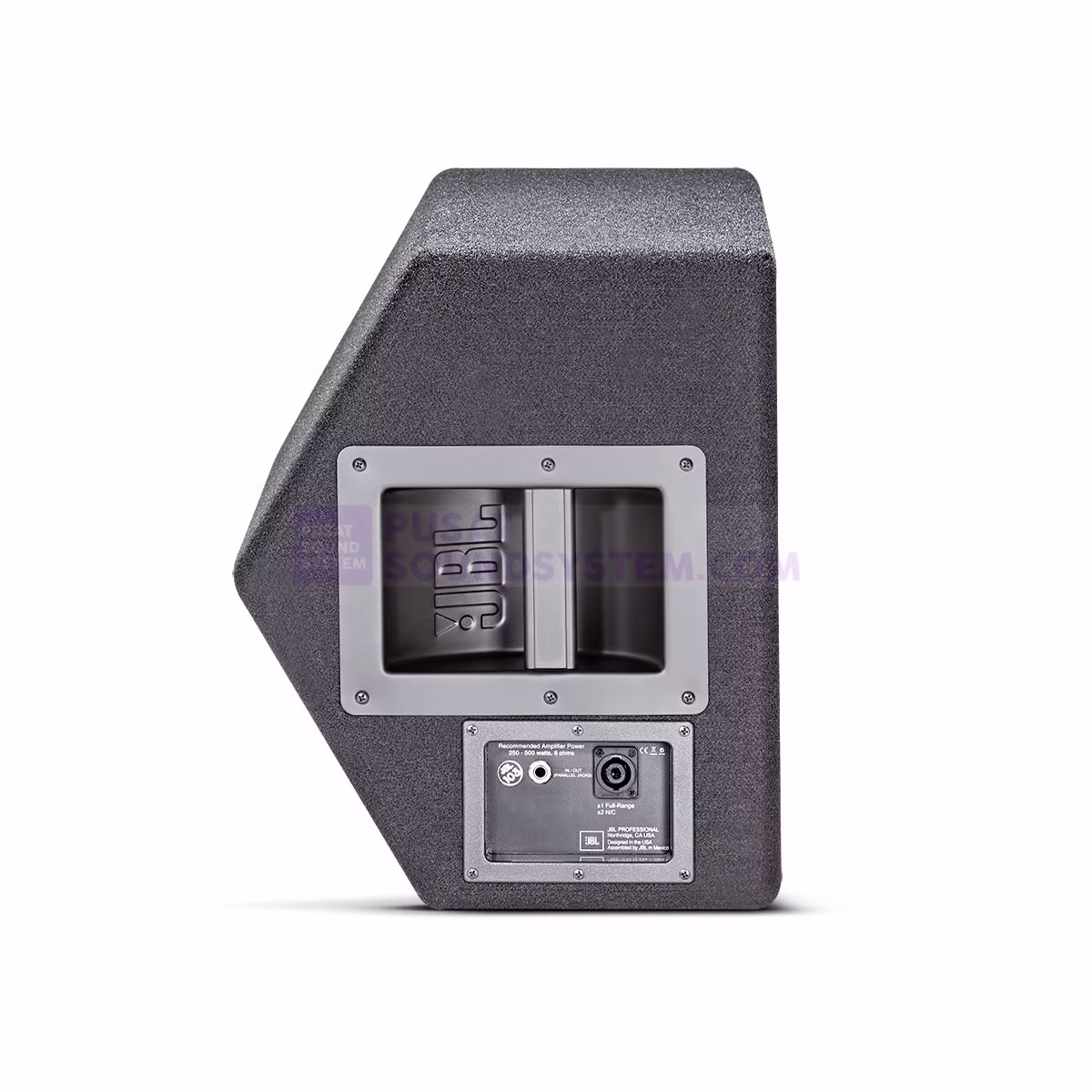

JBL JRX212 Speaker Pasif 12 Inch 2 Way 8 Ohm 1000 Watt

Description

`Monitor tahap pasif 2 arah JBL JRX212 memberi Anda kinerja profesional yang terjangkau. Insinyur JBL memeriksa ulang setiap elemen dari desain sistem speaker, menjaga segala sesuatu yang membuat speaker tampil dan terdengar yang terbaik, dan mendesain ulang hal-hal yang tidak. Untuk meningkatkan efisiensi dan penanganan daya, JRX212 menghadirkan driver 12 “frekuensi rendah dengan pita suara pita edgewound berdiameter 2,5″ yang memberikan area cross-sectional lebih banyak di celah kumparan suaranya daripada desain kawat bundar, sementara 1 ” driver kompresi polimer-diafragma memaksimalkan kinerja frekuensi tinggi dan keandalan sistem. Butuh monitor panggung? Lengkapi pro dengan JBL’s JRX212.

JBL JRX212 Features

• JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
• JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
• The advanced network topology crossover design shapes frequency response and delivers “coherent summation” in the crossover region.
• High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
• Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
• The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
• SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
• Non-resonant, all-steel handles are used.
• Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
• Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.

Spesifikasi

• Powered:No
• Power Configuration:2-way
• LF Driver Size:1 x 12″
• HF Driver Size:1″ 2414-C Compression Driver
• Power Rating:250W Program
• Total Power:1000W Peak
• Impedance:8 ohms
• Inputs:1 x 1/4″ (parallel), 1 x speakON
• Frequency Range:60Hz-20kHz (-10dB)
• Frequency Response:80Hz-18kHz (±3dB)
• Crossover Frequency:2.1kHz
• Maximum Peak SPL:128dB SPL
• Horizontal Coverage Angle:50 Degrees
• Vertical Coverage Angle:90 Degrees
• Enclosure Material:3/4″ MDF
• Mounting Options:Pole Mount with 1.41″ socket, Floor Wedge
• Height:23″
• Width:15.7″
• Depth:12.8″
• Weight:43 lbs.
• Manufacturer Part Number:JRX212
