Electro Voice EVID-C6.2 Speaker Ceiling Pasif 6.5 Inch 2 Way 8 Ohm 75 Watt (High Impedance, Waterproof)
Ceiling speaker 6.5″ white
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description

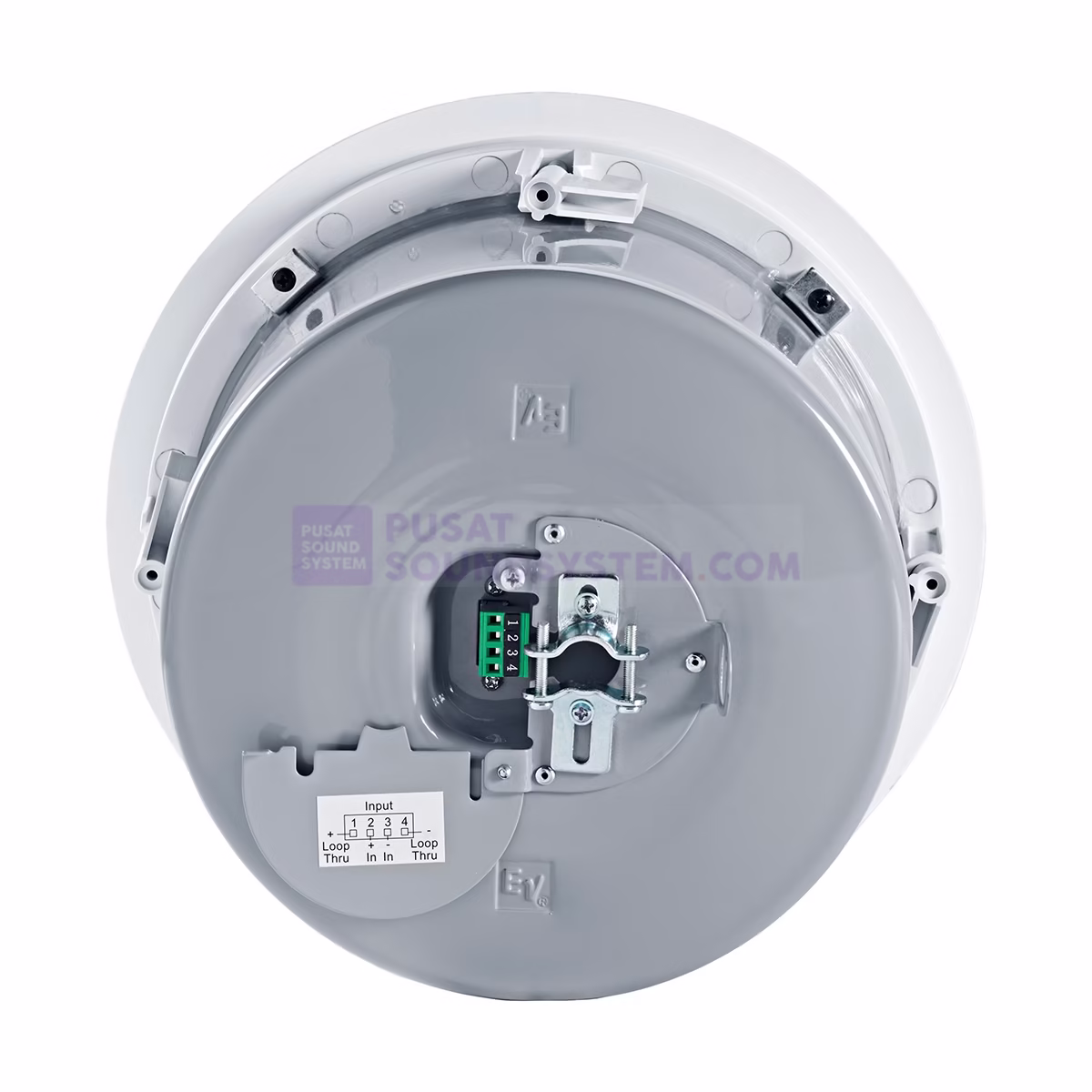

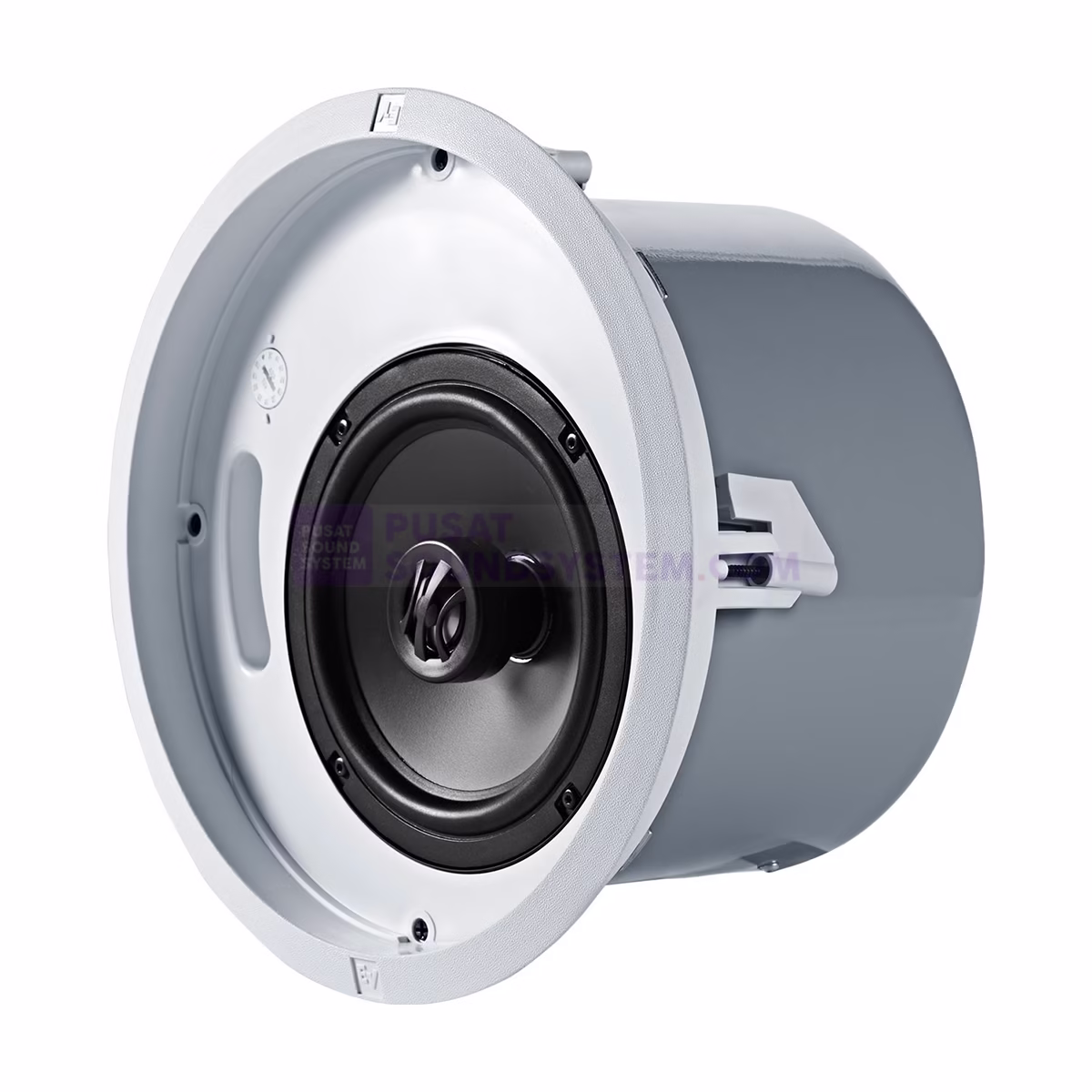

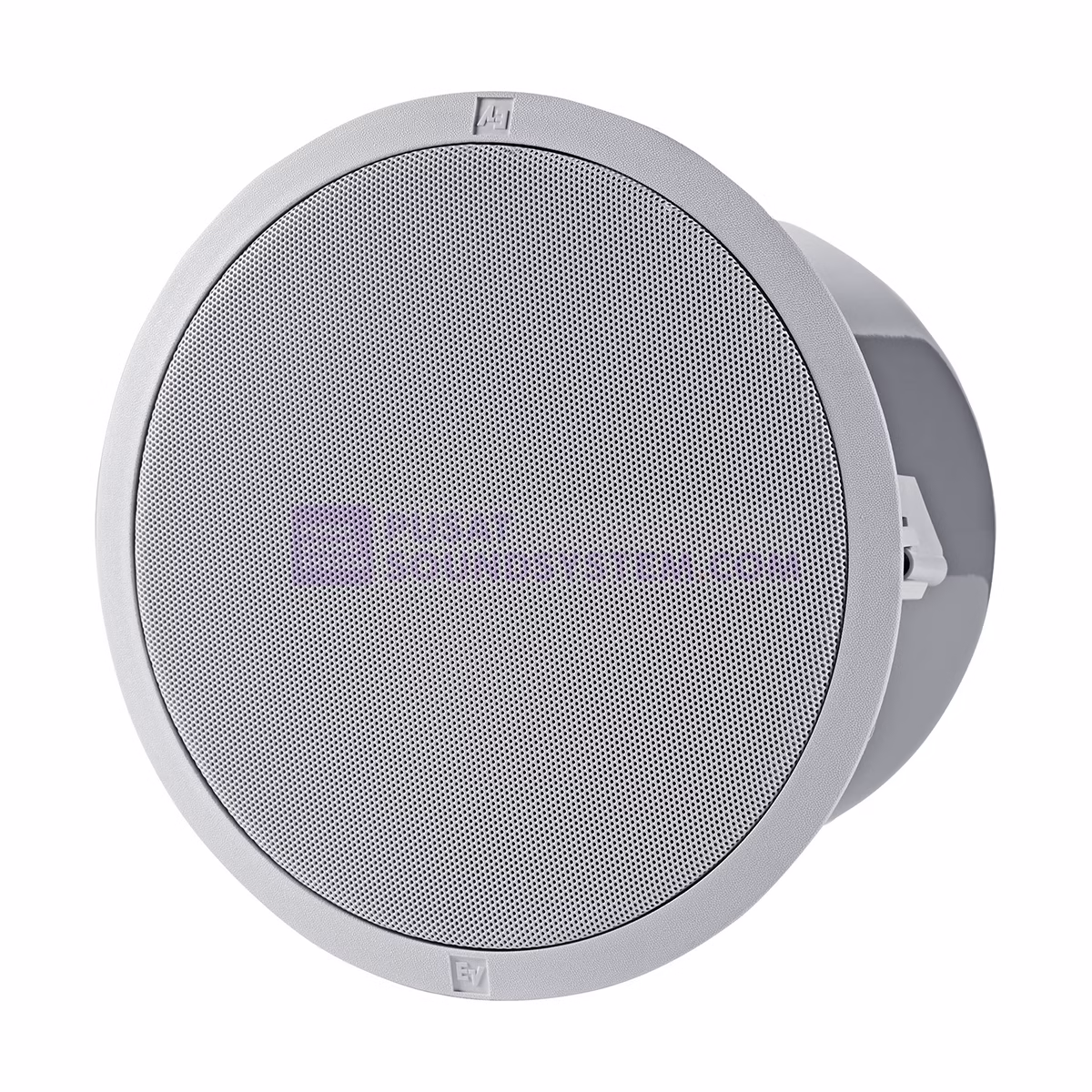

The EVID-C6.2 is a low profile, complete two-way ceiling speaker. The loudspeaker features a waveguide coupled titanium coated dome tweeter, UL 94V-0 bezel assembly, grille, zinc plated steel rear enclosure, 6.5″ coax two-way loudspeaker, and an internal line-matching transformer. Utilizing a second order crossover network at 2.5 kHz provides a comprehensive protection circuit for the network, woofer, and tweeter drivers from excessive power levels. The built-in transformer also offers a selection of 1.88 (70-V only), 3.75, 7.5 or 15 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. The low profile enclosure makes it easy to mount into tight spaces and the rear panel—with provisions for a junction box fitting—cover panel allows quick access to the 4-pin terminal block; which can connect directly to the speaker with 12 gauge wire and provides pass through to additional speakers. Wide dispersion, high efficiency, maximum output, and ease of installation make the EVID-C4.2LP a wise fit for a wide-range reproduction of voice or music.
Features
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- Includes tile bridge and mounting ring for easy
- installation
- UL1480A and CSA 22.2 205 certified
Specifications
- Frequency response: 50 Hz – 20 kHz
- Sensitivity (SPL 1 W/1 m): 90 dB
- Coverage pattern: 120° conical
- Power handling (@ 8Ω): 75 W (with overload protection)
- Rated Impedance: 8 Ω
- Recommended High-Pass
- Frequency: 60 Hz
- Input configuration: 8Ω; 70V/100V
- 70V/100V power taps: 1.8 (70V only)/3.7/7.5/15/30 W
