Description
Features

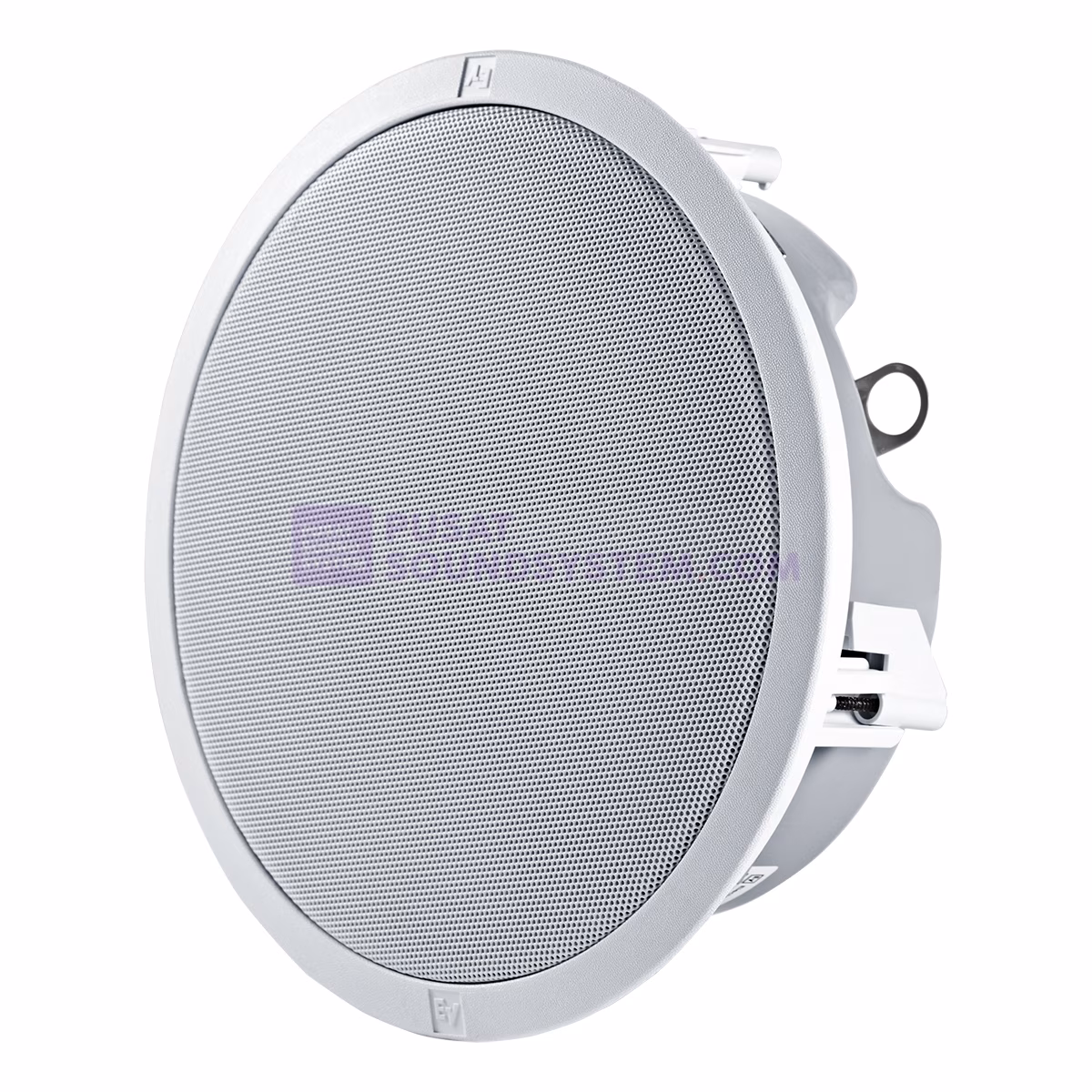

- Low profile 4” coaxial two-way (3.7” deep)
- Full bandwidth overload protection
- Front baffle wattage tap adjustment
- Includes tile bridge and mounting ring for easy installation
- UL1480A and CSA 22.2 205 certified
SPECIFICATIONS
Frequency response | 60 Hz – 20 kHz |
Sensitivity (SPL 1 W/1 m) | 86 dB |
Coverage pattern | 130° conical |
Power handling (@ 8Ω) | 50 W (with overload protection) |
Rated Impedance | 8 Ω |
Recommended High-Pass frequency | 65 Hz |
Input configuration | 8Ω; 70V/100V |
70V/100V power taps | 1.8 (70V only)/3.7/7.5/15/30 W |

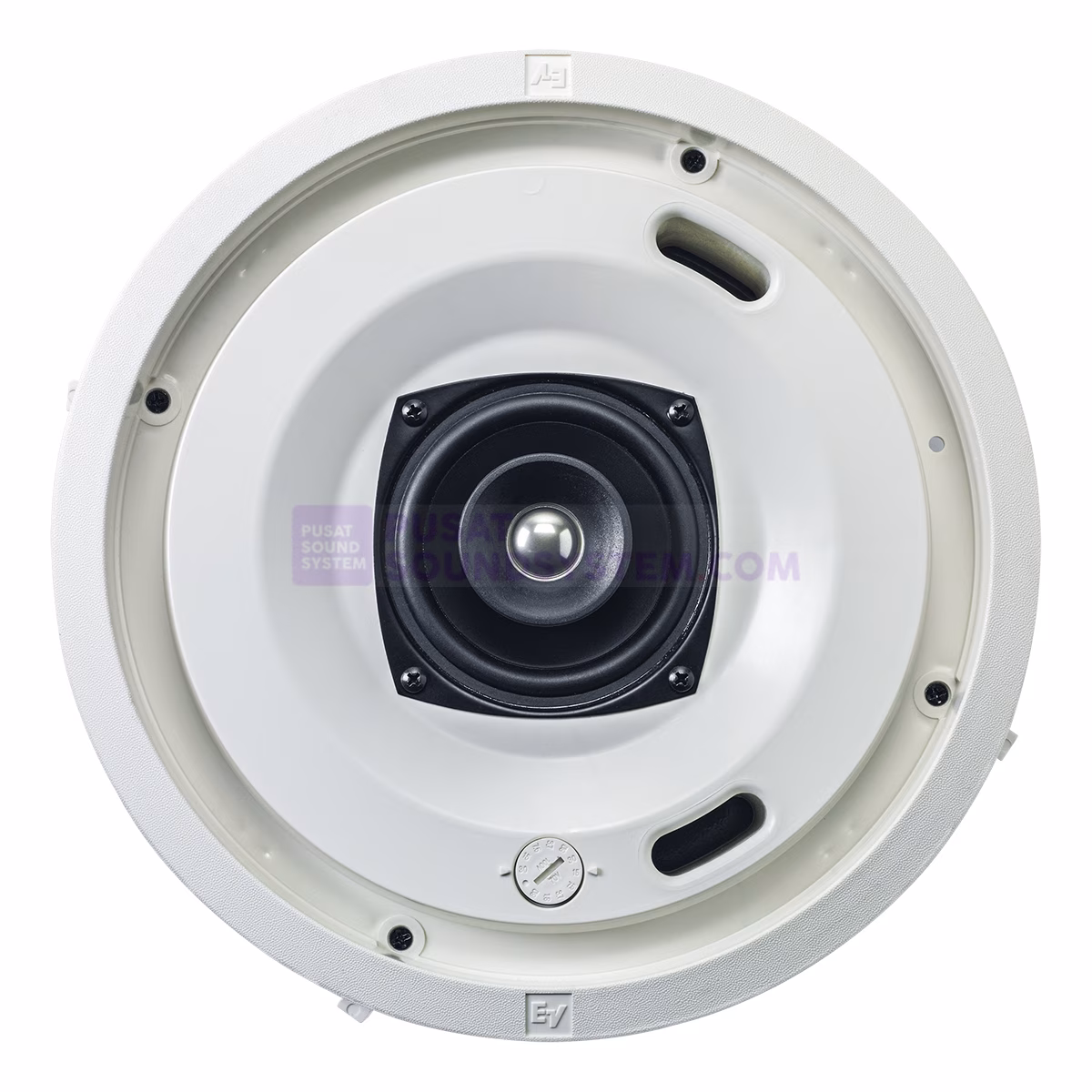

LF transducer | 4 in (100 mm) high-compliance driver (weatherized cone) |
HF transducer | 0.75 in (19 mm) Ti-coated dome |

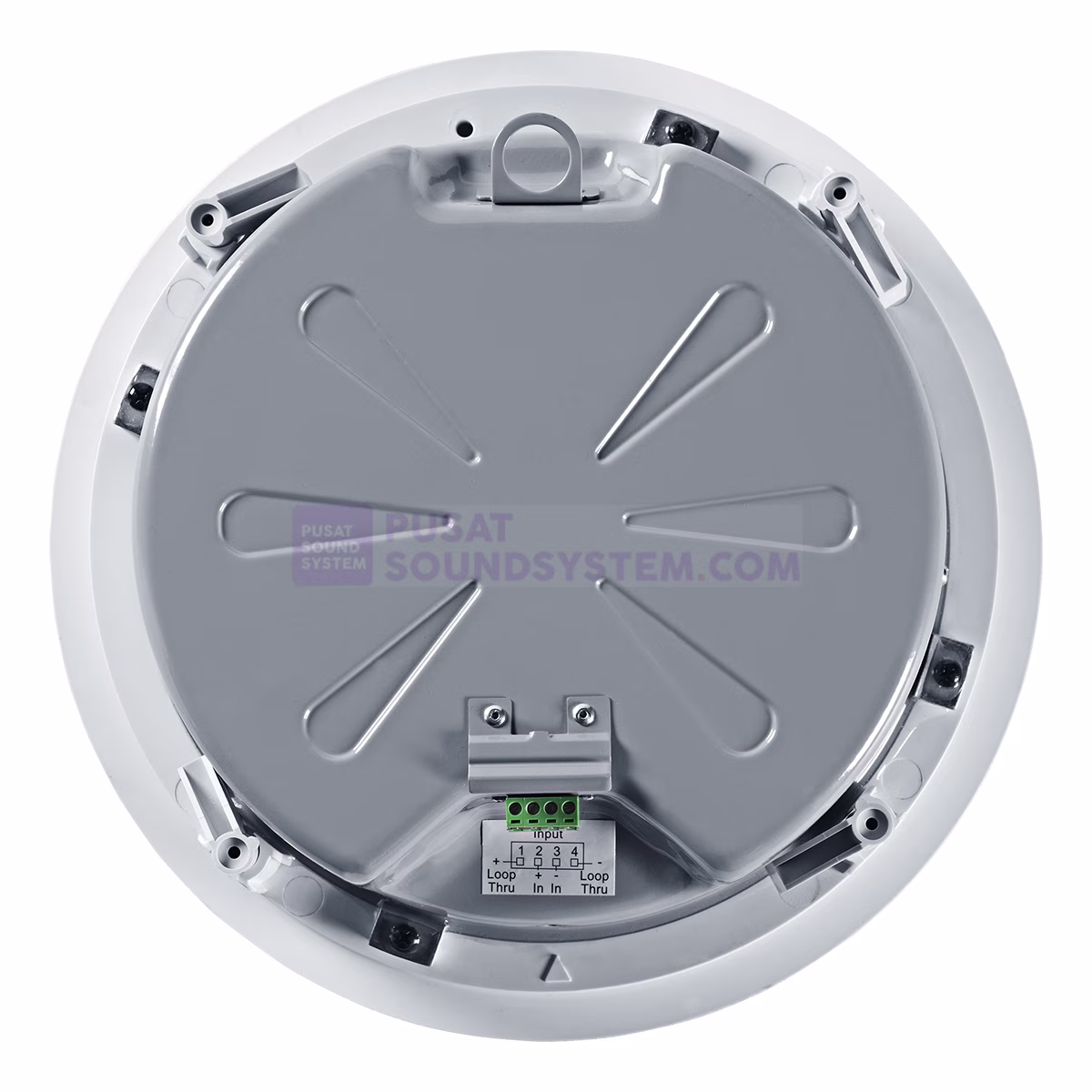

Mounting system | Integrated 4-point toggle anchors |
Acoustic design | Ported cabinet, two-way design, internally damped, w/passive crossover |
Cabinet construction | Steel enclosure and UL94V-0 rated baffle and bezel |

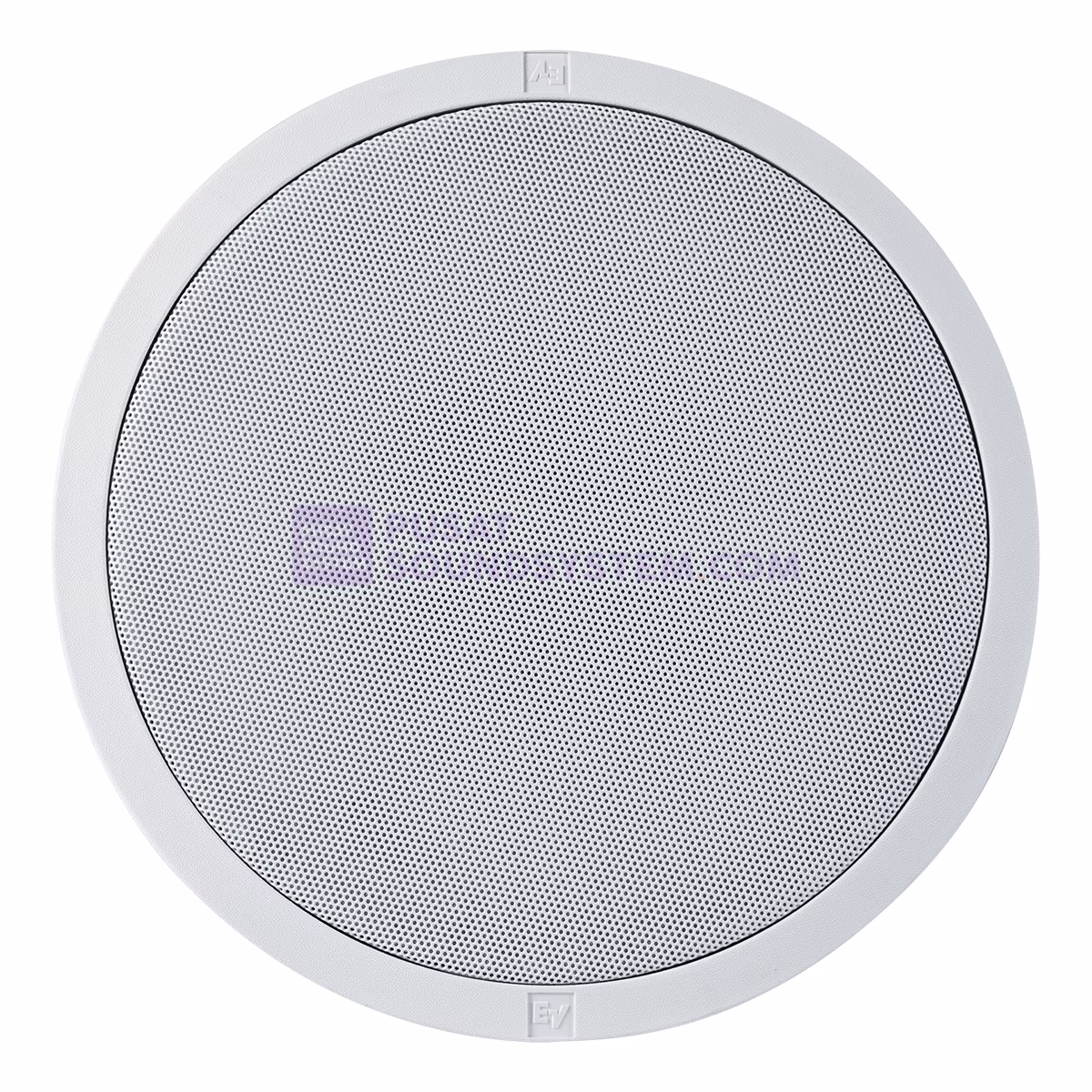

Grille construction | Powder-coated steel |
Color | White (paintable) |
Cutout dimensions (diam.) | 10.6 in (269 mm) |
Dimensions (depth x diam.) | 3.7 in x 11.8 in (94 mm x 300 mm) |
Net weight | 7.35 lb (3.32 kg) |
Included accessories | Tile bridge, mounting ring |
Safety agency ratings | UL 1480 Safe for use in air handling spaces per UL 2043 |
