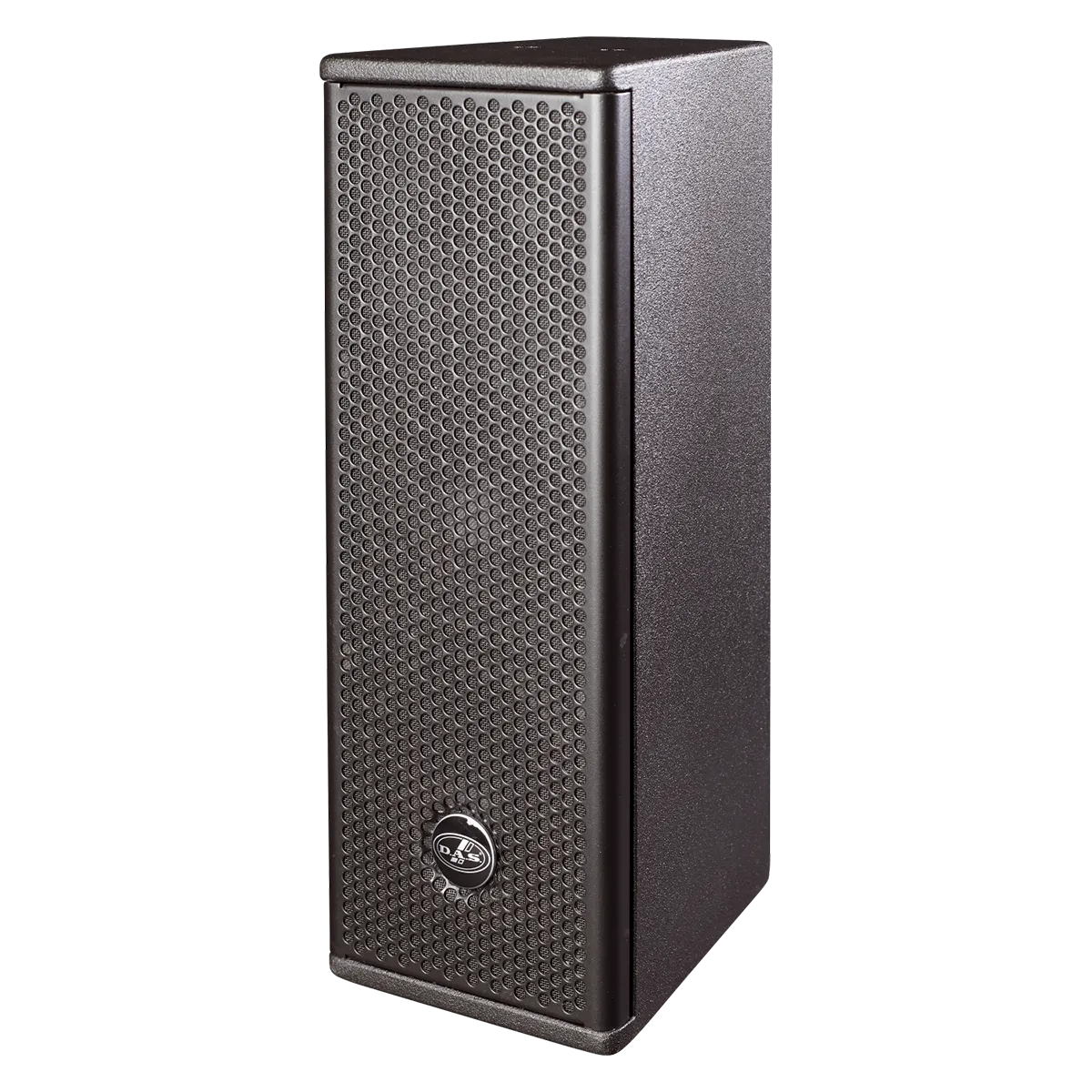

DAS ARTEC-526A Speaker Aktif 2x6 Inch 2 Way 1080 Watt

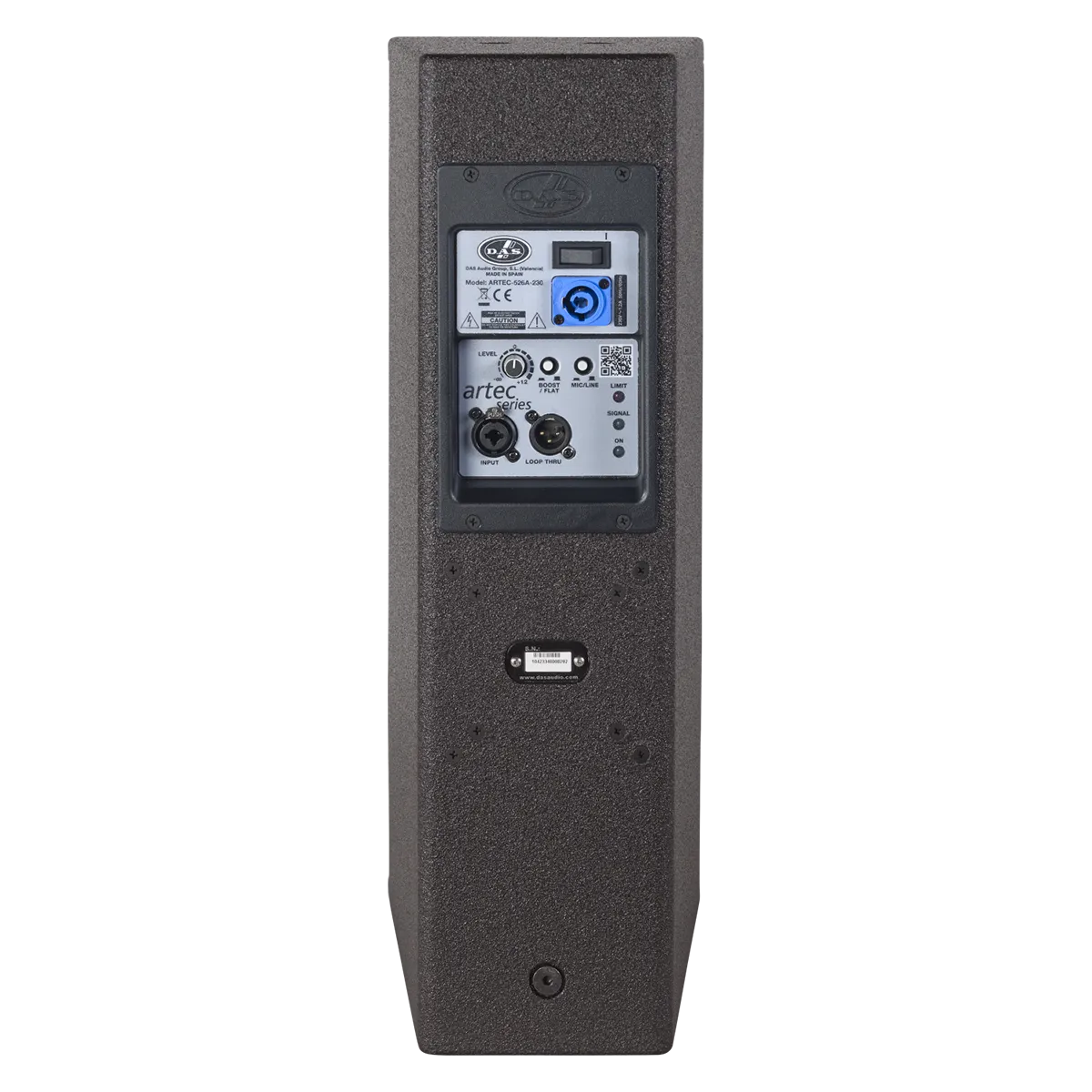

DAS ARTEC-526A Speaker Aktif 2x6 Inch 2 Way 1080 Watt - Image 2

DAS ARTEC-526A Speaker Aktif 2×6 Inch 2 Way 1080 Watt

Powered, 500 W, 2×6”, 2 way full-range, 80×80 horn, 230 V, black

Chat Penjual
Category: Tags: , , Brand:
DAS
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The ARTEC-526A incorporates twin 6” loudspeakers for low frequency reproduction. The 720 W peak power of the Class D amplifier provides extended bandwith, improved dynamic range and exceptionally low distortion-features hard to find on other systems in this market segment. The DAS 6P loudspeakers provide accurate low frequency reproduction. High frequencies are handled by the M-34 compression driver with 1″ exit offering excellent HF performance. The birch plywood cabinet construction offers an ultra-compact design which is available in black or white.

Features

Ultra lightweight Class D amplifier
Switch-mode power supply
Reduced size and weight
Horizontal or vertical position
Pole mount accessories

Applications

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs


Performance
Frequency Range (-10 dB) 60 Hz – 20 kHz
Horizontal Coverage (-6 dB) 80º
Vertical Coverage 80º
Maximum Peak SPL at 1 m 125 dB

Electronics and Connectors
Nominal Amplifier Power LF (continuous) 360 W
Nominal Amplifier Power LF (peak) 720 W
Nominal Amplifier Power HF (continuous) 180 W
Nominal Amplifier Power HF (peak) 360 W
Input Type Balanced
Input Impeadance 20 kohms
Input Sensitivity 1.95 V (+8 dBu)
Audio Signal Input Connector 1 x Female XLR
Audio Signal Loop Thru Connector 1 x Male XLR
Recommended Signal Processing INTEGRAL-M88
Current Draw 230 V / 115 V 1.2 A/-
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M10 Rigging Points
Finish ISO-flex Paint
Color Black
Dimensions ( H x W x D ) 550 x 195 x 260 mm
21,7 x 7,7 x 10,2 in
Net Weight 11,0 kg ( 24,3 lb )
Components
LF Driver 6P4
HF Driver M-34
Horn/Waveguide BC-88
Shipping
Carton Dimensions ( H x W x D ) 638 x 266 x 330 mm
25,1 x 10,5 x 13,0 in
Shipping Weight 16,1 kg ( 35,5 lb )
