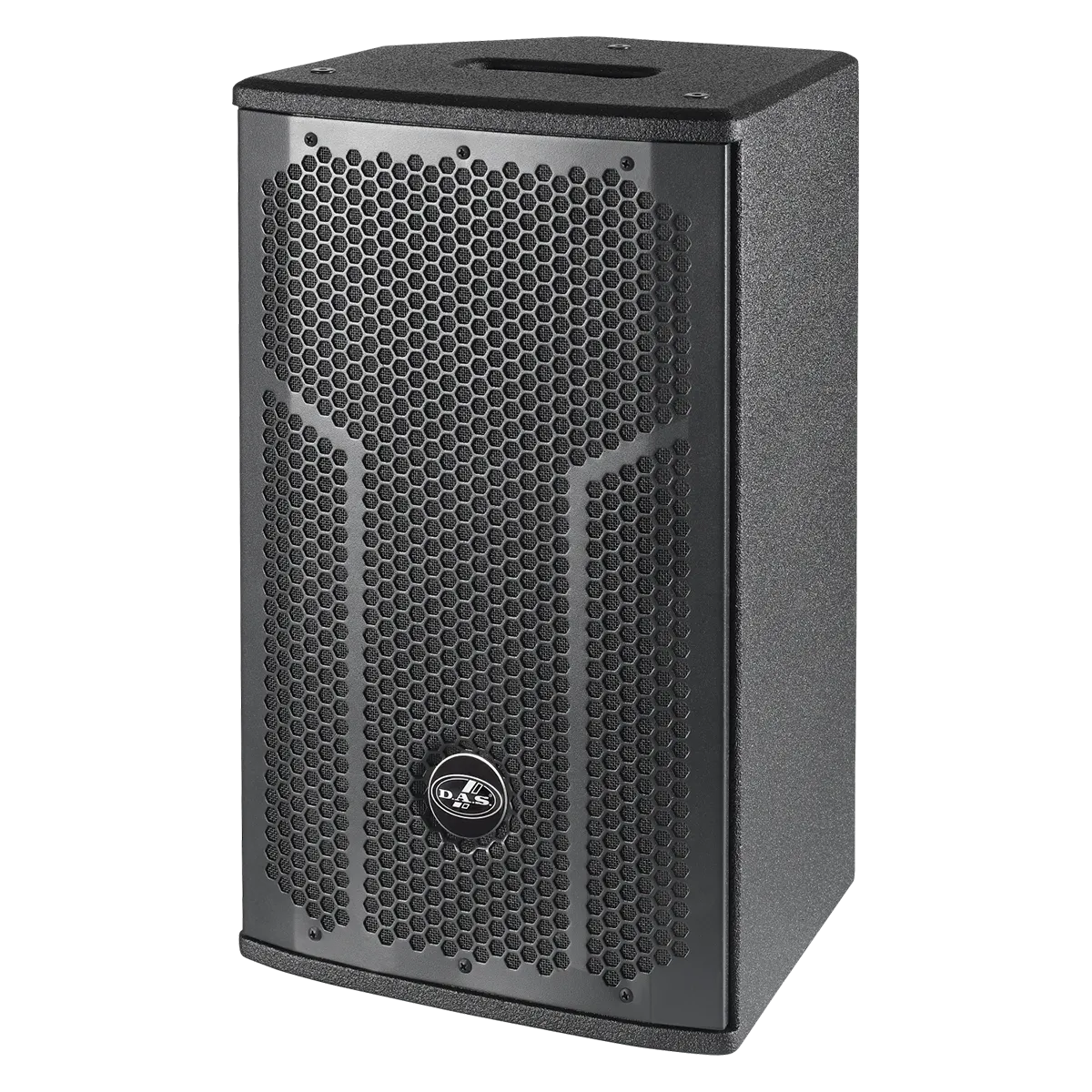

DAS ACTION 508 Speaker Pasif 8 Inch 2 Way 8 Ohm 600 Watt

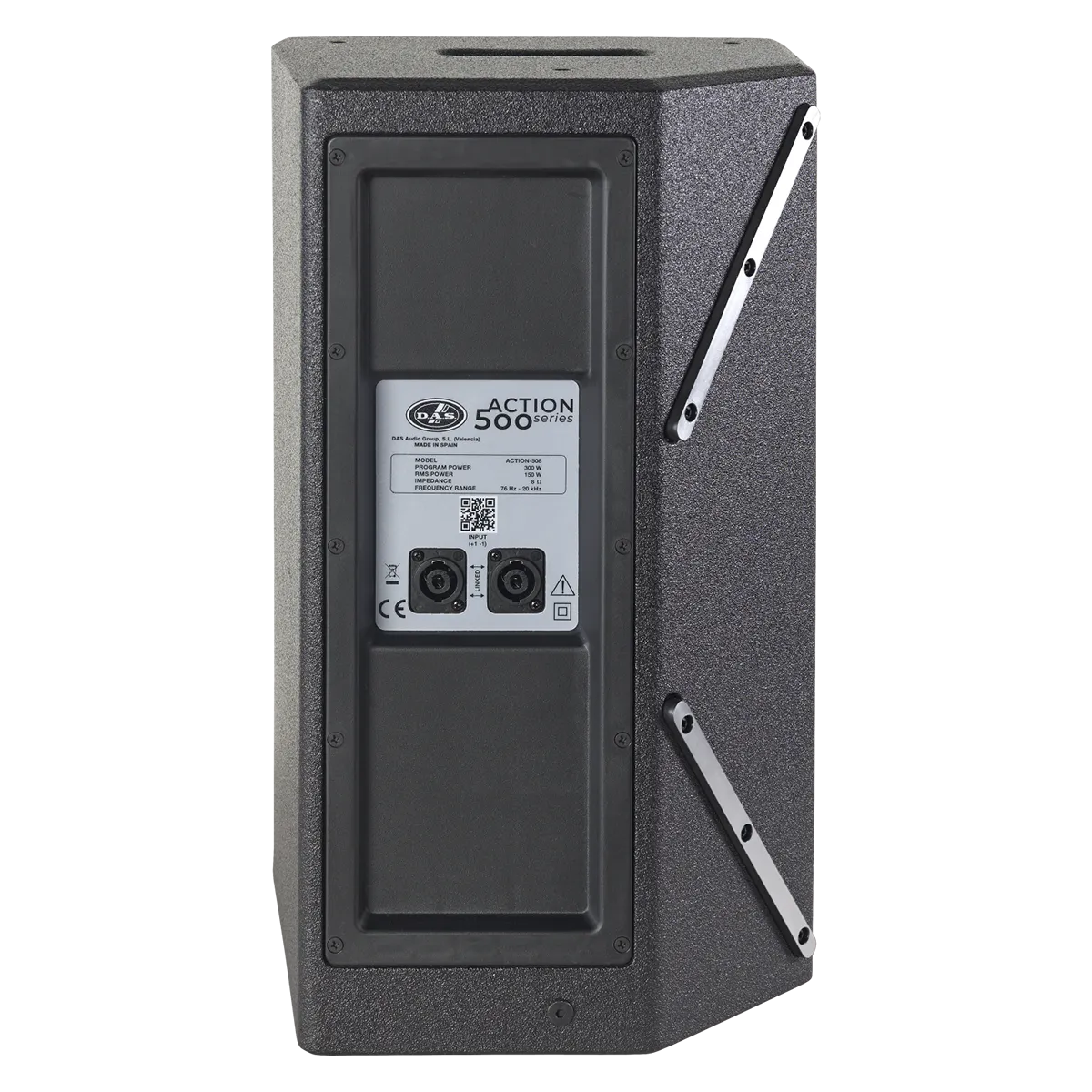

DAS ACTION 508 Speaker Pasif 8 Inch 2 Way 8 Ohm 600 Watt - Image 2

DAS ACTION 508 Speaker Pasif 8 Inch 2 Way 8 Ohm 600 Watt

Passive, 150 W, 8”, 2 way full-range, 90×60 rotatable horn, black

Chat Penjual
Categories: , Tags: , , , Brand:
Das
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

An unparalleled choice when compact size and weight matter, ACTION-508 is a passive system designed to deliver a highly versatile solution, from fixed installations to the popular portable PA application. And its rotatable horn with 90º x 60º dispersion means the enclosure can be used horizontally in a fixed installation, as a stage monitor or even as front fill.
The new 8GV speaker has 150W of power and enhanced excursion capacity for much lower distortion coupled with a higher SPL.
As part of our company culture, all our systems are developed under a single philosophy: to deliver the highest possible quality in terms of both materials and overall system design. In the ACTION-500 series we use the same birch plywood as our touring systems for a tight, natural warm sound found nowhere else on the market.
For long-term optimal performance of the ACTION-500 passive versions, the system can only be a complete sound system when rounded out with our amplifiers and processors with stored presets and limiters.

Features

  • Passive two-way system
  • Birch plywood enclosure
  • Durable ISO-flex paint
  • Recommended processor: DSP-226
  • Recommended amplifier: PA series

Spesifikasi

Performance
Frequency Range (-10 dB) 60 Hz – 20 kHz
Horizontal Coverage (-6 dB) 90º
Vertical Coverage 60º
Nominal Impedance 8 ohms
RMS Power Handling 150 W
Peak Power Handling 600 W
On-axis Sensitivity 1W/1 m 94 dB SPL
Maximum Peak SPL at 1 m 124 dB

Connectors
Audio Input Connector 1 x speakON NL4
Audio Output Connector 1 x speakON NL4
Enclosure
Enclosure Construction Birch Plywood
Enclosure Geometry Trapezoidal
Rigging M8 Rigging Points
Finish ISO-flex Paint
Color Black
Depth 260 mm (10,2 in)
Dimensions ( H x W x D ) 485 x 285 x 260 mm
19,1 x 11,2 x 10,2 in
Net Weight 10,5 kg ( 23,1 lb )
Components
LF Driver 8GV
HF Driver M-34
Horn/Waveguide BCT-96
Shipping
Carton Dimensions ( H x W x D ) 547 x 335 x 307 mm
21,5 x 13,2 x 12,1 in
Shipping Weight 11,5 kg ( 25,3 lb )
