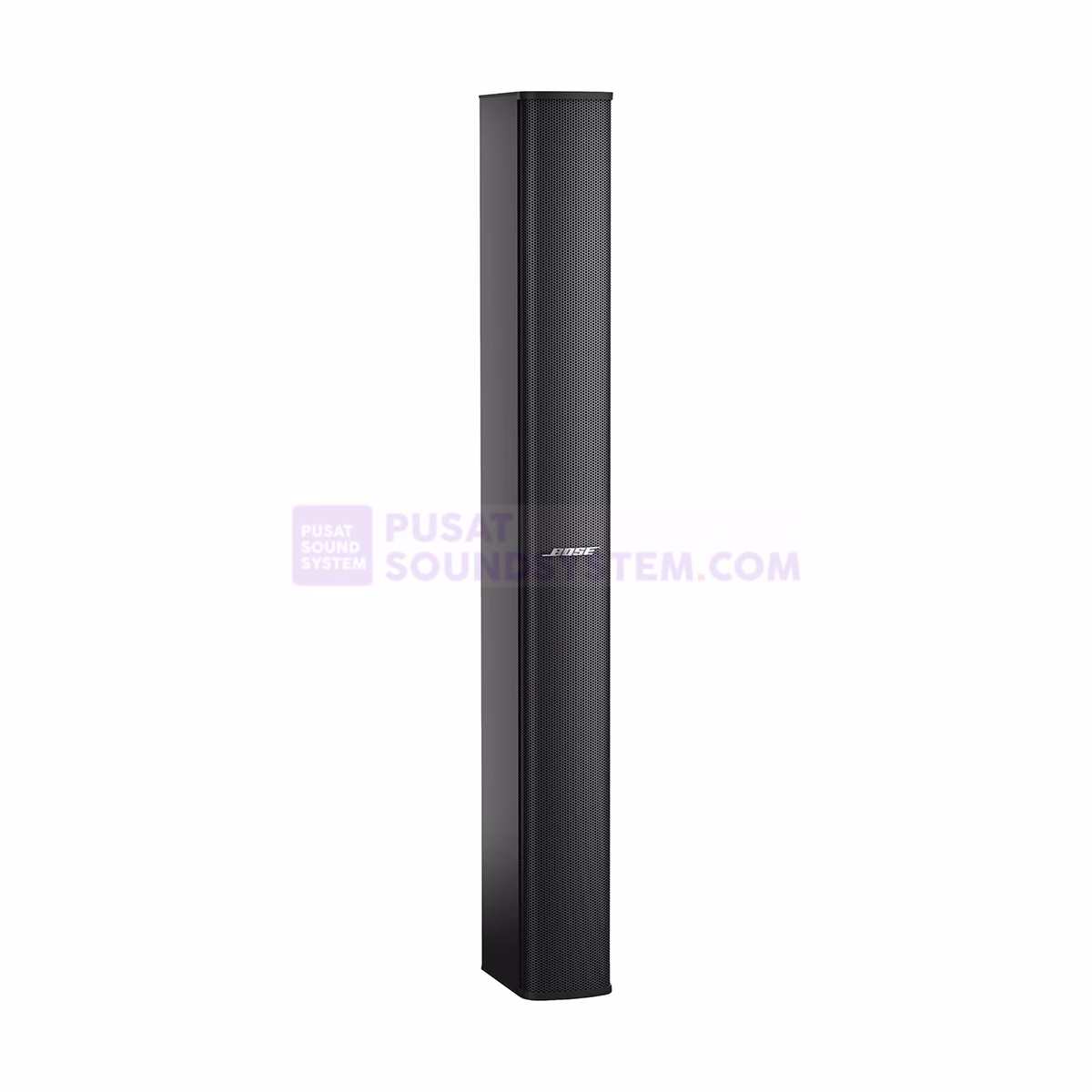

Bose Panaray MSA12X 2.25″ 600W Modular Array Loudspeaker
Panaray Digital Beam-Steering Array Speaker 600W, Black
Description
The Bose Professional Panaray MSA12X is a self-powered digital beam-steering loudspeaker that enables improved room aesthetics, with outstanding vocal intelligibility and tonal consistency. The proprietary Articulated Array transducer configuration allows wide, 160° horizontal coverage throughout the room, and MSA12X’s modular design allows building of vertical arrays using 1-3 units. Dante digital audio network interface comes standard for connection with other Dante-enabled products over Ethernet-based networks.
FEATURES
- Digital beam-steering line array column loudspeaker with onboard DSP and 600 watts (12 x 50 W) of amplification
- Family sound profile with the Panaray MA12EX Loudspeaker

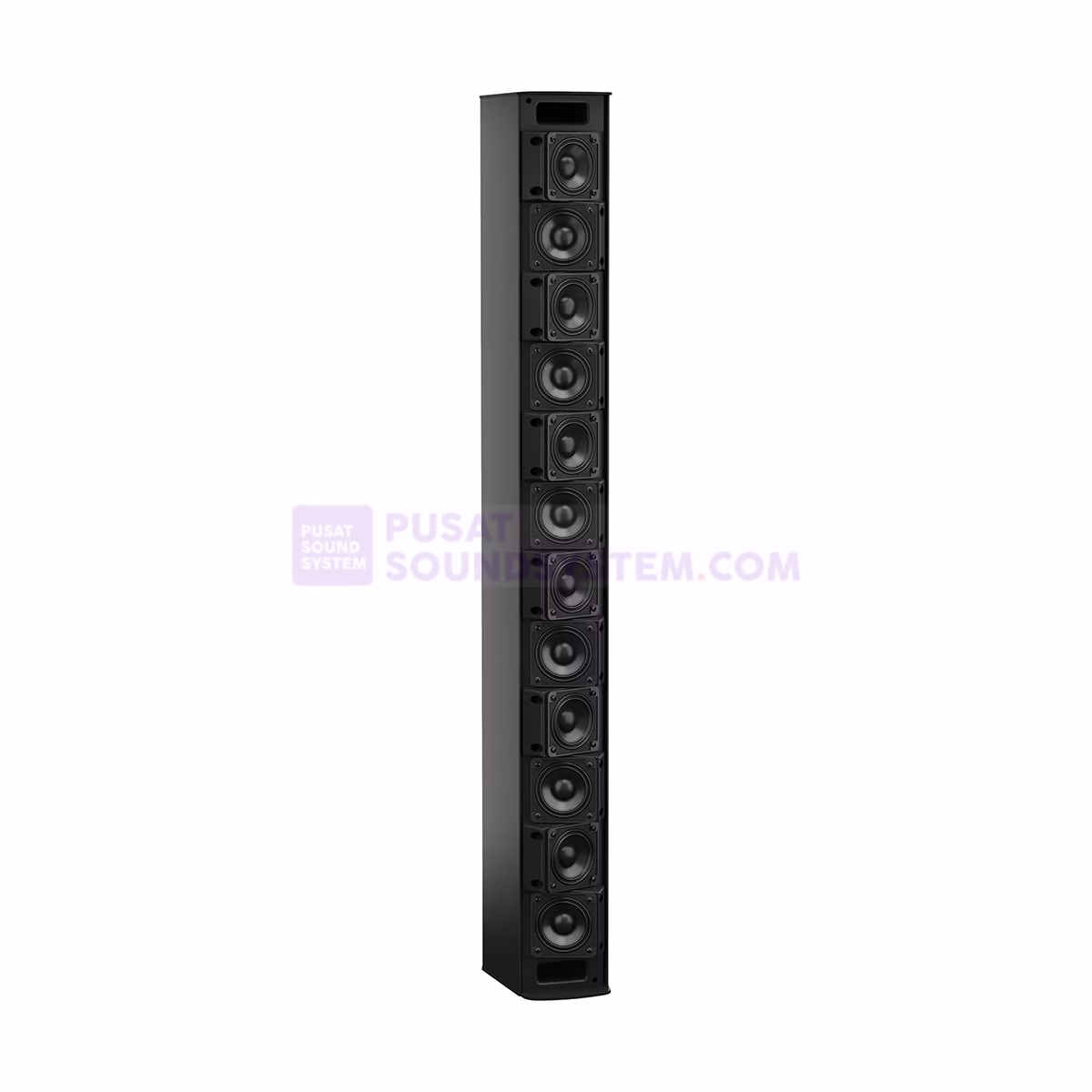

- Twelve (12) x 2.25-inch full-range transducers with 58 Hz – 18 kHz frequency range
- Dante® digital audio network interface and line-level analog input
- Articulated Array® configuration allows wide, 160° horizontal coverage
- Modular design allows building vertical arrays using 1-3 units
- Multiple algorithms for beam steering control – designers can optimize consistency of coverage, tonal balance, and maximum SPL per job
- Supports independent level and EQ control of 2 separate beams per array
- Integrated mounting bracket allows up 90° of horizontal yaw adjustment
- Advanced steering and acoustic coverage prediction using Bose Modeler® software
- System setup, control and monitoring with Bose ControlSpace® Designer™ software
- Available in black or white finish
Applications
- Houses of worship
- Auditoriums
- Transportation facilities
- Conference Rooms
- Lecture Halls
Spesifikasi
Technical Summary
Frequency Range (-10 dB)
58 Hz – 18 kHz
Horizontal Dispersion
160° H
Vertical Opening Angles
Software Adjustable: 1 module: up to 30°, 2-3 modules: up to 40°
Vertical Beam Steering Angles
+ / – 20°
Driver Compliment
Twelve (12) x 2.25-inch full-range transducers
Amplifier Power Handling
600 W (12 x 50 W)
Maximum SPL @ 1 m
112 dB SPL (118 dB SPL peak)
Inputs
Dante® digital audio network interface and line-level analog input
