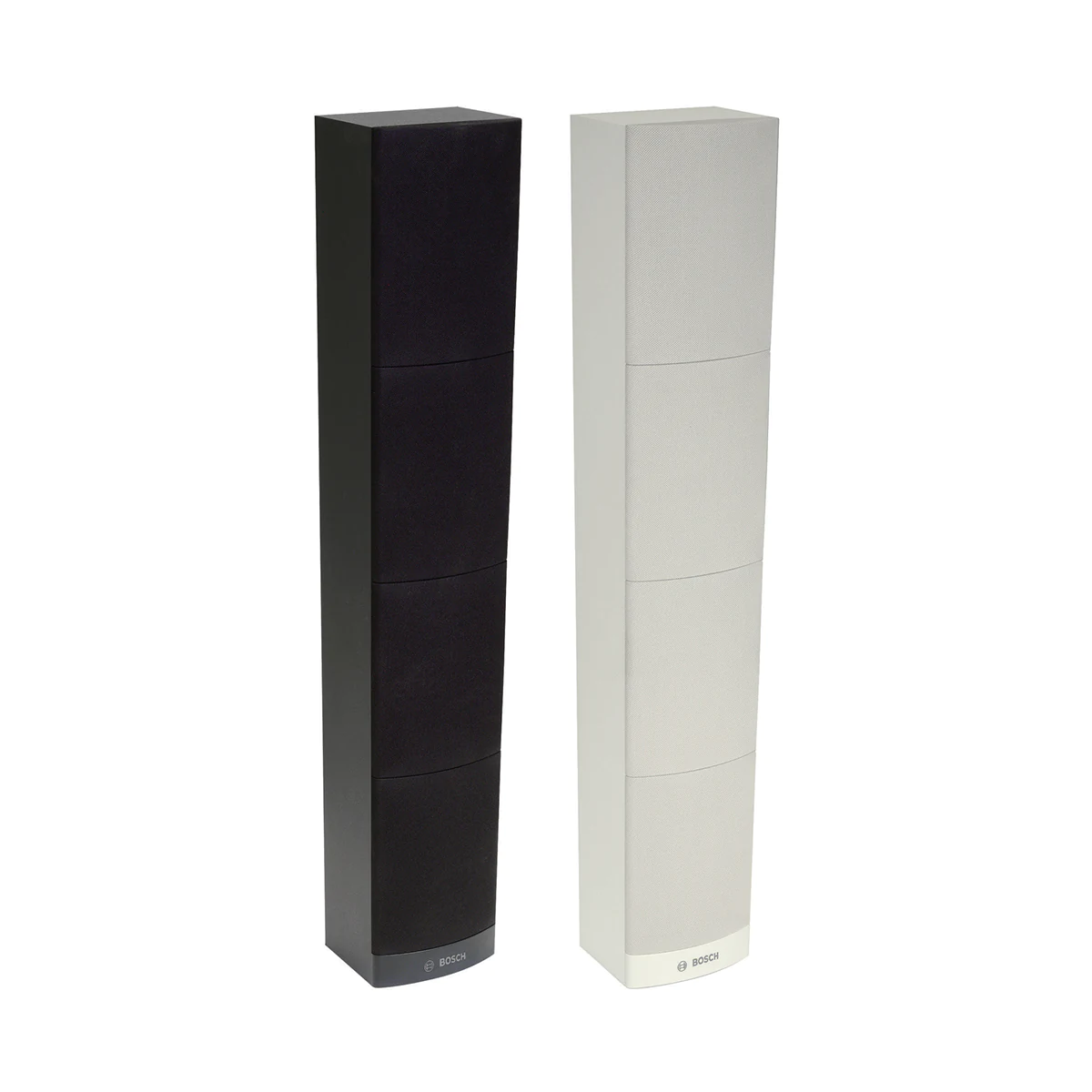

BOSCH LA1-UW24-D Speaker Column Pasif 4×4 Inch 36 Watt (High Impedance)
Column loudspeaker 24 W, MDF enclosure with finewoven cloth fronts, finished in black, supplied with a
swivel wall-mounting bracket.
Description
The LA1‑UW24‑D is a 24 W, general-purpose, costeffective column loudspeaker for indoor use where beaming is desirable, such as places of worship, conference venues, meeting rooms, and canteens. A swivel wall-mounting bracket is supplied as standard. The column loudspeaker is available in black and white.
Fitur
- Good speech intelligibility and background music
reproduction - For applications where directivity is important
- High sensitivity
- Swivel wall-mounting bracket supplied as standard
- Available in black or white
Spesifikasi
| Electrical Specifications | |
|---|---|
| Maximum Power | 36 W |
| Rated Power | 24 W / 12 W / 6 W |
| Sound Pressure Level at 24 W / 1 W (1 kHz, 1 m) | 110 dB / 96 dB (SPL) |
| Effective Frequency Range (-10 dB) | 165 Hz to 16 kHz |
| Opening Angle (1 kHz / 4 kHz -6 dB) | Horizontal: 190° / 88° Vertical: 30° / 8° |
| Rated Input Voltage | 100 V |
| Rated Impedance | 417 ohms |
| Connector | 4-pole push-in terminal block |
| Mechanical Specifications | |
| Dimensions (H x W x D) | 841 x 151 x 129 mm (33.1 x 5.9 x 5.1 in) |
| Weight | 5.5 kg (12.1 lb) |
| Color | Black (D) or White (L) Cabinet / Cloth (D) Matches RAL 9004 / RAL 9004 Cabinet / Cloth (L) Matches RAL 9010 / RAL 7044 |
| Environmental Specifications | |
| Operating Temperature | -25ºC to +55ºC (-13ºF to +131ºF) |
| Storage Temperature | -40ºC to +70ºC (-40ºF to +158ºF) |
| Relative Humidity | < 95% |
