Bose FreeSpace IZA 190-HZ Zone Amplifier 1 Channel 90 Watt
90-watt, High-impedance Zone Amplifier with Opti-voice Paging
Cek Harga
Description
The Bose FreeSpace IZA 190-HZ is tailor-made for music and paging applications. This integrated zone amplifier delivers premium sound and features streamlined controls that are a breeze to operate. And if you use it with DS 16 and DS 40 loudspeakers, onboard EQ presets give you further sound optimization. The IZA 190-HZ boasts a Mic/Line input for paging purposes, plus inputs for your music player and an auxiliary input, while Opti-voice paging supplies smooth transition between music and announcements.
Bose FreeSpace IZA 190-HZ Integrated Zone Amplifier Features:
- 90W high-impedance zone amplifier for music and paging applications
- Streamlined controls are a breeze to operate
- Onboard EQ presets give you further sound optimization with DS-series speakers
- Boasts a Mic/Line input for paging purposes, plus inputs for your music player and an auxiliary input
- Opti-voice paging supplies smooth transition between music and announcements
- A great choice for small spaces like storefronts, lobbies, and auxiliary zones
Applications
- Retail stores
- Restaurants and bars
- Hospitality venues
- Conference centers
- Schools
- Auxiliary zones
Spesifikasi
| Amplifier Power | 1 x 90 W @ 70/100 V |
| Frequency Response | 60 Hz to 20 kHz (+0/-3 dB, @ 1 W reference 1 kHz) |
| THD+N | ≤0.1% (at full rated power) |
| Crosstalk | ≤-60 dBV (below rated power, 1 kHz) |
| Dynamic Range | 88 dB |
| AD/DA Conversion | 24-bit / 48 kHz |
| Audio Processing Functions | Loudspeaker EQ, Bose Opti-voice paging, Dynamic equalization |
| Presets | FreeSpace DS 16 and DS 40 loudspeakers, High-Pass Filter (HPF) |
| Audio Latency | 10.4 ms (any input to speaker output or aux output) |
| Inputs | Line Inputs: 2 x unbalanced (stereo RCA) Mic/Line Inputs: 1 x balanced (combo XLR-1/4″ / 6.35 mm TRS) Page Input: 1 x balanced mic/line (4-pin Euroblock) Auxiliary Input: 1 x unbalanced line (1/8″ / 3.5 mm TRS) |
| Input Range | Line Inputs: -10 dBV to +10 dBV Mic/Line Inputs: -60 dBV to +10 dBV Page Input: -60 dBV to +10 dBV Auxiliary Input: -0 dBV to +10 dBV |
| Adjustment Range | Line Inputs: -20 dB to +20 dB Mic/Line Inputs: 0 dB to +50 dB Page Input: 0 dB to +50 dB Auxiliary Input: Fixed |
| Input Impedance | Line Inputs: 20 kOhms Mic/Line Inputs: 2 kOhms Page Input: 2 kOhms Auxiliary Input: 20 kOhms |
| Maximum Input Level | +10 dBV |
| Sensitivity | Auxiliary Input: 0 dBV |
| Nominal Input Level | Line Inputs: 0 dBV Mic/Line Inputs: -40 dBV Page Input: -40 dBV Auxiliary Input: 0 dBV |

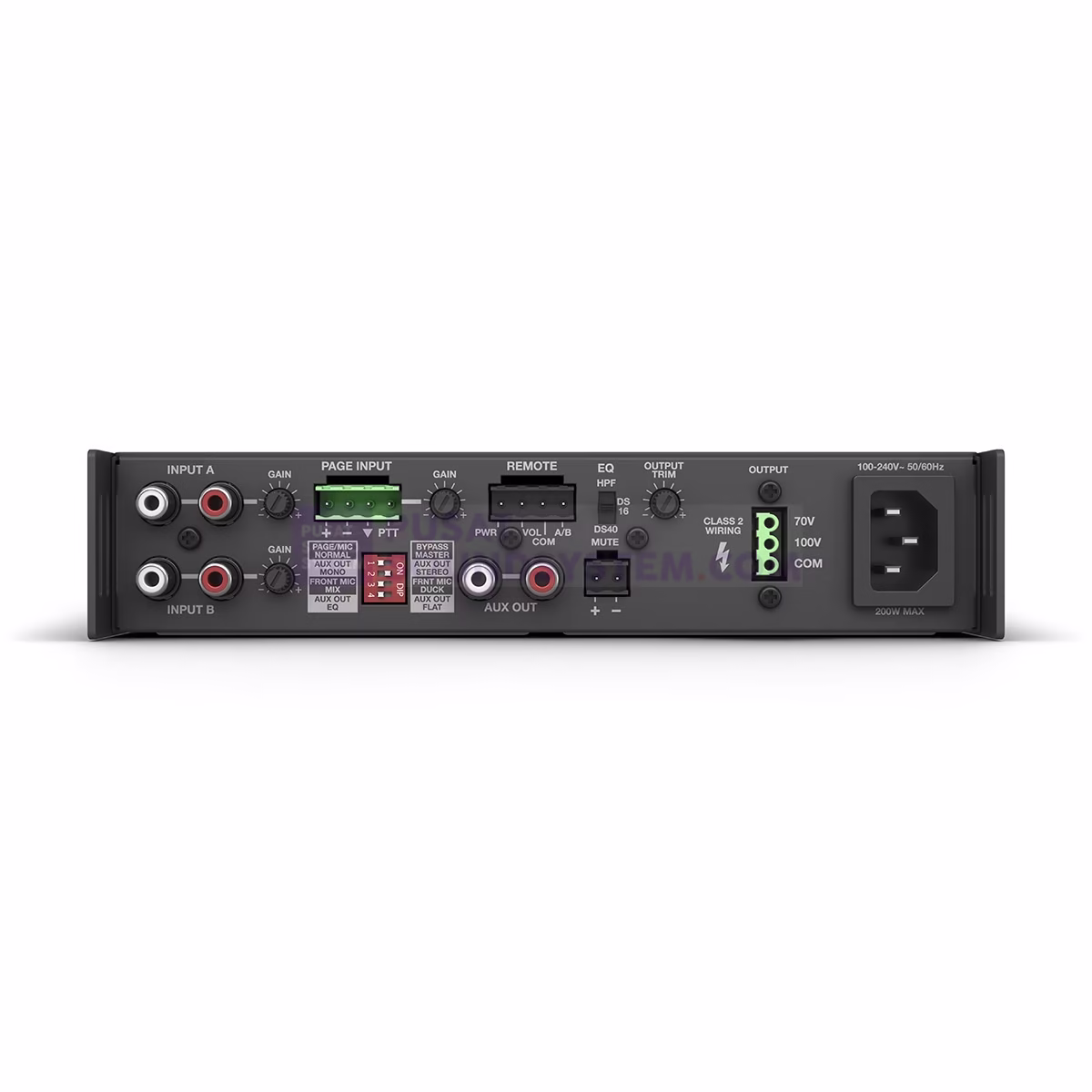

| Outputs | Amplifier Outputs: 1 (3-pin inverted Euroblock) Auxiliary Output: 1 x unbalanced (stereo RCA) |
| Output Impedance | Auxiliary Output: 400 Ohms |
| Nominal Output Level | Amplifier Outputs: 1 x 90 W @ 70/100 V Auxiliary Output: 0 dBV (max) |
| Indicators & Controls | LED Status Indicators: Power: Blue Input Clip: Red (-3 dBFS) Controls, Front Panel: Power On/Off, Input Select (A/B), Tone Controls (Treble/Bass), Mic/Line Gain, Master Level Controls, Rear Panel: Amplifier Mode DIP switch, Loudspeaker EQ preset selector, Input Gain (A/B/Page mic), Output trim |
| Control Input | Remote input for Volume Control with A/B Select user interface Mute input for amplifier muting via contact closure |
| Mains Voltage | 100 – 240 VAC (±10%, 50/60 Hz) |
| Power Consumption | 15 W (Standby), 200 W (Max) |
| Peak Inrush Current | 13.9 A (230 V / 50 Hz) 7.6 A (120 V / 60 Hz) |
| Overload Protection | High temperature, short |
| Power Connector | Standard IEC (C14) |
| Cooling System | Natural convection |
| Rack Space | 1 RU high, half-rack wide |
| Dimensions (H x W x D) | 1.8 x 8.4 x 12.2″ / 45.7 x 213.4 x 309.9 mm |
| Weight | 7.0 lb / 3.2 kg |
Packaging Info
| Package Weight | 8.92 lb |
| Box Dimensions (LxWxH) | 18.4 x 11 x 4.1″ |
