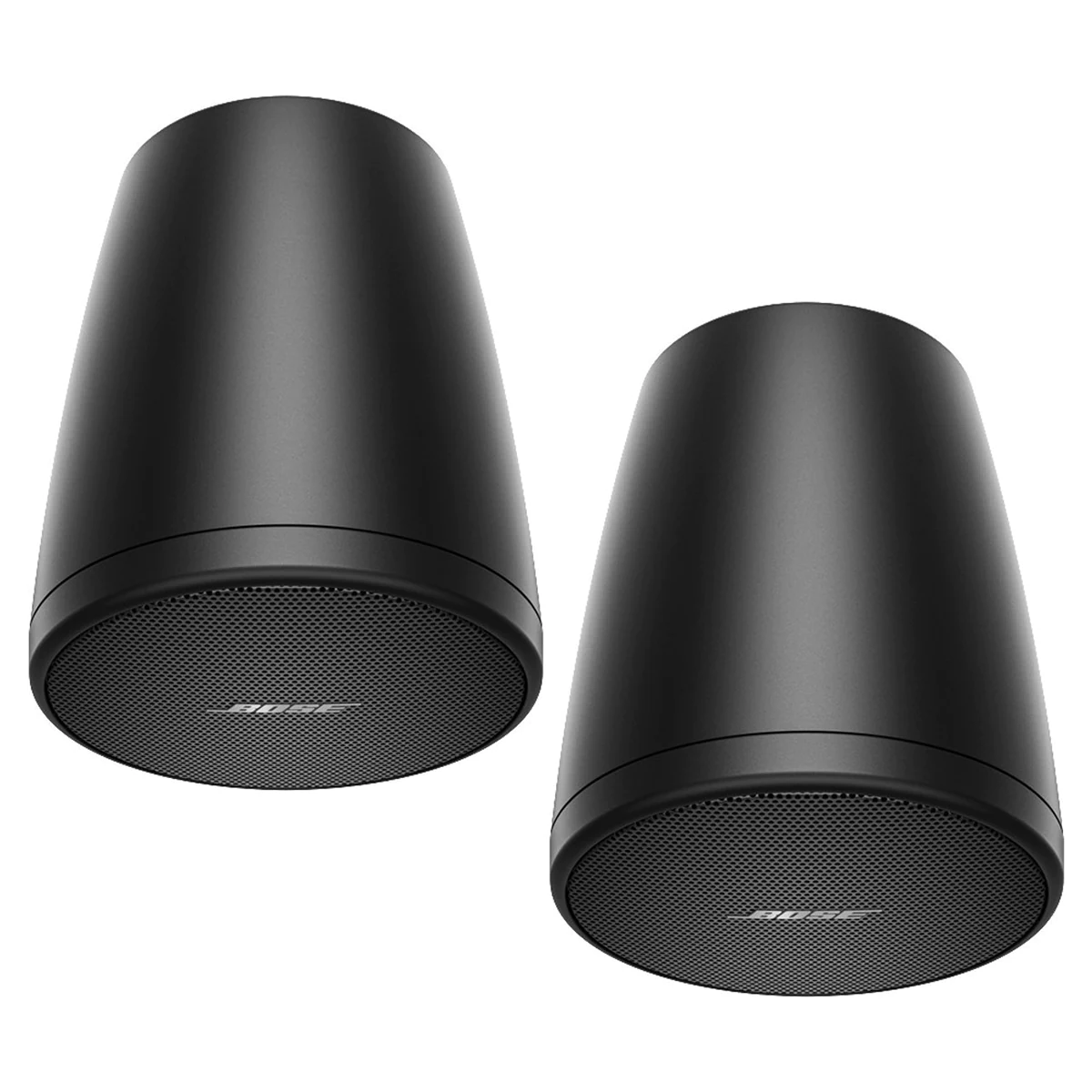

Bose FreeSpace FS2P Speaker Pendant Ceiling 2.25 Inch 16 Ohm 64 Watt (High Impedance, Waterproof, EN-54)
Bose FreeSpace FS2P Speaker Pendant Ceiling 2.25 Inch 16 Ohm 64 Watt (High Impedance, Waterproof, EN-54) - Image 2
Bose FreeSpace FS2P Speaker Pendant Ceiling 2.25 Inch 16 Ohm 64 Watt (High Impedance, Waterproof, EN-54) - Image 3
Bose FreeSpace FS2P Speaker Pendant Ceiling 2.25 Inch 16 Ohm 64 Watt (High Impedance, Waterproof, EN-54) - Image 4

Bose FreeSpace FS2P Speaker Pendant Ceiling 2.25 Inch 16 Ohm 64 Watt (High Impedance, Waterproof, EN-54)

16-watt, 16-ohm Pendant-mount Loudspeaker with 2.25-inch Full-range Driver, 140-degree Coverage, and 70-volt/100-volt Transformer Taps

Chat Penjual
Category: Tags: , Brand:
Bose
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The FS2P is a dedicated pendant model with a full-range 2.25-inch transducer, low frequency range down to 83 Hz, and sensitivity of 87 dB SPL / 1W @ 1m.

FEATURES

  • Full-range 2.25-inch transducer, low-frequency range down to 83 Hz, 16-ohm and 70/100V operation
  • Stylish pendant enclosure with single-point suspension, perfect for open-ceiling applications or any installation requiring the aesthetic and performance capabilities of a pendant design
  • Maintain consistent tonal quality with shared voicing across all FS models
  • Hear the best of both — music and voice — with transducers that offer clear voice reproduction and smooth response for background music
  • Blend with more room designs with updated enclosures — available in black and white — that pair modern aesthetics with practical features, including removable logos
  • Tackle site-specific challenges with the support of a full suite of accessories, designed to handle a wide range of applications and mounting options
  • Install with ease — all models feature Euroblock inputs and front-baffle input location on in-ceiling models
  • Support public safety — all models are UL 1480 ULC-S541-listed for use in fire alarm and signaling systems in life safety applications



Spesifikasi

SINGLE LOUDSPEAKER PERFORMANCE
Frequency Response (-3 dB) (1)  95 – 16,000 Hz
Frequency Range (-10 dB) (1) 83 – 19,000 Hz
Nominal Coverage Angle (1 – 4 kHz)  140°
Nominal Coverage (1 – 10 kHz)  130°
  AES transducer test (5)  Bose extended-lifecycle test (4)
Power Handling, Long-term Continuous  20 W  16 W
Power Handling, Peak  80 W  64 W
Sensitivity SPL/1W @ 1 m (2)  87 dB  87 dB
Calculated Maximum SPL @ 1 m (3)  100 dB 99 dB
Calculated Maximum SPL @ 1 m, Peak  106 dB  105 dB
Loudspeaker EQ No Bose EQ required when speaker used for general use. Bose EQ Voicing and SmartBass
available. EN 54-24 Equalization is required for EN 54-24 use; refer to FS2P EN 54-24 Certified
ratings document on pro.bose.com for details.
Recommended High-Pass Protection  85 Hz with minimum 24-dB/octave filter
Transformer taps  70V: 1, 2, 4, 8, 16 W, bypass
  100V: 2, 4, 8, 16 W, bypass
TRANSDUCERS

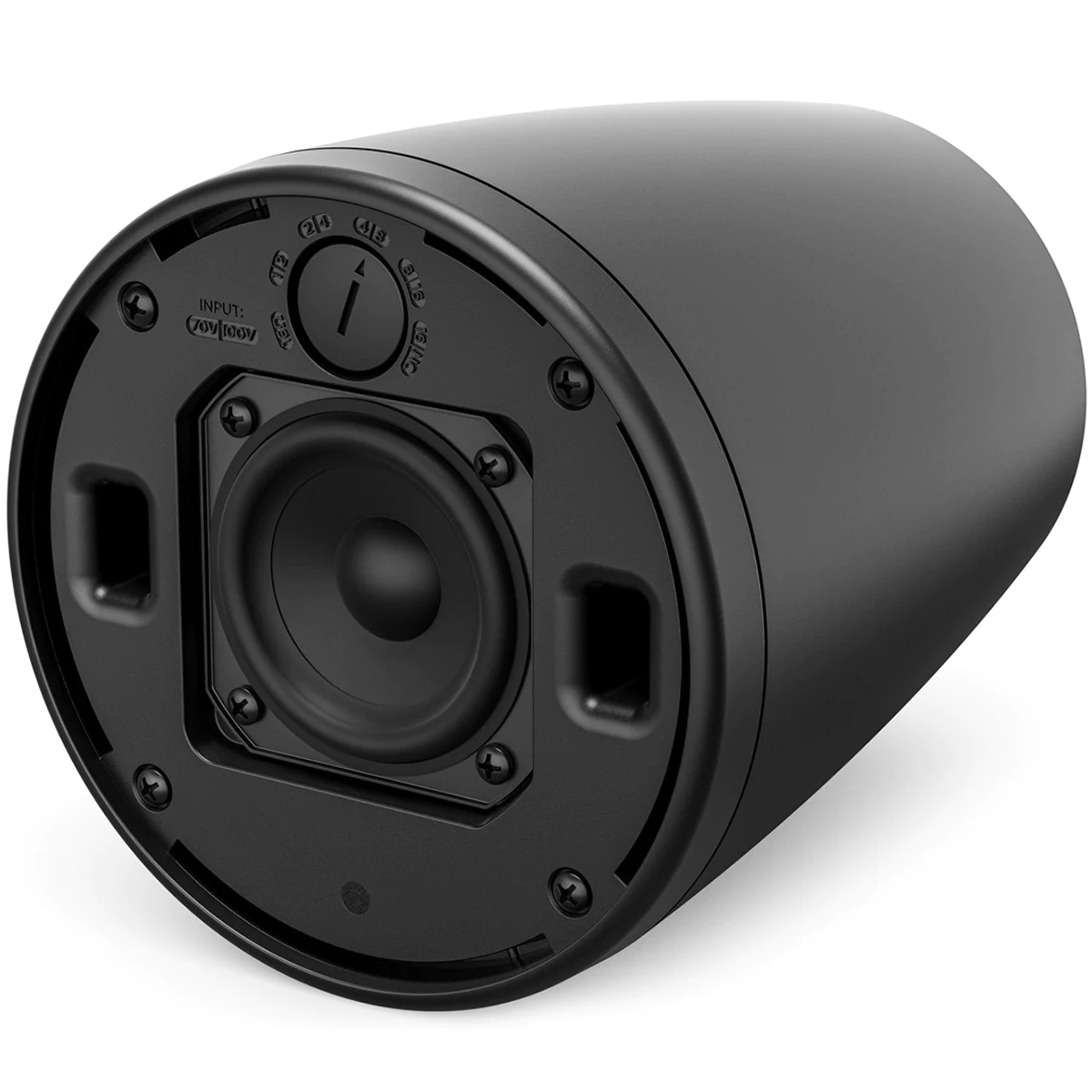

Full-Range Driver  1 × 2.25-inch woofer (57 mm)
Nominal Impedance  16 ohms (transformer bypass)
PHYSICAL
Enclosure Material  Engineered plastics
Grille  Perforated steel, powder-coated finish
Logo  Removable
Color  Black (similar to RAL 9005), White (similar to RAL 9003)
Environmental  Indoor only
Safety Agency Certification: EN 54-24: 2008 for Voice Alarm Systems, UL 1480 UUMW, CAN/ULC-S541 UUMW7 for
Speakers for Fire Alarm and Signaling Systems. Installation: NFPA 70, NFPA 72, CSA C22.1
Section 32.
For EN 54-24 specifications, Refer to FS2P EN 54-24 Certified Ratings document on pro.bose.com.
EN 54-24 Equalization required for EN 54-24 use.
Operating Temperature Range  0 °C to 50 °C (32 °F to 122 °F)

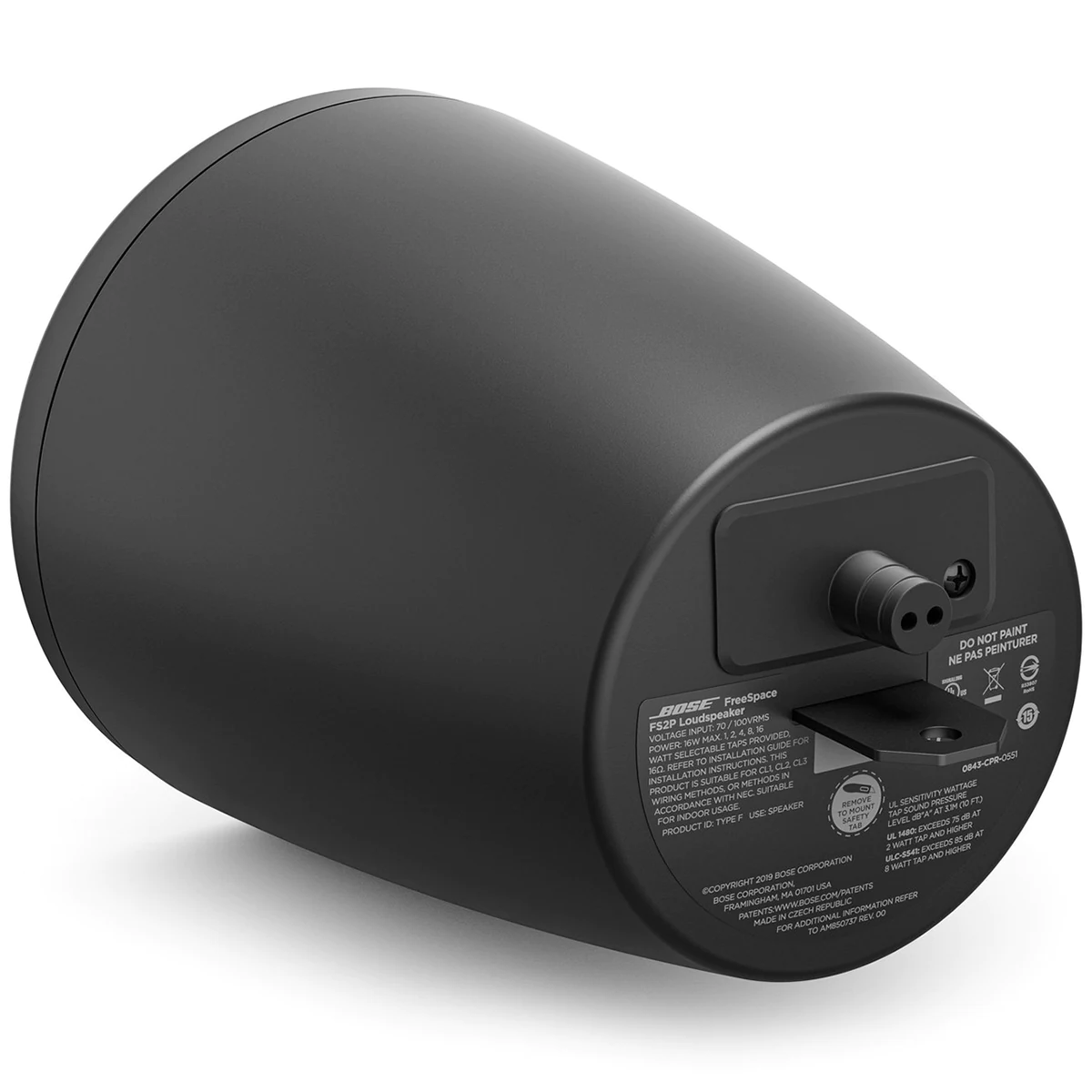

Connectors Euroblock 6-pin connector with loop-through, mounted on top. Accepts 18 AWG (0.8 mm2) to 14
AWG (2.5 mm2) size wire. Includes input cover.
Suspension/Mounting  Each FS2P has one (1) suspension attachment point and one (1) safety cable attachment point Included is one (1) 4.5 m (15 ft) adjustable pendant suspension cable
Product Dimensions (Enclosure Diameter × Depth)  149 × 183 mm (5.9 × 7.2 in)
Product Dimensions with Suspension Cable
Attachment Point (Enclosure Diameter × Depth)		 149 × 215 mm (5.9 × 8.5 in)
Net Weight, Loudspeaker with Grille (Single)  1.47 kg (3.25 lb)
Shipping Weight (Pair)  4.06 kg (8.95 lb)
Included Accessories  Each FS2P includes one (1) 4.5 m (15 ft) adjustable pendant suspension cable,
four (4) cable ties, one (1) input cover and one (1) safety cable attachment
Optional Accessories  Pendant Suspension Cable kit (2-pack), Ceramic Terminal and Thermal Fuse Kit (10-pack)
PRODUCT CODES
841153-0310  FREESPACE FS2P PAIR BLK
841153-0410  FREESPACE FS2P PAIR WHT
