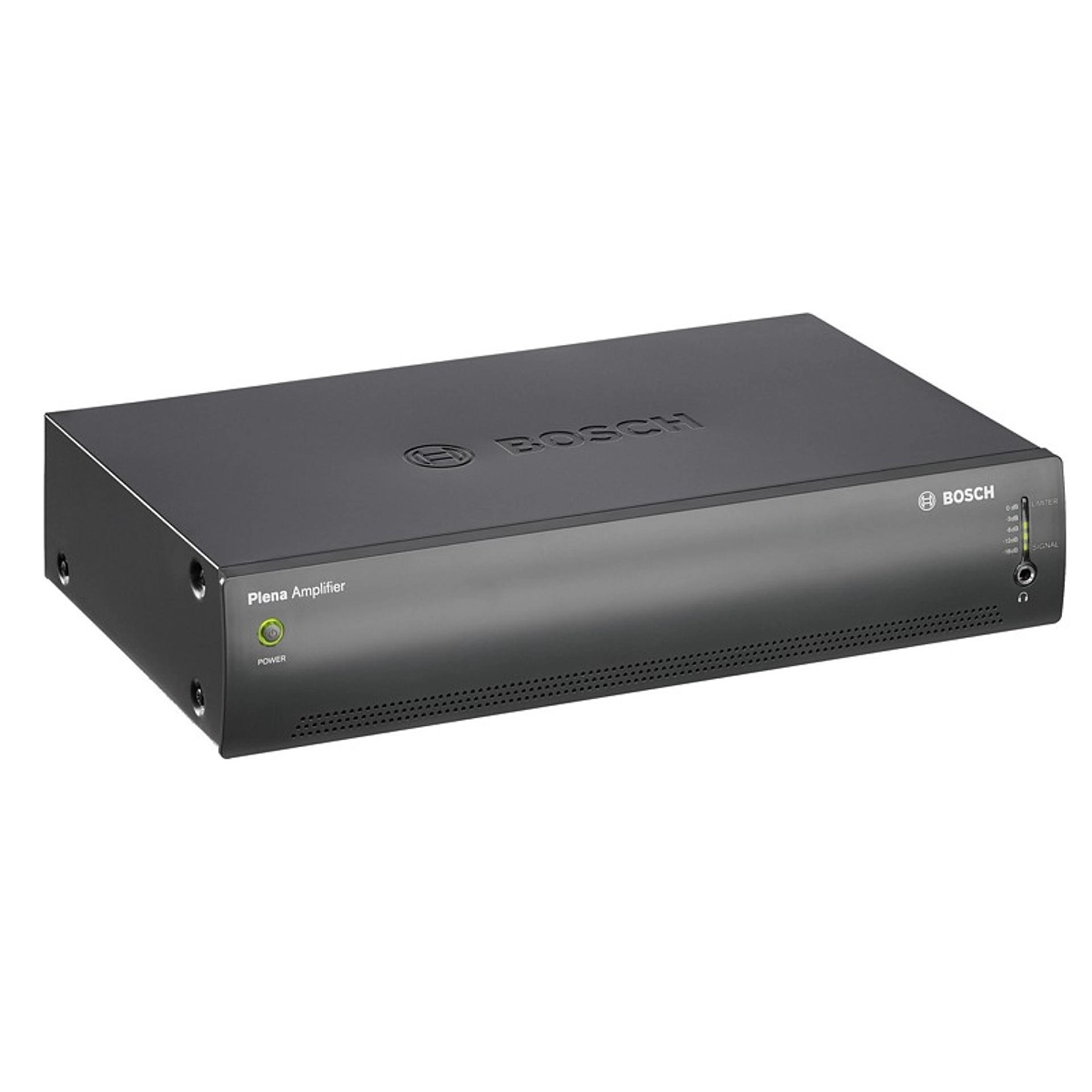

BOSCH PLE-1P240-EU
Power amplifier, 240 W, 100 VAC / 70 VAC
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
The PLE-1P120-EU and PLE-1P240-EU are two highpower plug-and-play cost effective power amplifiers that deliver 120 and 240 Watts to constant voltage or 8 ohm loads. Built with premium quality and protections, they offer basic functionality at a budget price. The amplifiers offer straight 1 V and 100 V line in, and 70 V, 100 V and 8 ohms out. They can extend the power of the PLE- series mixer amplifiers or be combined with the PLE-10M2-EU mixer, or work anywhere where more power on an existing 100 V line is needed or when a line level signal is provided.
Fitur
- 1 V line level balanced input
- 100 V input for slave operation on 100 V speaker line
- 240 W power amplifier in a compact housing
- 24 VDC backup power with built in charger
- 70 V, 100 V and 4 ohm outputs
- Temperature-controlled forced front to back ventilation (directly stackable)
Spesifikasi
| Technical Specifications | |
|---|---|
| Electrical | |
| Mains power supply | Voltage: 115 – 230 VAC ±10%, 50/60 Hz |
| Inrush Current (PLE-1P120-EU) | 4.5/9 A (230/115 VAC) |
| Inrush Current (PLE-1P240-EU) | 9/18 A (230/115 VAC) |
| Power consumption (PLE-1P120-EU) | 380 VA |
| Power consumption (PLE-1P240-EU) | 760 VA |
| Battery power supply | |
| Voltage | 24 VDC, +10% / -15% |
| Current (PLE-1P120-EU) | 5.5 A |
| Current (PLE-1P240-EU) | 11 A |
| Charge current | 0.5 ADC |
| Charge float voltage | 27.3 VDC |
| Power consumption (PLE-1P120-EU) | |
| Max power (mains) | 227 W |
| -6 dB (mains) | 130 W |
| Idle (mains) | 12 W |
| Max power (24 V) | 7 A (150 W) |
| -6 dB (24 V) | 4.4 A (194 W) |
| Idle (24 V) | 0.3 A (7 W) |
| Power consumption (PLE-1P240-EU) | |
| Max power (mains) | 451 W |
| -6 dB (mains) | 244 W |
| Idle (mains) | 16 W |
| Max power (24 V) | 12 A (290 W) |
| -6 dB (24 V) | 8.1 A (194 W) |
| Idle (24 V) | 0.3 A (7 W) |
| Performance | |
| Max / rated power (PLE-1P120-EU) | 180 W / 120 W |
| Max / rated power (PLE-1P240-EU) | 360 W / 240 W |
| Power reduction on backup power | -1 dB |
| Frequency response | 50 Hz to 20 kHz (+1/‑3 dB @ ‑10 dB ref. rated output) |
| Distortion | <1% @ rated output power, 1 kHz |

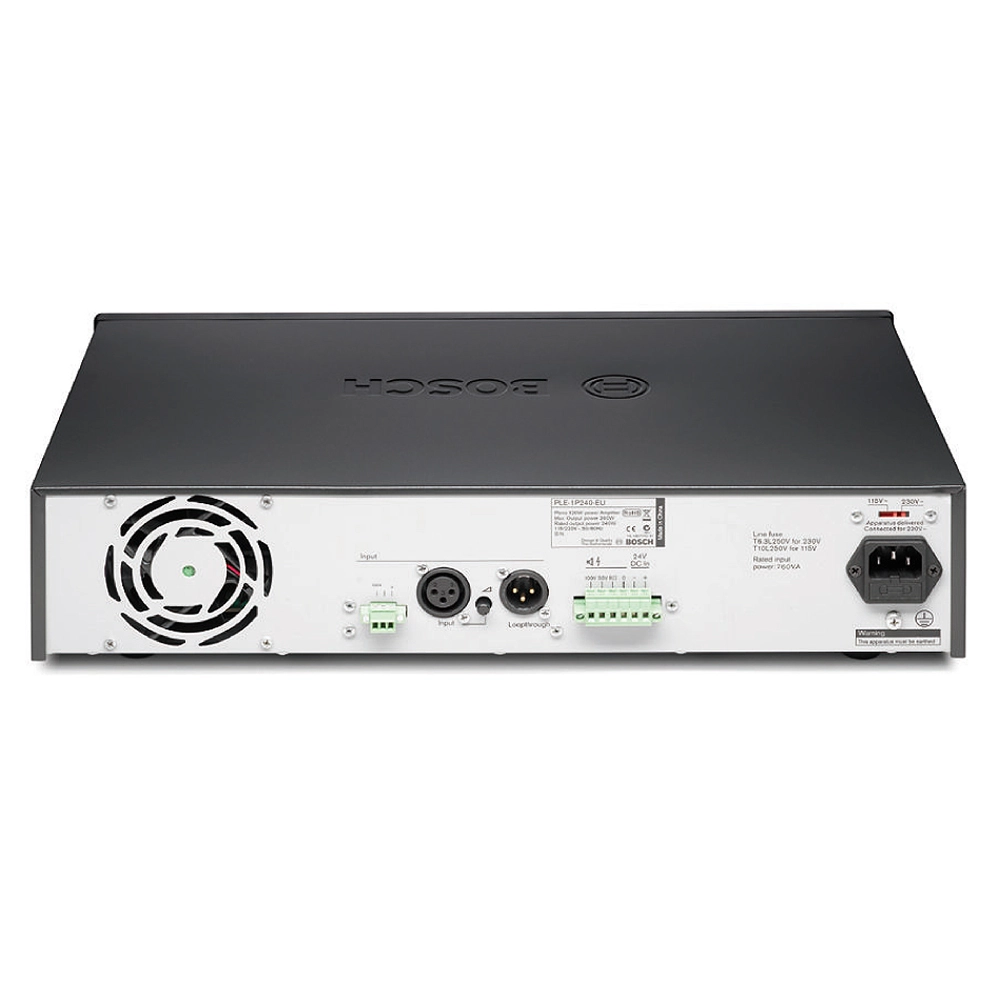

| Inputs | |
| Connector 1 | 3-pin XLR, balanced |
| Sensitivity | 1 V |
| Impedance | 20 kohm |
| Connector 2 | 3-pin Euro style, balanced |
| Sensitivity | 100 V |
| Impedance | 300 kohm |
| Dynamic range | 100 dB |
| CMRR (mic) | >40 dB (50 Hz to 20 kHz) |
| Loudspeaker outputs | |
| Loudspeaker output 70 V / 100 V | Euro style pluggable screw terminals |
| Loudspeaker output 8 ohm | Euro style pluggable screw terminals |
| Ple-1P120-EU | 31 V (120 W) |
| Ple-1P240-EU | 44 V (240 W) |
| Mechanical | |
| Dimensions (H x W x D) | 100 x 430 x 270 mm (19″ wide, 2U high) |
| Mounting | Stand-alone, 19″ rack |
| Color | Charcoal |
| Weight (PLE-1P120-EU) | Approx. 10.5 kg |
| Weight (PLE-1P240-EU) | Approx. 12.5 kg |
| Environmental | |
| Operating temperature | -10 ºC to +45 ºC |
| Storage temperature | -40 ºC to +70 ºC |
| Relative humidity | <95% |
| Acoustic noise level of fan | <40 dB SPL @ 1 m temperature controlled |
