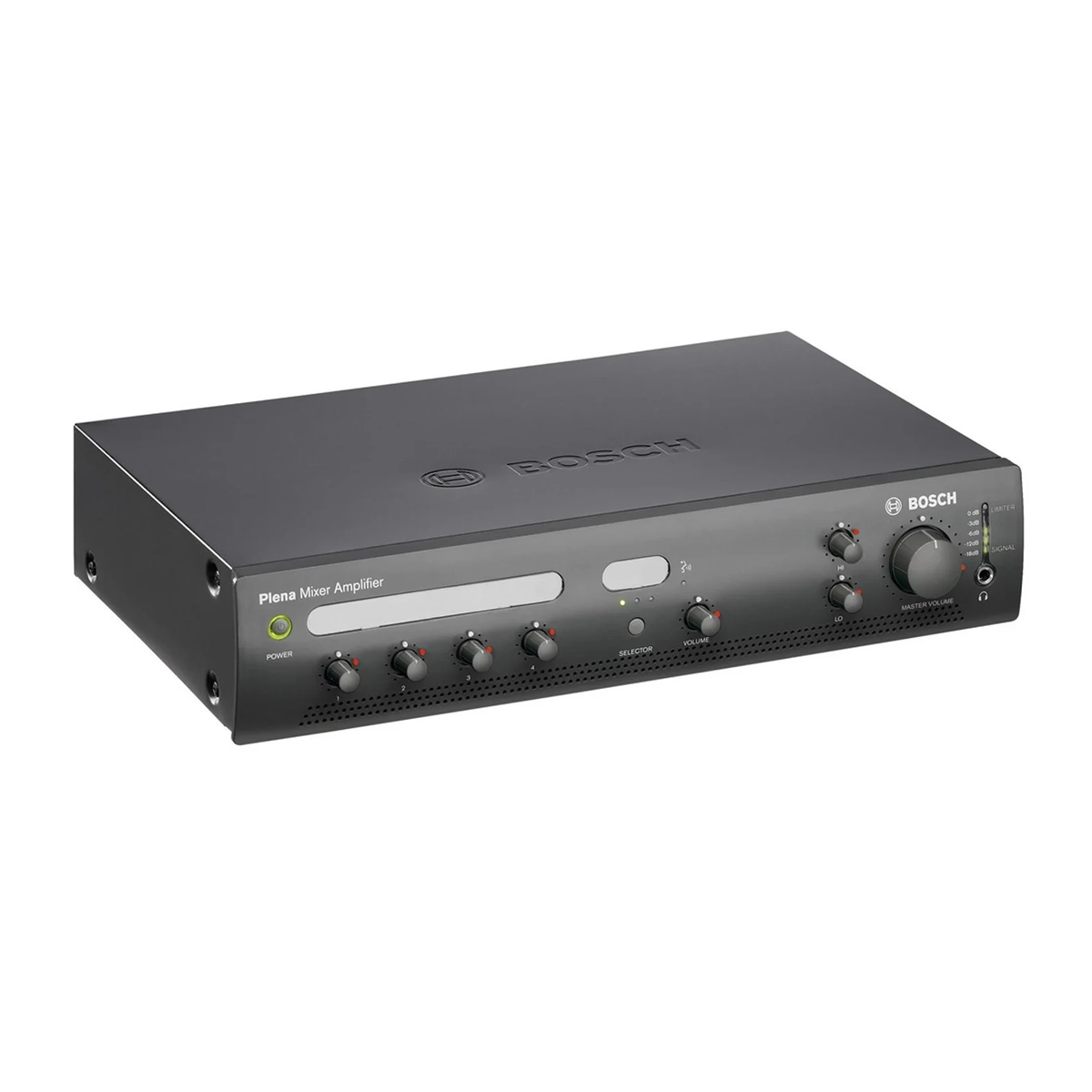

BOSCH PLE-1MA120-EU
BOSCH PLE-1MA120-EU - Image 2

BOSCH PLE-1MA120-EU

Mixer amplifier, 120 W, 4 microphones and 3 background music (BGM) inputs.

Chat Penjual
Categories: , Tags: , , , , , , Brand:
Bosch
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

These Plena mixer amplifiers are high performance, professional public address units with modern state of the art features. They are easy to use, taking the complexity away from the user and putting it where it belongs, inside the equipment. Providing a crisp call or clear music is as easy as turning on the radio. The amplifier is also surprisingly affordable, without sacrificing features such as ducking, priority and flexibility.

Fitur

  • 100 V and telephone input with priority & VOX
  • 2-tone chime
  • 4 microphone/line inputs, plus 3 music source inputs
  • Announcement only output, 3-wire volume override
  • Outputs for line out and music only out
  • Unique easy-to-use intuitive tone controls
  • Voice-activated emergency override
  • Wide range of power (30, 60 and 120 Watts)

PLE Amplifier Specifications
Parameter PLE-1MA030-EU PLE-1MA060-EU PLE-1MA120-EU
Mains Power Supply 230 VAC ±10%, 50/60 Hz 230 VAC ±10%, 50/60 Hz 230 VAC ±10%, 50/60 Hz
Inrush Current 4.5 A 5 A 10 A
Power Consumption 100 VA 200 VA 400 VA
Frequency Response 50 Hz to 20 kHz (+1/−3 dB @ -10 dB ref. rated output) 50 Hz to 20 kHz (+1/−3 dB @ -10 dB ref. rated output) 50 Hz to 20 kHz (+1/−3 dB @ -10 dB ref. rated output)
Distortion <1% @ rated output power, 1 kHz <1% @ rated output power, 1 kHz <1% @ rated output power, 1 kHz
Bass Control Max -12/+12 dB Max -12/+12 dB Max -12/+12 dB
Treble Control Max -12/+12 dB Max -12/+12 dB Max -12/+12 dB
Mic/Line Inputs 4 x (Push-to-talk contact, balanced) 4 x (Push-to-talk contact, balanced) 4 x (Push-to-talk contact, balanced)
Sensitivity (Mic/Line) 1 mV (mic), 1 V (line) 1 mV (mic), 1 V (line) 1 mV (mic), 1 V (line)
Impedance (Mic/Line) >1 kΩ (mic), >5 kΩ (line) >1 kΩ (mic), >5 kΩ (line) >1 kΩ (mic), >5 kΩ (line)
Dynamic Range 93 dB 93 dB 93 dB
S/N (Mic) >63 dB >63 dB >63 dB
S/N (Line) >70 dB >70 dB >70 dB
Headroom >17 dB >17 dB >17 dB
Loudspeaker Output (100V) Max: 45 W, Rated: 30 W Max: 90 W, Rated: 60 W Max: 180 W, Rated: 120 W
Loudspeaker Output (4 Ohm) 11 V (30 W) 16 V (60 W) 22 V (120 W)
Dimensions (H x W x D) 100 x 430 x 270 mm 100 x 430 x 270 mm 100 x 430 x 270 mm
Weight 5 kg 8.5 kg 10.5 kg
Operating Temperature -10 ºC to +45 ºC -10 ºC to +45 ºC -10 ºC to +45 ºC
Storage Temperature -40 ºC to +70 ºC -40 ºC to +70 ºC -40 ºC to +70 ºC
Relative Humidity <95% <95% <95%
Fan Acoustic Noise Level <33 dB SPL @ 1 m <33 dB SPL @ 1 m <33 dB SPL @ 1 m
