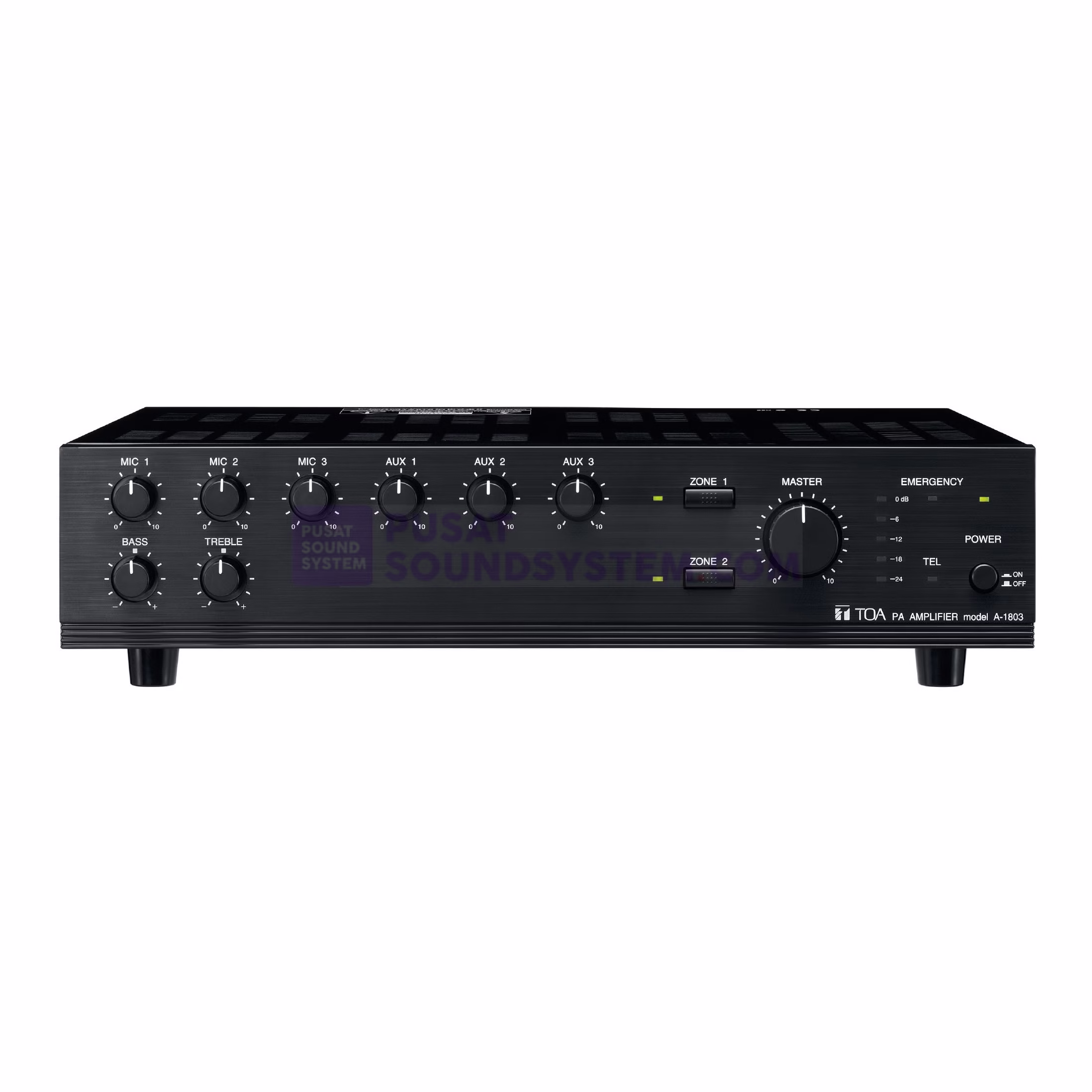

TOA A 1803 Mixer Amplifier PA System 30 Watt
Mixer Amplifier PA System 30 Watt
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
Dilengkapi dengan fungsi Prioritas, fungsi Chime, dan 2 sakelar pemilih Zona, A-1803 PA Amplifier 30 W dirancang untuk disesuaikan dengan aplikasi sistem PA berikut: pengumuman paging, interkomunikasi, BGM, dan penyiaran di sekolah, kantor, dan toko. Fungsi remote control daya, yang disediakan khusus untuk digunakan bersama dengan P-1812 (opsional), akan menghidupkan atau mematikan daya P-1812.
SPECIFICATION
| Power Source | 220 V – 230 V AC, 50/60 Hz 24 V DC (M4 screw terminal) |
|---|---|
| Rated Output | 30 W |
| Power/Current Consumption | AC operation: 80 W (rated output), 37 W (EN60065), 24 V DC operation: 2.0 A (rated output), 1.0 A (EN60065) |
| Frequency Response | 50 Hz – 20 kHz (±3 dB) |
| Distortion | 2 % or less at 1 kHz, rated power |
| Input | MIC 1: -60 dB(*1), 600 Ω, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack, DIN socket (5 pins) MIC 2 – 3: -60 dB(*1), 600 Ω, electronically-balanced, combined type of XLR-3-31 equivalent and phone jack AUX 1 (MOH): -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack AUX 2: -20 dB(*1), 10 kΩ, unbalanced, RCA pin jack AUX 3: -20 dB(*1), 10 kΩ, unbalanced, combined type of XLR-3-31 and phone jack TEL(*2): -20 dB(*1), 10 kΩ, electronically-balanced, M3 screw terminal EMERGENCY: 0 dB(*1), 600 Ω, unbalanced, M3 screw terminal |
| Output | REC: 0 dB(*1), 600 Ω, unbalanced, RCA pin jack LINE 1, 2 (*3): 0 dB(*1), 600 Ω, unbalanced, RCA pin jack MOH: 0 dB(*1), 600 Ω, transformer balanced, M3 screw terminal SPEAKER SELECTOR: 2 zone, high impedance (100 V line/330 Ω), individual selector switch, M4 screw terminal DIRECT SPEAKER OUT: High impedance (100 V line/330 Ω), M4 screw terminal Low impedance (4 – 16 Ω), M4 screw terminal (Both Low and High impedance terminals cannot be used at the same time.) |
| Phantom Power | ON or OFF for each MIC1 – 3 with switch setting (+17 V DC) |
| S/N Ratio (Band Pass : 20 Hz – 20 kHz) | 100 dB or more (Master volume: min) 76 dB or more (Master volume: max) 60 dB or more (MIC 1 – MIC 3) 76 dB or more (AUX 1 – AUX 3) 90 dB or more (TEL) 96 dB or more (EMERGENCY) |
| Tone Control | Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz |
| Control Input | TEL: No-voltage make contact input, open voltage: 24 V DC, short-circuit: 5 mA or less, M3 screw terminal EMERGENCY(*4): No-voltage make contact input, open voltage: 24 V DC, short-circuit: 10 mA or less, M3 screw terminal |
| Control Output | Power remote: Open collector output, withstand voltage: 35 V DC, control current: 50 mA or less, M3 screw terminal |
| Chime | 1-tone, 2-tone, or ascending 4-tone chime, or None selectable with switch setting, activated at MIC 1’s DIN or CONTROL TEL terminal. |
| Indicator | 5 point LED output level meter, Power indicator LED, Zone indicator LED, Emergency LED, TEL LED |
| Priority | EMERGENCY: Overrides other inputs TEL: Overrides other inputs except ‘EMERGENCY’, ON/OFF selectable with switch setting MIC 1: Overrides other inputs except ‘EMERGENCY & TEL’, ON/OFF selectable with switch setting |
| Operating Temperature | -10 ℃ to +40 ℃ |
| Finish | Panel: ABS resin, black, hairline Case: Steel plate, black |
| Dimensions | 420 (W) × 107.7 (H) × 367 (D) mm |
| Weight | 8.1 kg |
| Accessory | Power cord ……1, Terminal block cover ……1, Terminal block cover mounting screw ……2 |
| Option | Rack mounting bracket: MB-25B Volume control cover: YA-920 Input transformer: IT-453A |
