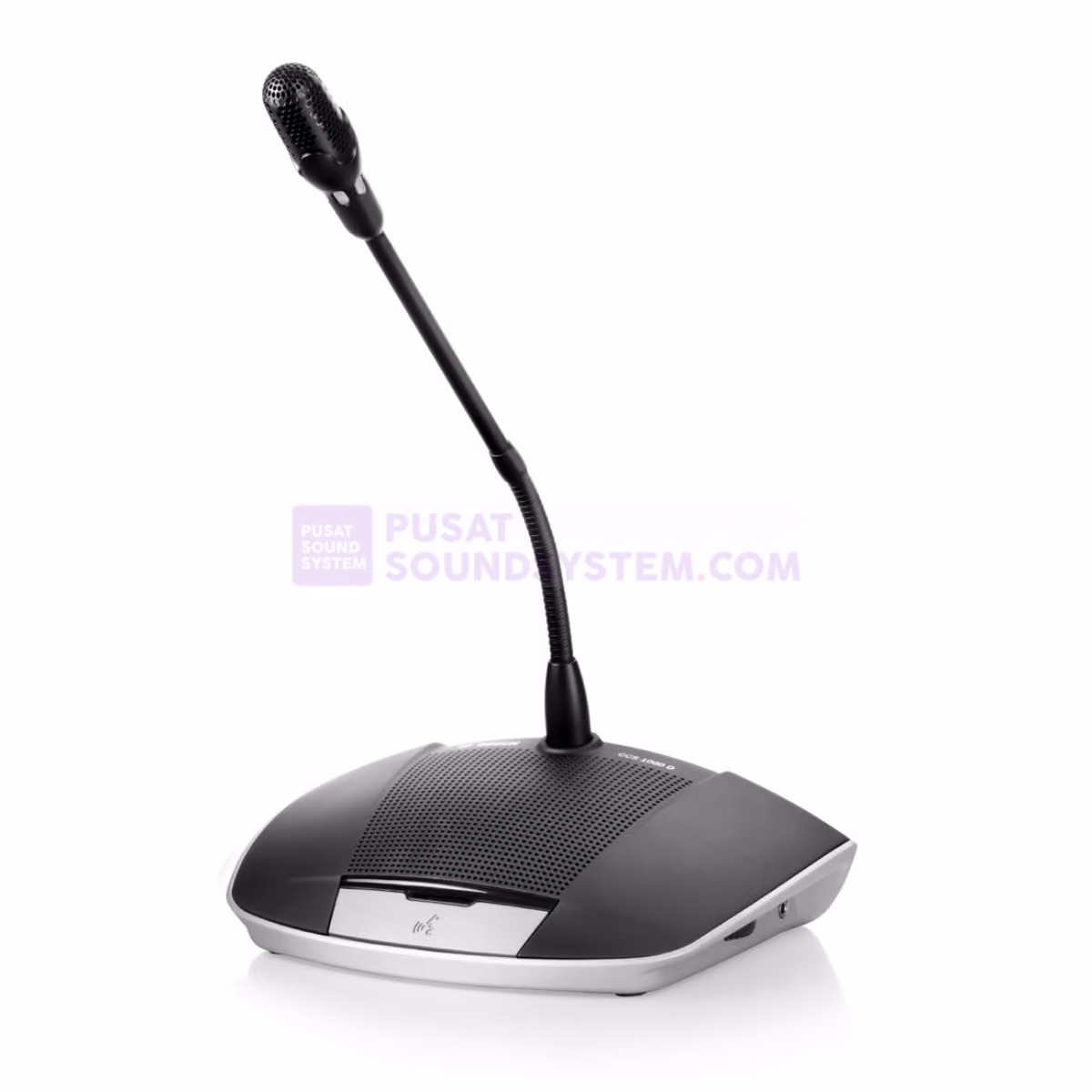

Description
- Enables participants to speak and listen to the proceedings
- Can be used either as participant or chairperson device
- Enables chairperson to mute microphones of participants
- “Possible-To-Speak” indicator
- “Request-To-Speak” indicator
- Cable lock facility
- GSM immune
- Built-in loudspeaker
- Microphone: with mic-LED indicators, flexible stem (either 38 or 48 cm length)
- Headphone socket with built-in volume control
- Unique patent pending possible-to-speak indicator
- Plug and play functionality for ensuring fast installation and reconfiguration times
- Compact, attractive ergonomic design
- Easily configured as a participant device or chairperson device
- Immunity to mobile phone interference
SPECIFICATION
| Power consumption | 1.3 W |
| Frequency response | 30 Hz to 20 kHz (System electrical) |
| THD | <0.5 % |
| S/N | >93 dBA |
| Sampling rate | 44.1 kHz |
| Headphones load impedance | > 32 ohms < 1k ohm |
| Loudspeaker max. peak output power | 4 W |
| Loudspeaker nominal output | 72 dB SPL |
| Participants loudspeaker frequency response | 200 Hz to 16 kHz (acoustical) |
| Microphone polar pattern | Cardioid |
| Participants microphone frequency response | 125 Hz to 15 kHz |
| Microphone nominal input | 85 dB SPL |
| Dimensions device without microphone(H x W x D) | 64 x 203 x 146 mm(2.5 x 8.0 x 5.7 in) |
| Height with microphone in horizontal position | 130 mm (5.1 in) |
| Length of microphone from mounting surface | CCSD‑DS: 310 mm (12.2 in) CCSD‑DL: 480 mm (18.9 in) |
| Weight | Approx. 1 kg (2.2 lb) |
| Mounting | Tabletop (portable or fixed) |
| Material (top) | Plastic ABS+PC |
| Material (base) | Metal ZnAl4 |
| Color (top) | Traffic black (RAL 9017) matt-gloss |
| Color (base) | Pearl light grey (RAL 9022) matt-gloss |
| Operating temperature | 0 ºC to +35 ºC (+32 ºF to +95 ºF) |
| Storage and transport temperature | -40 ºC to +70 ºC(-40 ºF to +158 ºF) |
| Relative humidity | 5% to 98% non-condensing |
| Air pressure | 600 to 1100 hPa |
