Behringer di4800a DI BOX Aktif 4 Channel
Behringer di4800a DI BOX Aktif 4 Channel - Image 2

Behringer di4800a DI BOX Aktif 4 Channel

4-channel Active Direct Box and Signal Splitter with 4 XLR Combi Inputs, 8 Transformer-isolated XLR Outputs, +6/+12dB Channel Boosts, and -20dB Pad Switches

Chat Penjual
Category: Tags: , , , , Brand:
Behringer
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

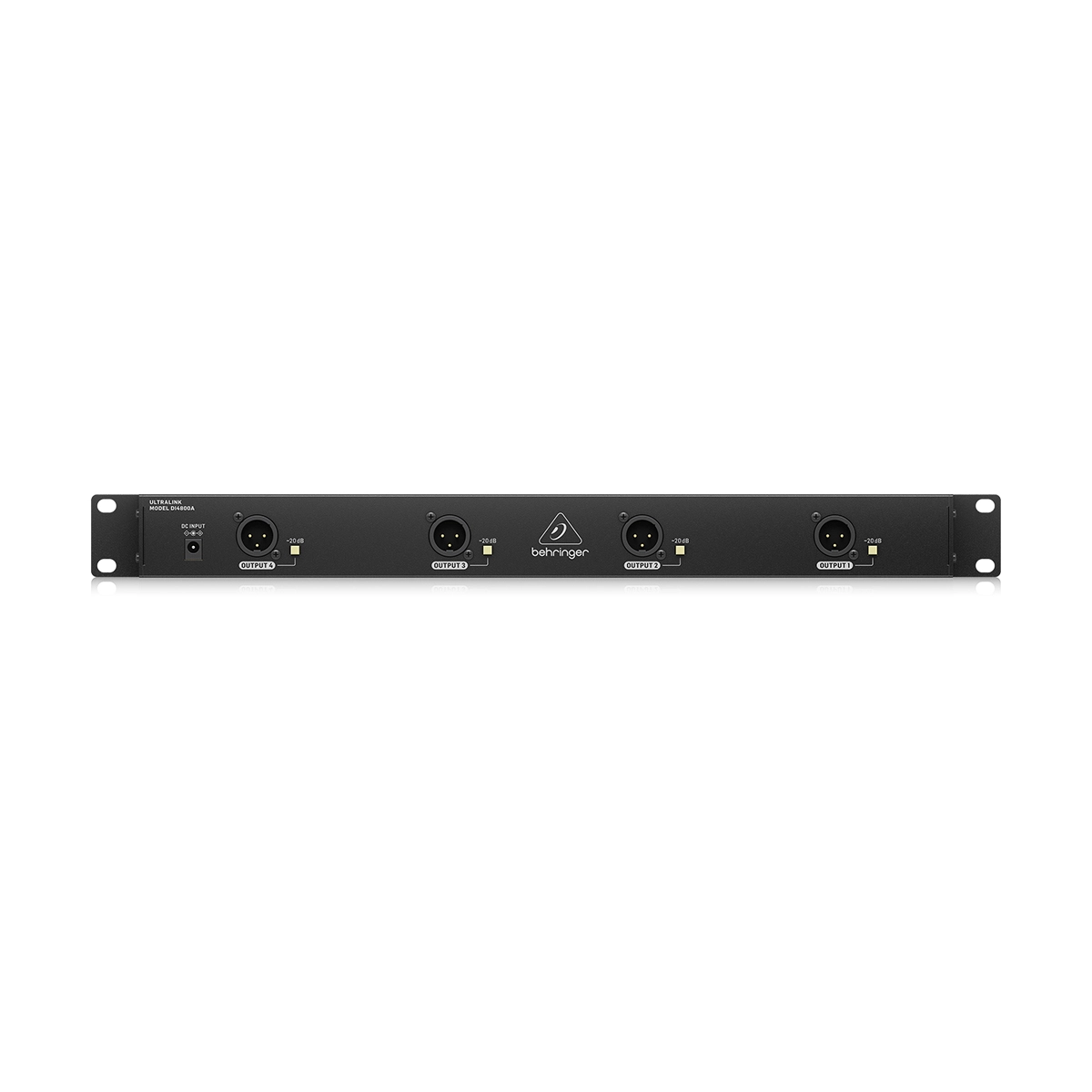

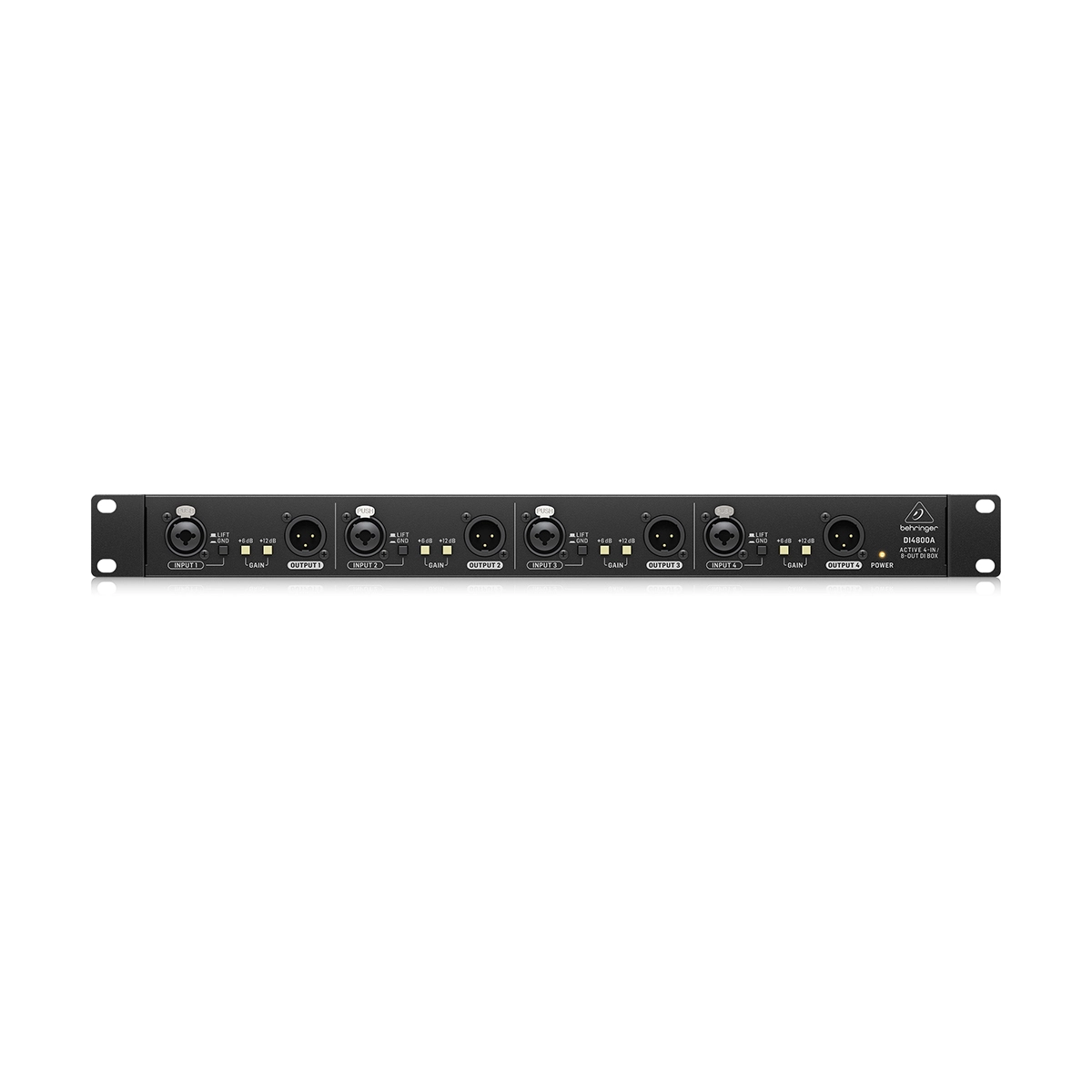

THE ULTRA-DI PRO DI4800A gives you 4 first-class DI channels in a single rack space. Each channel is equipped with one input (XLR or ¼” TRS) and two XLR Outputs at the front and back to connect to your amp or monitor console allowing for 8 outputs in all. Plus, the DI4800A is designed to accommodate virtually any input signal, with a switchable output attenuation of -20 dB, while our highly acclaimed OT-1 output transformers ensure pristine and powerful output.

Fitur
  • Professional and multi-purpose 4-channel direct injection box for stage and studio applications
  • Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
  • Ultra-flat frequency response due to renowned Behringer OT-1 transformers
  • Total of +18 dB gain boost in three +6 dB increments for pre-amplification of low-level signals
  • Ground Lift switch eliminates typical ground loop problems
  • Switchable -20 dB output attenuation
  • Neutrik* combo and gold-plated XLR connectors
  • Powered via external DC power supply (included) with optional battery powered operation (sold separately)



Spesifikasi

Inputs
Connectors 4 x XLR-1/4″ combo jacks, balanced
Impedance 20 kΩ
Max. input level +20 dBu
Channel boost switchable +6 dB,+12 dB,+18 dB
Outputs
Connectors 8 x XLR, transformer balanced
Impedance 600 Ω
Max. output level +20 dBu
Output pad switch 20 dB attenuation
System
Frequency response 20 Hz to 20 kHz (±3 dB)
THD + N (distortion) 0.01% @ 1 kHz, 0 dBu
Signal-to-noise ratio 120 dB
Ground lift switch Removes ground connection
Power requirement 12 V DC, 500 mA
Physical
Standard operating temperature range 5° C – 40° C (41° F – 104° F)
Dimensions (W x D x H) 483 x 71 x 44 mm

(19.0 x 2.8 x 1.7″”)
Weight 1.4 kg (3.1 lbs)
