Mackie MDB-1A DI Box Aktif 1 Channel
ACTIVE DIRECT BOX
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description
Great for active instruments like guitars and basses with active pickups and preamps, the MDB-1A Active DI features increased headroom and distortion-free operation. Featuring a 1/4″ high-impedance input and thru with -20db pad plus a Merge switch that turns the Thru jack into a second input, perfect for summing a stereo source to a mono output. The balanced XLR output features switches for Polarity, Low Cut, and Ground Lift. For maximum convenience, the MDB-1A is powered by 48v phantom power.
Fitur
- Active circuitry offers higher headroom for ultra-low noise and distortion-free performance
- High-impedance I/4″ input with Thru output

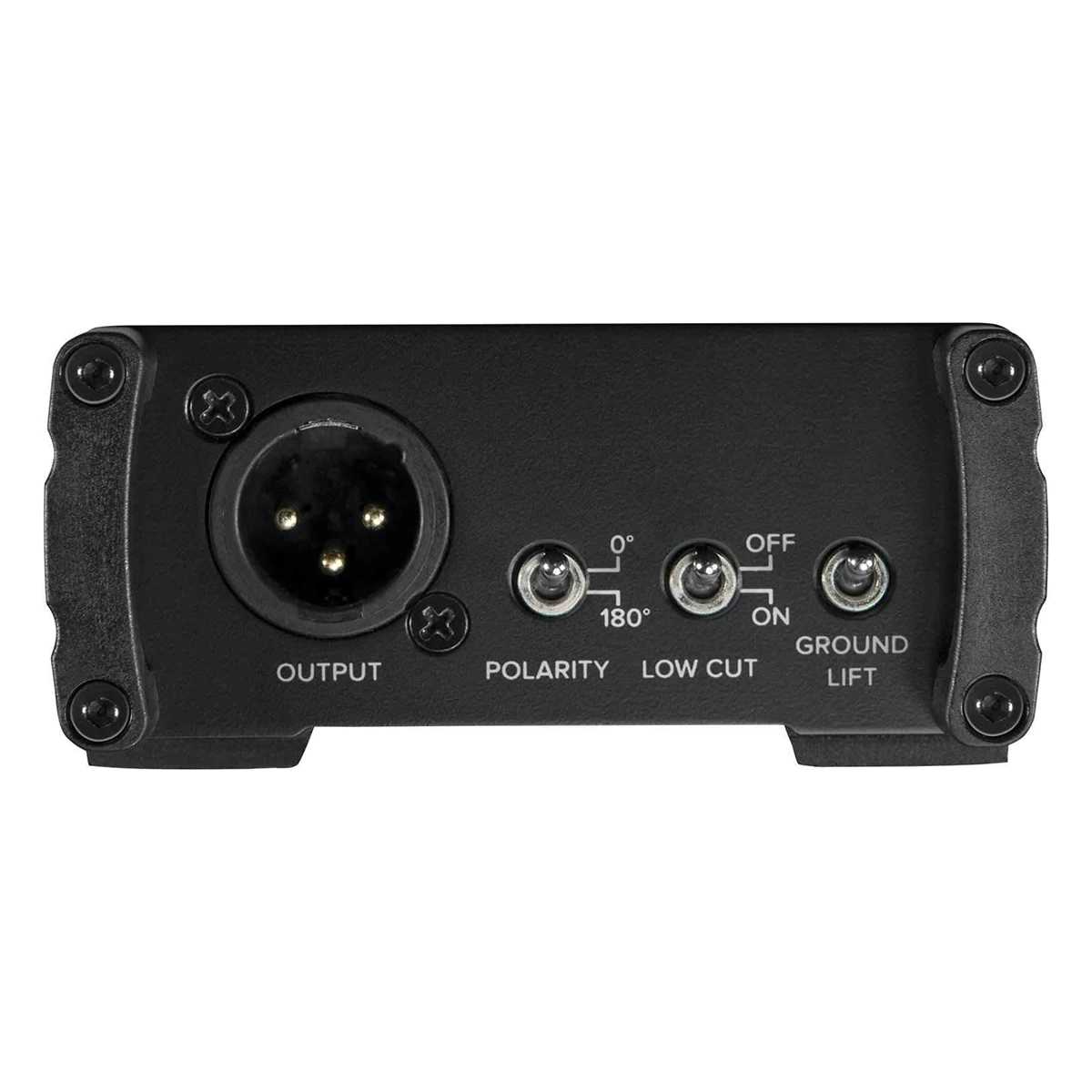

- Balanced XLR output with Ground Lift
- Low Cut and Polarity switches
- Merge switch allows connection of stereo sources which are then summed to mono at the output, perfect for stereo sources like keyboards and media players
- -20dB pad ensures distortion-free performance when connecting to high-level sources
- Powered via 48v Phantom Power
- Built-Like-A-Tank™ construction
Spesifikasi
| Audio Performance | |
| Frequency Response | 20 Hz – 20 kHz, +0.5 dB [MDB-1A] |
| Signal-to-Noise Ratio | 90 dB |
| Dynamic Range | 130 dB |
| Total Harmonic Distortion | 0.02% THDF @1 kHz |
| Pad | -20 dB |
| Input / Output | |
| Input Type | Female 1/4″ Unbalanced |
| Input Impedance | 330 kΩ unbalanced |
| Output Type | Male XLR Balanced |
| 1/4” Unbalanced (Thru) | |
| Output Impedance | 150 Ω balanced |
| Power | |
| Input Type | 48 V Phantom |
| Current Draw | <4.0mA DC |
| Display LEDs | Front Merge on/off |
| Physical Properties | |
| Height | 1.5 in / 38 mm |
| Width | 3.4 in / 86 mm |
| Depth | 5.8 in / 147 mm |
| Weight | 0.8 ib / 0.4 kg |
