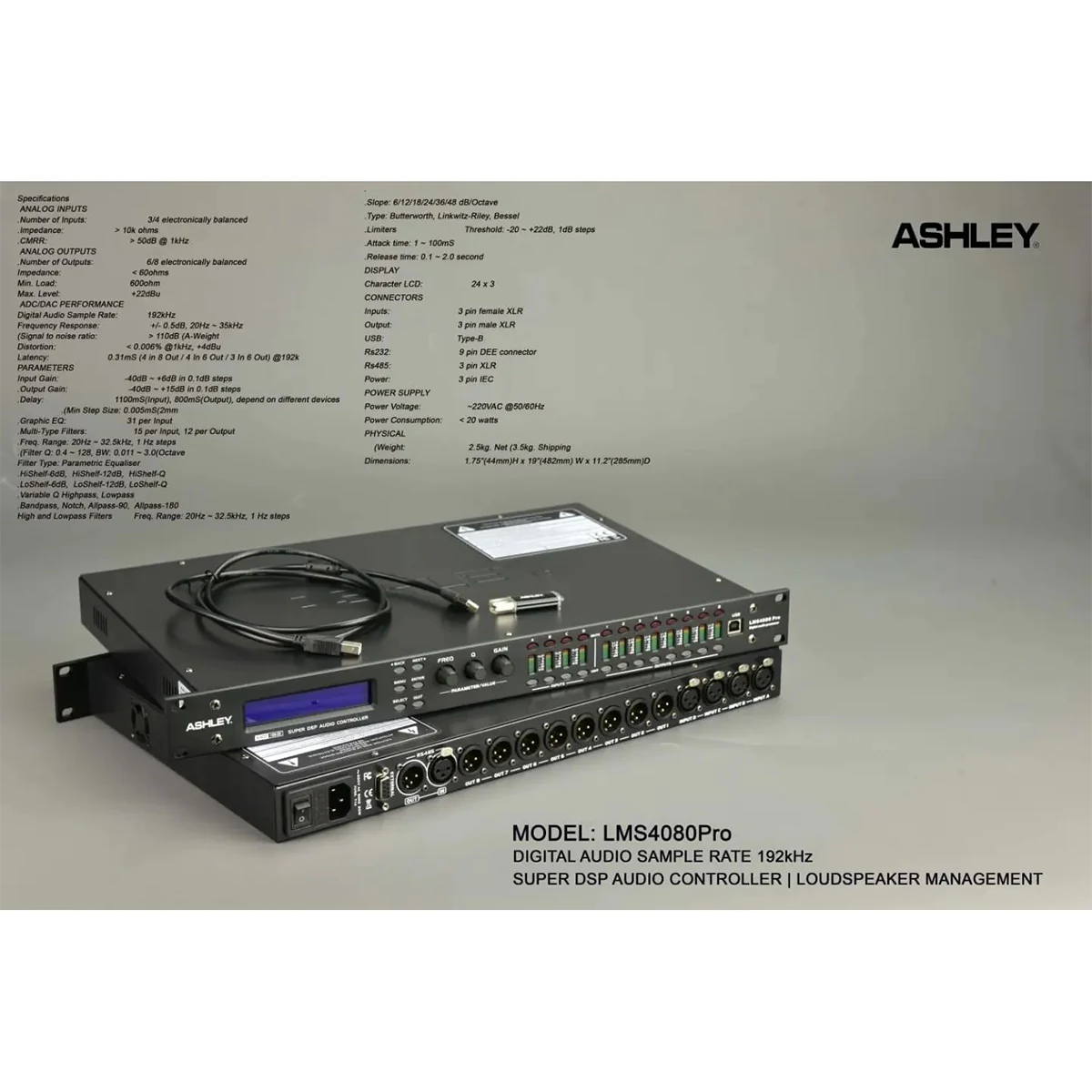

Ashley LMS 4080 Pro DLMS Speaker Management 4x8 (4 Input 8 Output)

Ashley LMS 4080 Pro DLMS Speaker Management 4×8 (4 Input 8 Output)

DLMS 4 input 8 Output

Chat Penjual
Category: Tags: , , , Brand:
Ashley Audio
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

Spesifikasi

  • Inputs: 2/3/4 electronically balanced.
  • Impedance:> 10k ohms.
  • CMRR:> 75dB 50Hz – 10kHz.
  • Outputs: 4/6/8 electronically balanced. Source Imp: Min. Load: 600ohm
  • Max. Level: + 20dBu
  • Digital Audio Sample Rate: 96kHz
  • Frequency Response: +/- 0.5dB, 20HZ – 20kHz
  • Distortion: ADC Dynamic Range:> 114dB, 20HZ – 20kHz (A-Weight)
  • DAC Dynamic Range :> 114dB, 20HZ – 20kHz (A-Weight)
  • Propagation Delay: 0.66ms (4in 8 out / 4in 6 out / 3in 6 out) 0.65ms (4 in4out / 2 in 6out / 2in4out)
  • Delay: 1500mS (Input), 1500mS (Output)
  • Min Step Size: 0.010mS (4mm)
  • Input Gain: -40DB to + 6dB in 0.1dB steps
  • Output Gain: -40dB to + 15dB in 0.1dB steps 10
  • Multi-Type Filters
  • 10 per Input, 10 per Output.
  • Freq. Range: 20HZ – 20kHz, 1/36 Octave steps.
  • Filter Q / BW: 0.4 to 128.
  • Filter Type: Parametric Equalizer
  • HIShelf, LoShelf
  • Variable Q Highpass, Lowpass
  • Bandpass, Notch, Allpass.
  • High and Lowpass Filters
  • Freq. Range: 20HZ – 20kHz, 1/36 Octave steps.
  • Slope: 6/12/18/24/36/48 dB / Octave.
  • Type: Butterworth, Linkwitz-Riley, Bessel.
  • Threshold Limiters: -20 – + 20DB, 1dB steps.
  • Attack time: 1-100mS.
  • Release time: 0.1 – 2.0 second.
  • Display: 2×20 Character LCD
  • Connectors Inputs: 3 pin Female XLR
  • Output: 3 pin Male XLR
  • RS232: 9 pin DEE
  • RS485 connector: 3 pin XLR
  • Power: 3 pin IEC
  • Power Voltage: -220V @ 50 / 60HZ
  • Power Consumption: <20watts
  • Physical
  • Weight 2.5kg net (3.5kg shipping
  • Dimensions : 1,75″(44mm)H x 19″(482mm)W x 11.2″(285mm)D
