TOPP PRO DLM 808 Speaker Management 8x8 DLMS Speaker Management 8x8 (8 Input 8 Output)

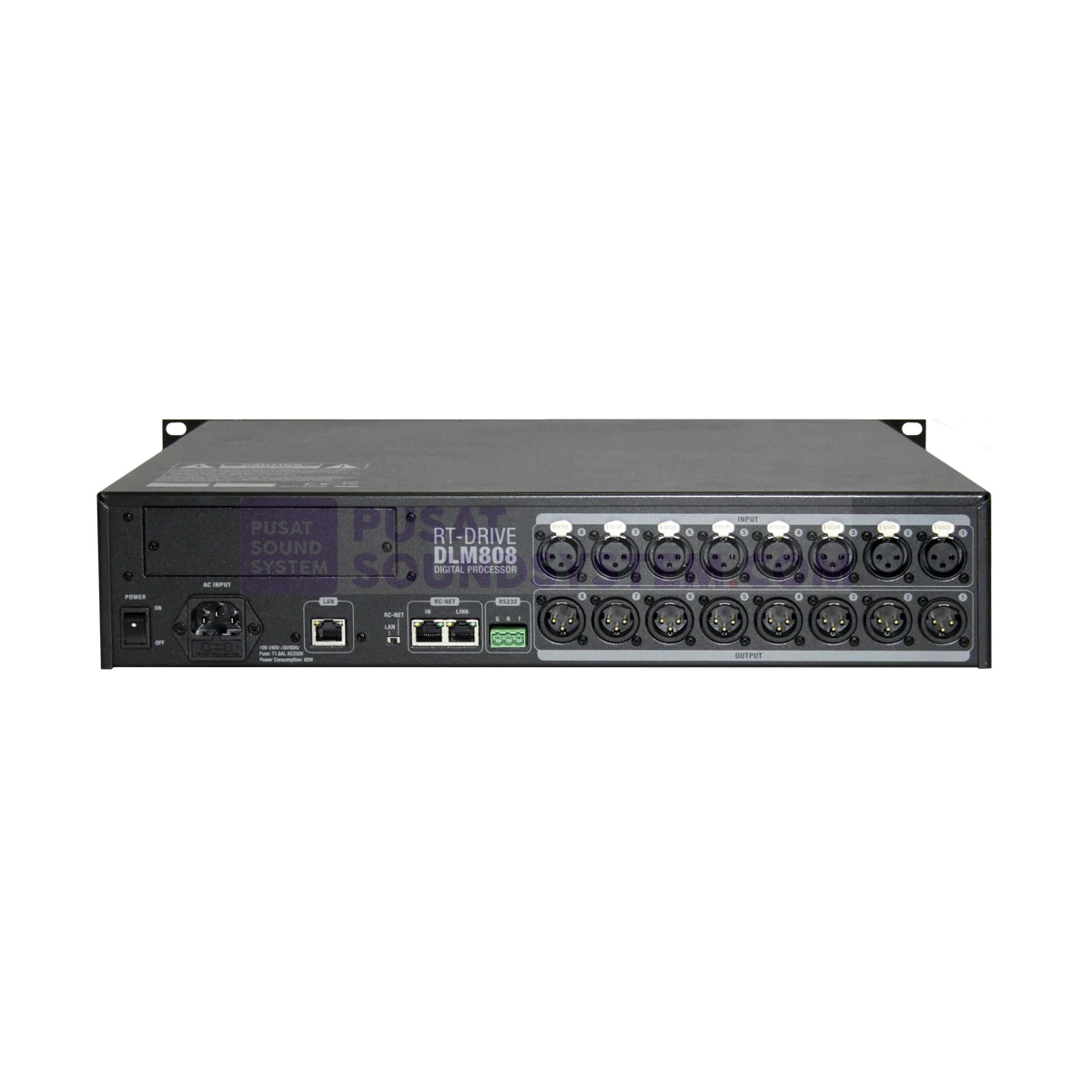

TOPP PRO DLM 808 Speaker Management 8x8 DLMS Speaker Management 8x8 (8 Input 8 Output) - Image 2

TOPP PRO DLM 808 Speaker Management 8×8 DLMS Speaker Management 8×8 (8 Input 8 Output)

8×8 Speaker Management with PC Software Control

Chat Penjual
Category: Tags: , , Brand:
Topp Pro
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The new TOPP PRO MUSIC GEAR RT-DRIVE DLM808 is an audio matrix processor, with 8 input and 8 output channels, with high-definition LCD to display current status at real time, with network port to expand network devices. It is available for large-scale place, such as theater, broadcast hall, gymnasium and conference center and so on. Our Professional Audio Products are designed and tested by a highly qualified engineering team with more than 20 years of experience. Great pride & care is placed in delivering products with excellent performance, specifications and dependa ble reliability. Also great emphasis is placed in creating and bringing to market products that can fill multiple applications and also offer customers exceptional values. Every TOPP PRO audio product is strictly tested and complied to very strict standards.

Fitur

  • All input channels are equipped with GATE/EXP/CROSSOVER/PEQ/DELAY/COMPRESSOR function
  • All input channels are equipped with Gain/Crossover/PHASE/PEQ/DELAY/COMPRESSOR function
  • 8in/8 out audio matrix processor
  • With 8 channels in and 8 channels out audio interface expansion card (DANTE)
  • Match with PC and App operation software, which is convenient for user
  • User can on-line update DSP and MCU Firmware via internet



Spesifikasi

Microphone input Electronically balanced
Frequency Response to Main Output 20Hz~20KHz at 0dBu±1dB
Distortion (THD&N) to Main Output <0.01% at 0dBu 1KHz
SNR (Signal to Noise Ratio) 110dB
Maximum Input Level +20dBu
AUX 1~8 Outputs .
Maximum Output Level +20dBu
System Crosstalk .
Input to Output -87dBu
Adjacent Channels -87dBu
Noise Gate .
Threshold Range -84dBu -0dB
Attack time 0.5mS~200mS
Release time 5mS~2S
Compressor .
Threshold Range -30dBu – +20dB
Attack time 10mS~150mS
Release time 10mS~1S
Ratio 1:1 to 24:1
Gain 0dBu – +24dB
EQ-Low (LowPass or LowShelf) 20Hz~19.2KHz +/-24dB
Low Mid / High Mid 20Hz~19.2KHz +/-24dB
High (HighPass or HighShelf) 20Hz~19.2KHz +/-24dB
Digital Audio .
ADC Dynamic Range 114dB
DAC Dynamic Range 114dB
DSP Processor 32-bit, floating point
Sample Rate 48K/24bit
