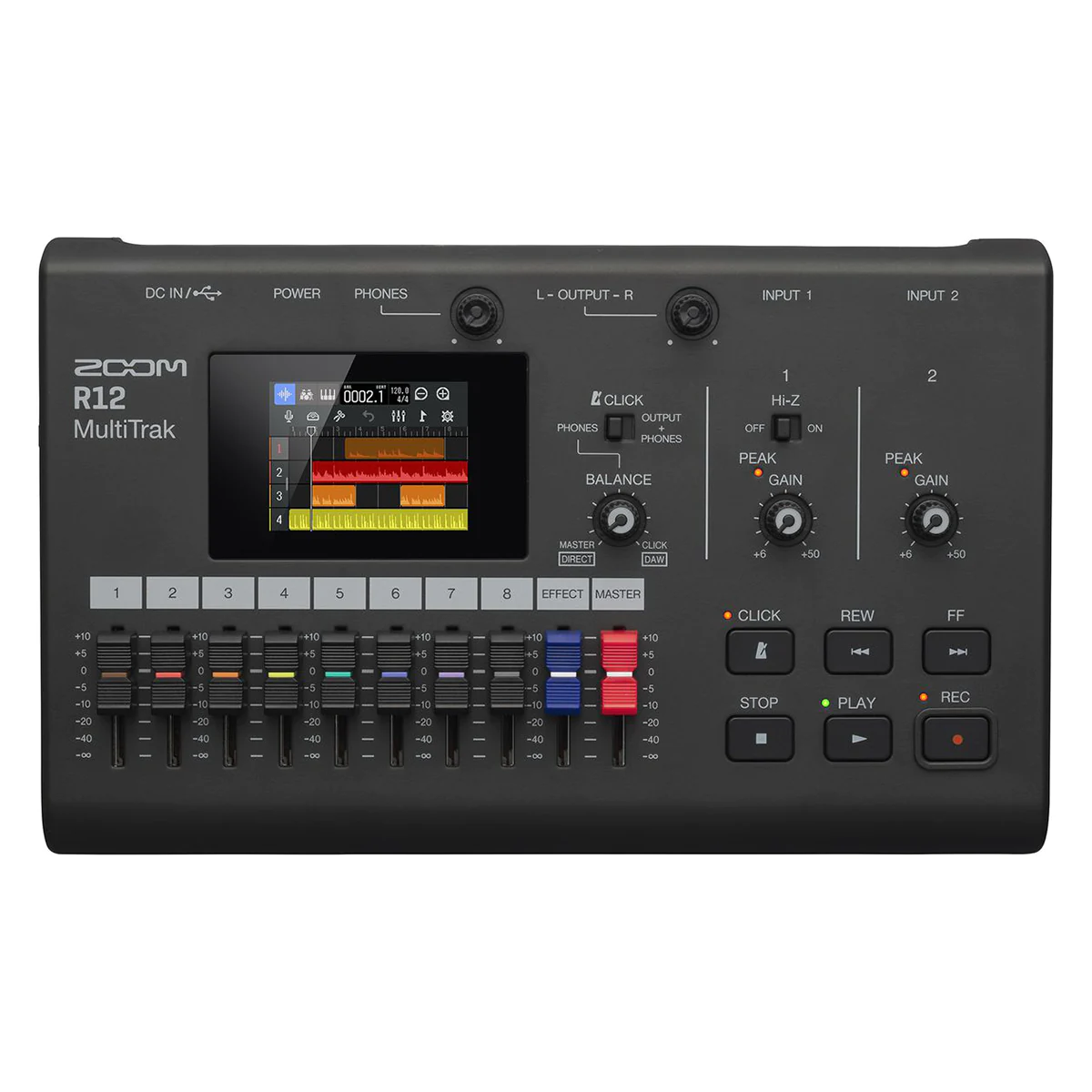

Zoom R12 MultiTrak 8 Track Multi Track Recorder

8-track Digital Recording Device with Touchscreen, Synthesizer, and Drum Machine

Cek Harga

Description

WHAT’S IN THE BOX

  • R12 MultiTrak
  • AD-17 AC Adapter
  • USB Cable
  • Quick Tour Guide



Fitur

  • Multi-track digital recorder with up to 8 tracks of recording.
  • 2.4” Full Color LCD touchscreen display with easy touch and swipe editing
  • User friendly graphic interface with on-board editing capabilities
  • Battery Powered up to 5 hours (4 AA’s)
  • 2 XLR / TRS Combo inputs – with phantom power and HI-Z on input 1
  • Send effects channel with 4 options: Reverb, Delay, Chorus, or Guitar Lab preset (choose up to 3 effects from our guitar effects collection including distortions, modulation effects, spacial effects, and much more)
  • Built-in compressor for inputs 1 and 2
  • Pan and 3-band EQ for each track
  • Sequence play – for using backing tracks in a live setting
  • Drum loops (150 preloaded)
  • Records directly to SDXC cards
  • Built-in USB-C audio interface (2-in / 2-out or 2-in/4out) with control surface function



SPECS

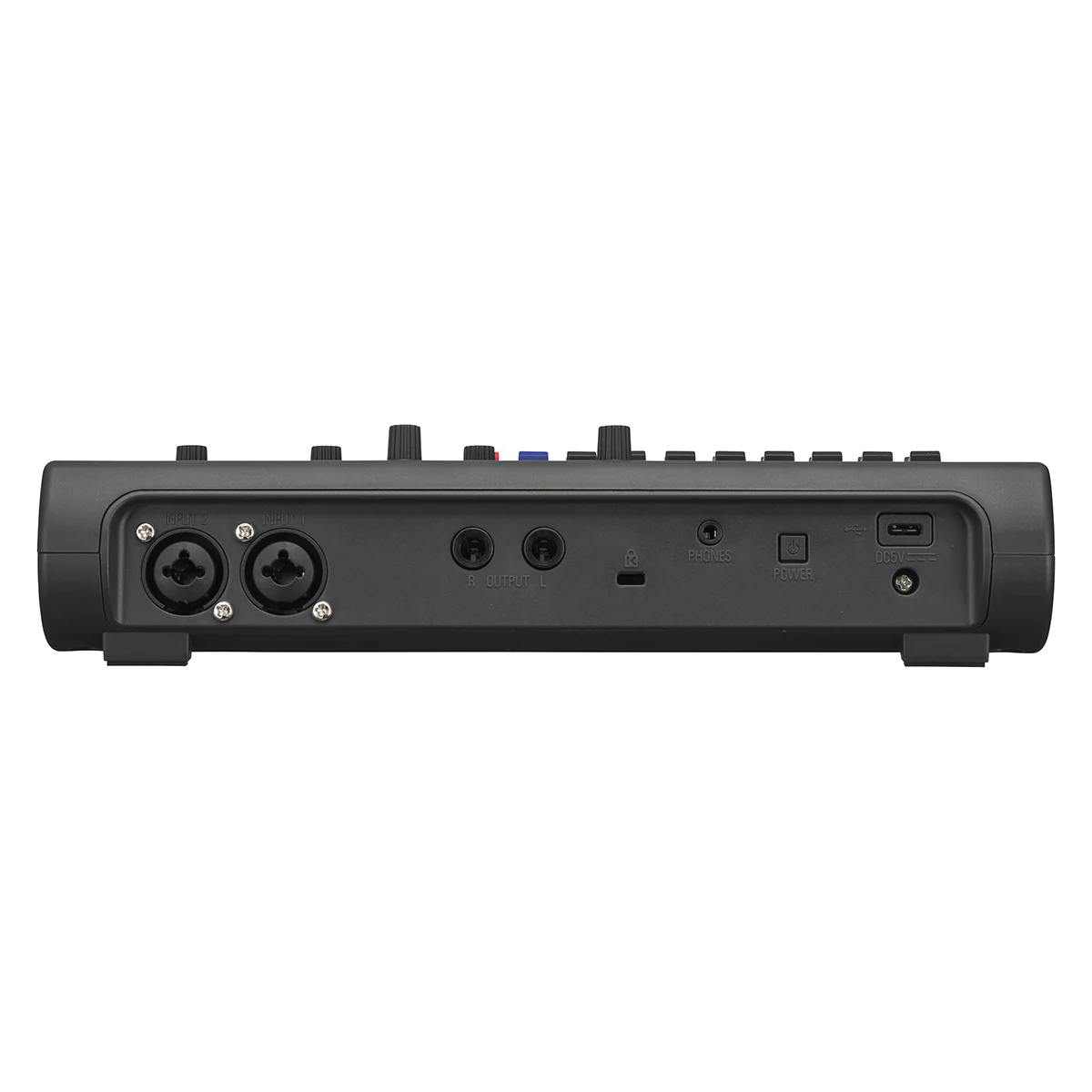

INPUTS / OUTPUTS

INPUTSMIC/LINE (mono)2
OUTPUTSMASTER OUT1
PHONES1

INPUTS

MIC/LINE (MONO)Connectors2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT)
Input gain+6 ~ +50 dB
Input impedanceXLR: 3.9 kΩ TRS: 3.9 kΩ/1 MΩ (when Hi-Z ON, INPUT 1 only)
Phantom power+48 V (switchable separately for INPUTS 1 and 2)
Equivalent input noise–121 dBu or less (IHF-A) at +50 dB/150 Ω input
Frequency response−1.0/+0.5 dB: 20 Hz – 20 kHz

OUTPUTS

MASTER OUTConnectors2 TRS phone jacks (balanced)
Maximum output level+14 dBu
Output impedance200 Ω
PHONESConnectors1 stereo 3.5mm mini jack
Maximum output level45 mW + 45 mW (into 32 Ω load)
Output impedance10 Ω

RECORDER

Maximum simultaneous recording tracks2
Maximum simultaneous playback tracks8
Recording format44.1kHz, 16/24-bit, mono/stereo WAV
Recording mediaCards compatible with microSDHC specifications 4 GB – 32 GB
Cards compatible with microSDXC specifications 64 GB – 1 TB

TRACK SETTINGS

EQHigh: 10 kHz, ±12 dB, shelving
Middle: 2.5 kHz, ±12 dB, peaking
Low: 100 Hz, ±12 dB, shelving
PanL100 – R100

EFFECTS

Input DynamicsComp/Limiter/Gate
Patch memory effects3 types can be used simultaneously
50 patch memories
Guitar Lab supported
Can be assigned and used as an insert (input) or send effect
Dedicated send effects10 types of spatial effects

TUNER

Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD

CLICK (METRONOME)

Time signatures3/4, 4/4, 6/8
Tempo range40.0 – 250.0 BPM

RHYTHM LOOPS

Sound source formatPCM
Number of loops150

SYNTH

Sound source formatFM
Polyphony8
Number of sound types18 (and a PCM drum kit)

DISPLAY

2.4″  (320×240) full-color touchscreen LCD

USB

CONNECTORUSB Type-C
Note: Use a USB cable that supports data transfer. USB bus power is supported.
AUDIO INTERFACE FUNCTION2-in/2-out or 2-in/2-out (iPad)USB 2.0 Full Speed
44.1 kHz, 16/24-bit
2-in/4-outUSB 2.0 High Speed
44.1 kHz, 16/24-bit
MASS STORAGE FUNCTIONDeviceUSB 2.0 High Speed (5 V/200 mA power supplied when host)
GUITAR LAB CONNECTIONUSB 1.1 Full Speed
DAW CONNECTION (CONTROL SURFACE)USB 1.1 Full Speed
MASS STORAGE FUNCTIONHostUSB 2.0 High Speed (5V/200 mA power supplied)
USB MIDI KEYBOARD CONNECTIONUSB 1.1 Full Speed (5 V/200 mA power supplied)

POWER

Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)
AC adapter: ZOOM AD-17 (5V/1.0A)

ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES

During playback with +48V off and 32Ω headphone load
Alkaline batteries: about 5 hours
NiMH batteries (1900 mAh): about 5 hours
Lithium batteries: about 11 hours
• The above values are approximate. • Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

POWER CONSUMPTION

5 W maximum

DIMENSIONS

256 mm (W) × 158 mm (D) × 61 mm (H)

WEIGHT (including batteries)

827 g
NOTE: 0 DBU = 0.775 VRMS
