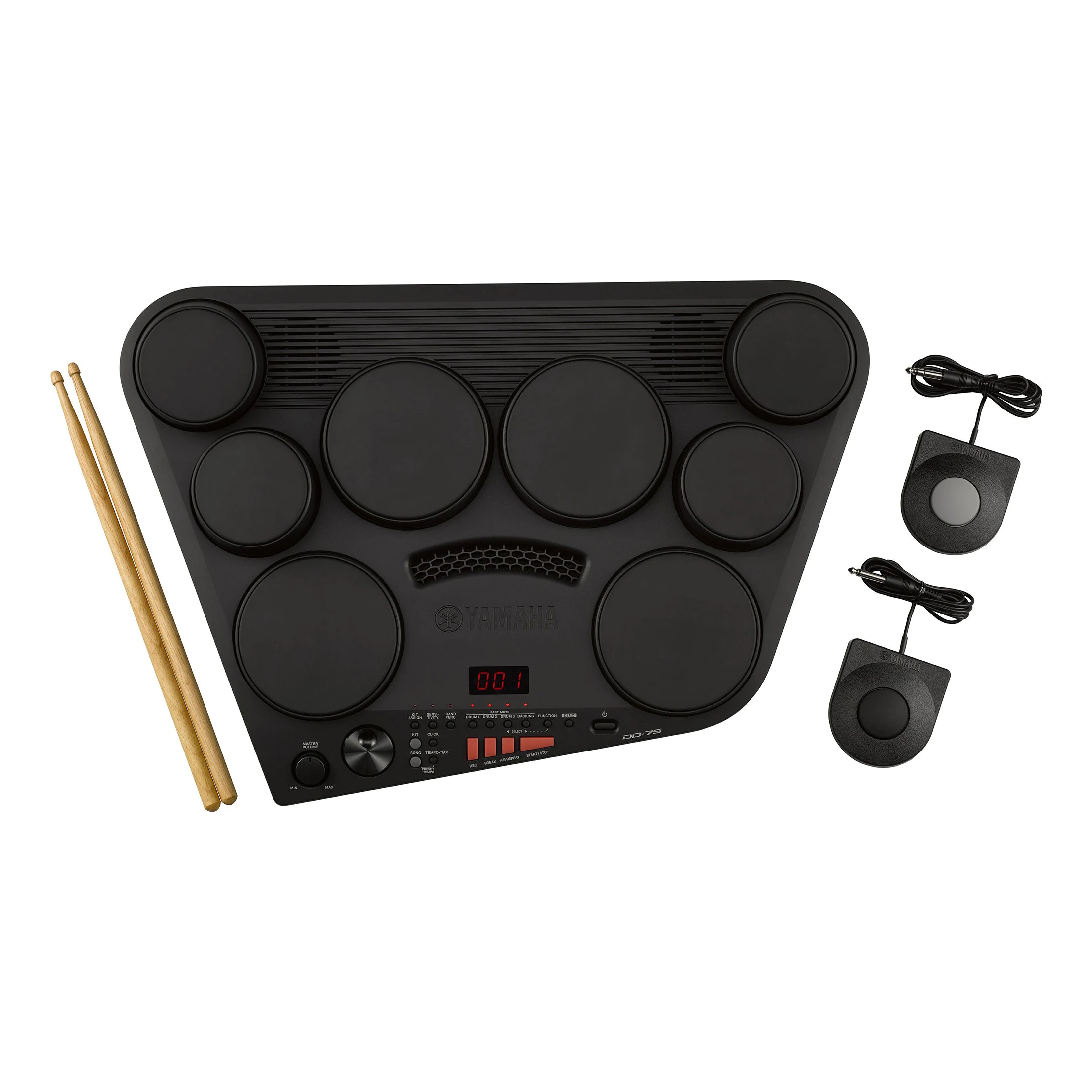

Yamaha DD-75 Drum Elektrik 8 Piece
8-pad Digital Drums with 2 Footpedals, Ported Speakers and MIDI Connectivity
Description
Fitur
- 8 touch-sensitive drum pads in an easy-playing layout allow for expressive drumming
- 2 assignable foot pedals included for kick, hi-hat or any other Voice
- Compact & portable design with battery operation allows you to play anywhere you want
- Headphone jack allows you to play anytime you want
- AUX IN jack for connecting and playing along with your favorite music
- 570 Voices assignable to any pad
- Hand Percussion Mode
- 105 built-in Songs for learning and playing along with
- 75 programmed Drum Kits + 10 Custom Kits
- 32-note polyphony
- Stereo speakers with bass port provide great sound quality
- Reverb and Master EQ
- Sensitivity adjustment for individual pads and bass pedal
- Record your own Songs (up to 5 in memory at one time)
- MIDI IN/OUT
Spesifikasi
| DD-75 | ||
|---|---|---|
| Bodi | Warna | Black |
| Dimensi | Lebar | 602 mm (23-11/16″) |
| Tinggi | 180 mm (7-1/16″) | |
| Kedalaman | 411 mm (16-3/16″) | |
| Berat | Berat | 4.2 kg (9 lb, 4 oz) (not including batteries) |
| Pad | Jumlah Pad | 8 |
| Respon Sentuhan | Yes | |
| Pedal | Jumlah Pedal | 2 |
| Fungsi | Hi-hat, Bass drum | |
| Display | Tipe | LED |
| Ukuran | 7-segment, 3-digit | |
| Panel | Bahasa | English |
| Tone Generator | AWM Stereo Sampling | |
| Polyphony Maksimal | 32 | |
| Suara | 570 Voices + 30 Phrases | |
| Drum Kit | 75 Presets + 10 Customs | |
| Penyesuaian | GM | Yes |
| XGlite | Yes | |
| Tipe | Reverb | 9 types |
| EQ Utama | 2 types | |
| Preset | Jumlah Lagu Preset | 105 |
| Perekam | Jumlah Lagu | 5 |
| Jumlah Track | 4 (DRUM 1/DRUM 2/DRUM 3/BACKING) | |
| Kapasitas Data | Approx. 7,000 notes per song | |
| Fungsi Perekaman | Yes | |
| Format Data Kompatibel | Playback | SMF (Format 0) (MIDI data only; audio not supported.) |
| Perekam | SMF (Format 0) (MIDI data only; audio not supported.) | |
| Pengaturan Keseluruhan | Metronome Sound | 4 types (Metronome/Cowbell/Stick/Human Voice) |
| Rentang Tempo | 11 – 320 | |
| Performance Modes | Hand Percussion Mode | |
| Pengaturan Lain | Pad & Bass Pedal Sensitivity Adjustment: Preset:5 types (Fix, 1-4), Custom Setting:10 | |
| Penyimpanan | Memori Internal | Approx. 370 KB |
| Konektivitas | DC IN | 12 V |
| Headphone | Standerd stereo phone jack | |
| Unit Pedal | 1, 2 | |
| MIDI | IN, OUT | |
| Koneksi | AUX IN | Stereo mini jack |
| Amplifier | 5 W + 5 W | |
| Speaker | 8 cm x 2 | |
| Suplai Daya | Adaptors | AC Adaptor PA-150 or an equivalent recommended by Yamaha |
| Konsumsi Daya | 18 W | |
| Auto Power Off | Yes | |
| Sumber Daya | Batteries | Six 1.5 V “C” size alkaline (LR14), manganese (R14) or six 1.2 V “C” size Ni-MH rechargeable batteries (HR14) |
| Battery Life | Alkaline battery:About 10 hours, Rechargeable Ni-MH battery:About 7 hours | |
| Aksesori yang Termasuk | Drum Sticks, Foot Pedal 1 & 2 | |
Additional information
| Konfigurasi Drum | 8 Piece |
|---|
