Wharfedale CPD3600 Power Amplifier 2 Channel Class H 870 Watt

Description

The CPD3600 is part of Wharfedale Pro’s latest line of professional power amplifiers driving earth shaking audio from the front of your venue, all the way to the back.

For using in stereo the amplifier delivers 870W RMS per channel at 8 Ohms and 1300W RMS per channel at 4 Ohms; a suitable power for medium to large sized complete PA systems for mobile and fixed installation. In bridged mode at 4 Ohms the amplifier generates 3600W RMS. This huge power means the amplifier can also integrate itself with larger touring rigs and installs where long throw, extremely high power audio is needed.

Technology

Working in stereo, parallel and bridged modes CPD3600 is built for a multitude of sound system formations. Brand new class H topology has resulted in a dynamic, high headroom amp made for propelling your loudspeakers through thick and thin with complete clarity.

Precision Control

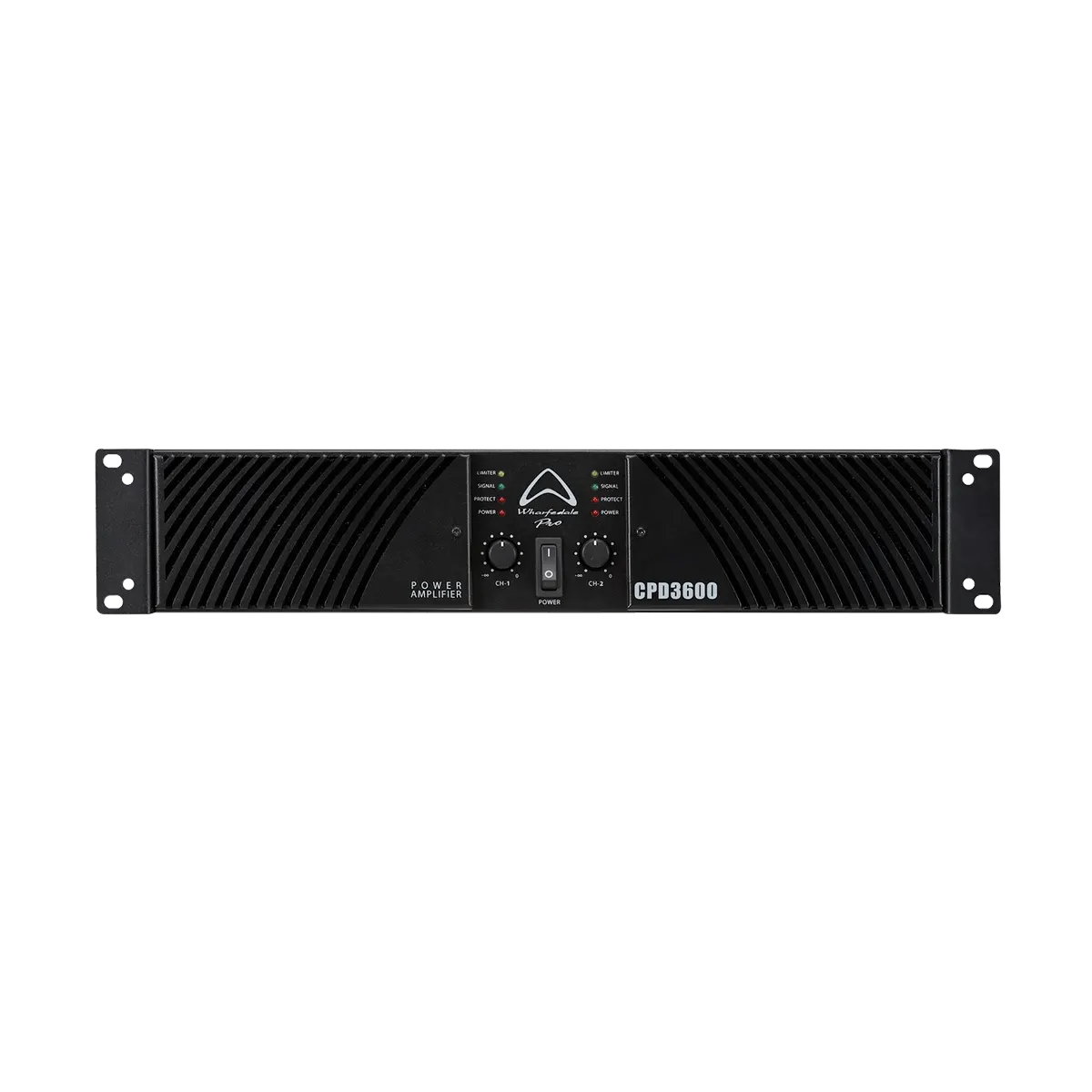

Large rotary dials accurately adjust gain levels, and you will know when to do so from the clear and simple front panel. A 4 segment led formation displays shows vital power status, level, limit and protect information, keeping the sound engineer in the know.

Protection & Durability

The CPD3600 is rife with technology that offers complete protection for your peace of mind. A built-in switchable limiter, allows over 8Vrms signal through without distortion. Additionally it is equipped with thermal, overcurrent, DC and output short protect features. Professional audio equipment is an investment. That is why the adept components of the amplifier are housed within a 2U steel chassis which is universally rack mountable. This hard wearing all-steel casing also features a removable air filter in the front bracket which can be cleaned or replaced easily.

Fitur

• Class H Technology (CPD2600 / CPD3600 / CPD4800)
• Class AB Technology (CPD1000 / CPD1600)
• Suitable for mobile use, touring, rental and installation
• Stereo, Parallel and Bridge modes
• 2 x XLR inputs
• 2 x speakON compatible outputs
• Switchable limiter
• Status and clip LEDs
• Thermal, overcurrent, DC and output short protect circuitry
• Continuously variable speed fan
