Turbosound NUQ115B-AN Subwoofer Aktif 15 Inch 3000 Watt (DSP)

The 3,000 Watt Turbosound NuQ115B-AN is a powered 15″ subwoofer system that is ideally suited for a wide range of music and live sound reinforcement applications. Designed to work individually without a controller, the the NuQ115B-AN provides optimal FOH performance, as well as exceptional drum and side fill monitoring applications.

With a bass-reflex port design enclosure, the NuQ115B-AN Subwoofer features a high-power, double-suspension 15″ low-frequency driver that utilizes a specialized inside/outside wound voice coil for higher magnetic density, heat dissipation, high power-handling capacity, and improved efficiency. The subwoofer provides fast and accurate transient response for virtually distortion-free operation.

Output power for the NuQ115B-AN Subwoofer is provided by means of an efficient and lightweight KLARK TEKNIK 3000W Class-D power amplifier. An easy-to-use KLARK TEKNIK Digital Signal Processor (DSP) provides dynamic EQ for low-frequency response at low volume levels and transparent limiting for clarity at high-output levels.

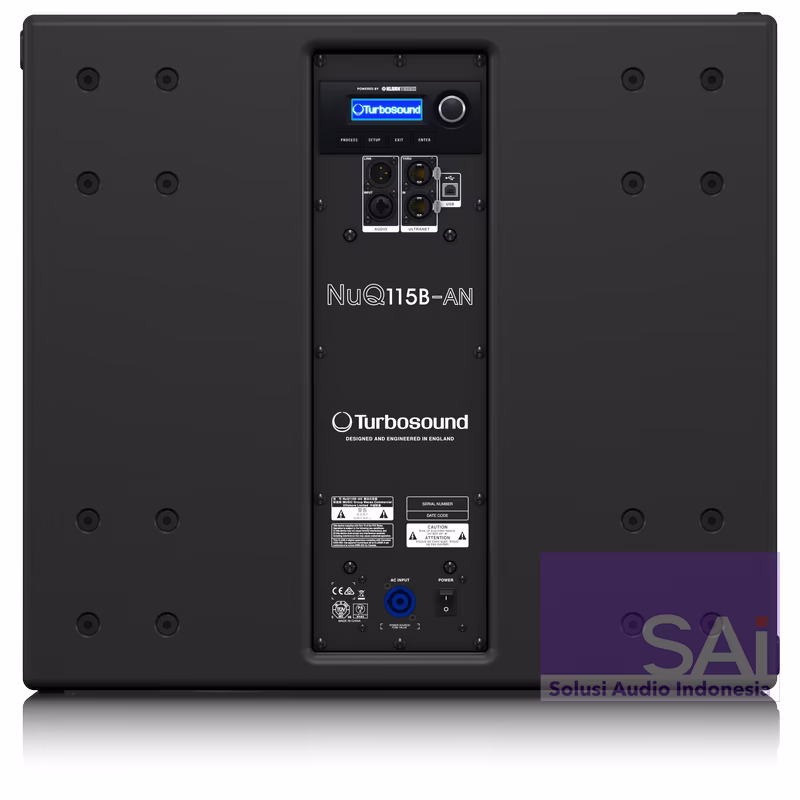

On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to position compensation, user EQ control, crossover alignment, and signa-routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active subwoofers (sold separately), or for use with active full-range satellite speakers. An onboard USB port provides access for remote control of the NuQ115B-AN Subwoofer via Windows computer, as well as DSP firmware updates.

The ULTRANET connectivity is provided by two locking etherCON connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single Cat5 cable between compatible digital devices including mixers, I/O stage boxes, powered loudspeakers, and personal monitoring systems. Simplified cable routing and ease of setup save time during installation.

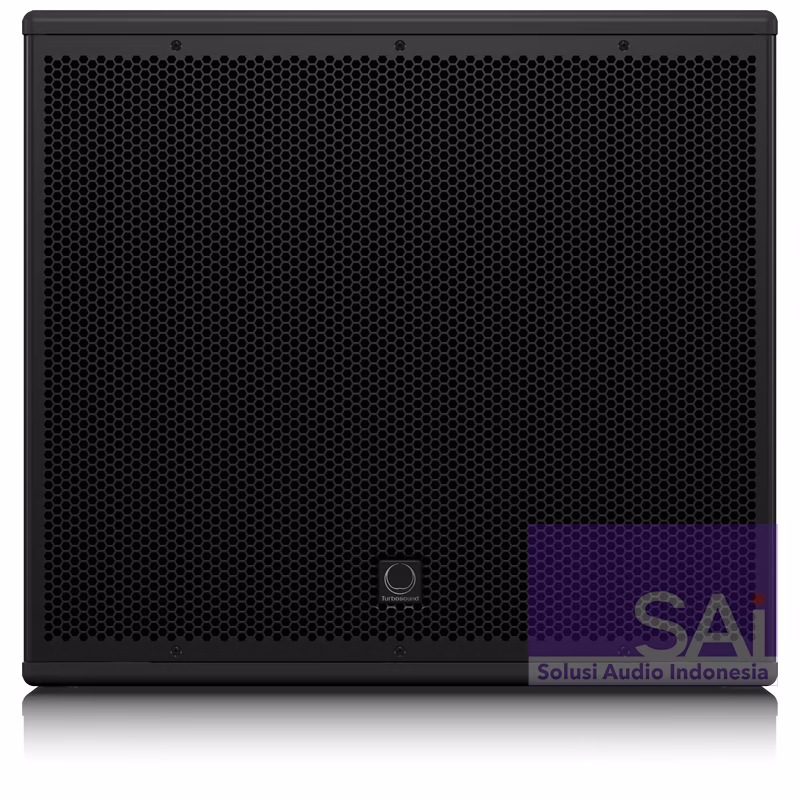

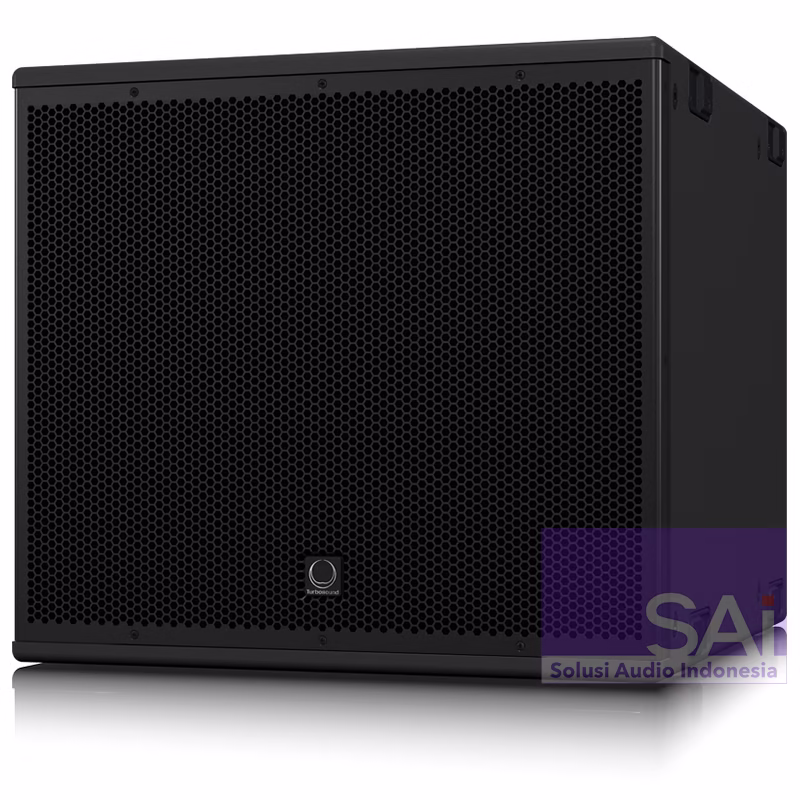

Finished in a durable semi-matte black paint, the NuQ115B-AN Subwoofer’s cabinet is constructed from 0.75″ birch plywood. It includes a rugged powder-coated perforated-steel mesh grille backed with reticulated foam, multiple M10 threaded rigging points, a 35mm pole socket for satellite-speaker mounting, integrated carry handles for convenient transport, and high-impact interlocking corners for ground-stacking stability. The mains-power input is provided via a Neutrik powerCON connector.
