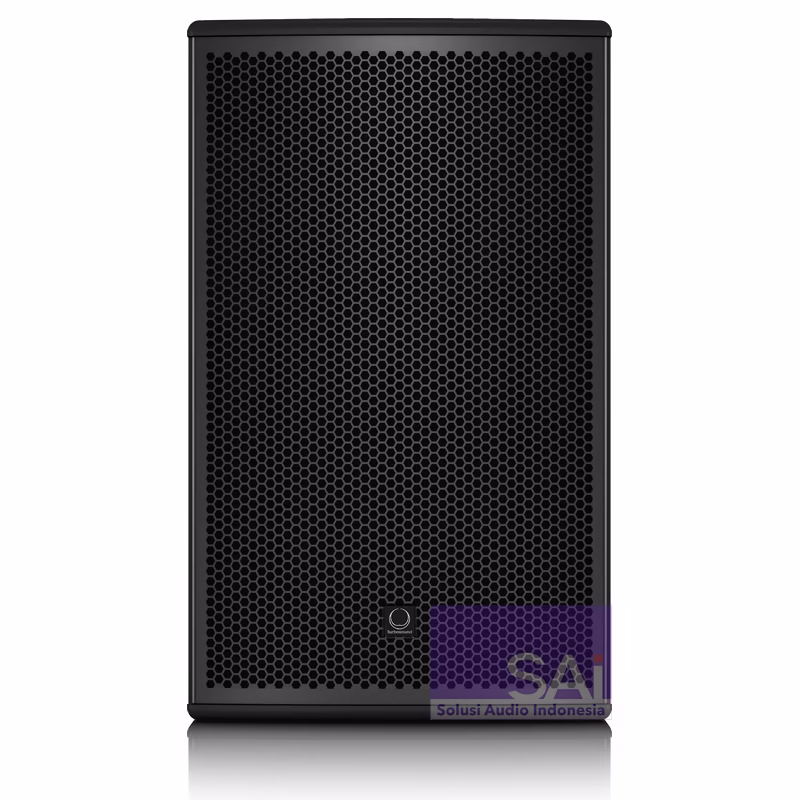

Turbosound NUQ102-AN Speaker Aktif 10 Inch 2 Way 600 Watt (DSP)

The 2-way full range Turbosound NuQ102-AN is a 600 Watt 10″ powered loudspeaker system that is ideally suited for a wide range of portable and fixed installation speech and music sound reinforcement applications. Designed to work individually without a controller, the NuQ102-AN provides optimal performance for FOH, sidefill and delay line loudspeakers, and is an exceptional choice for wedge monitoring applications. It also offers the flexibility to accommodate venue-specific requirements for install applications.

The NuQ102-AN Loudspeaker features a 10″ low-frequency driver with a low-mass voice coil for improved transient response and an aluminum dome with 1″ neodymium high-frequency compression driver, which is mounted on a rotatable 100 x 60° (horizontal x vertical) dispersion-converging elliptical waveguide. Output power for the NuQ102-AN Loudspeaker is provided by means of an efficient and lightweight KLARK TEKNIK 600W Class-D power amplifier. An easy-to-use KLARK TEKNIK Digital Signal Processor (DSP) provides dynamic EQ for impressive full-range response at low-volume levels and transparent limiting for clarity at high-output levels as well as for long-term reliability.

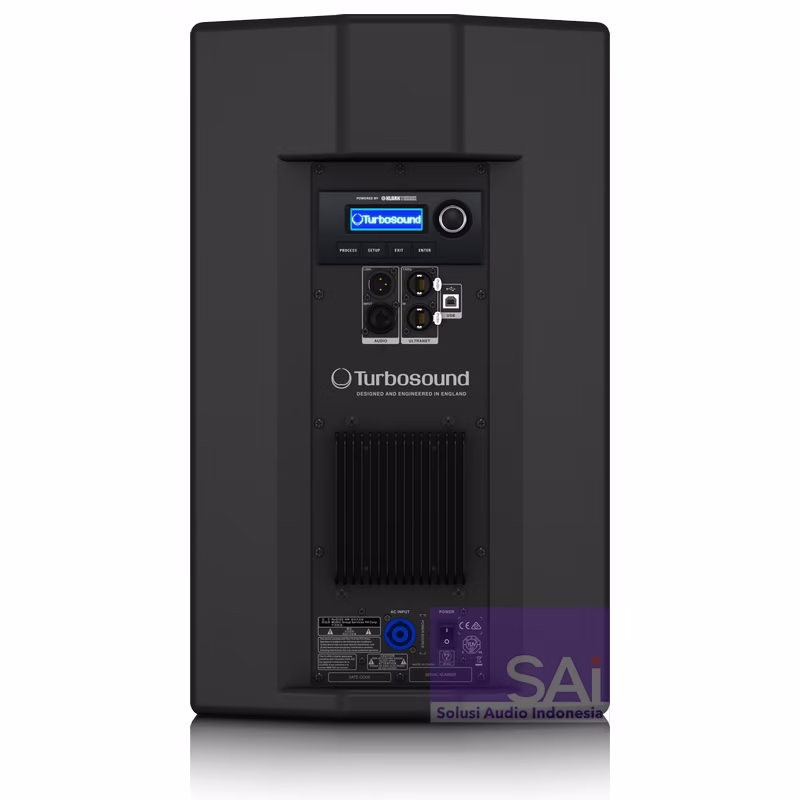

On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to position compensation, user EQ control, subwoofer integration, and signal-routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active loudspeakers or for use with active subwoofers. An onboard USB port provides access for remote control of the NuQ102-AN Loudspeaker via a Windows computer, as well as DSP firmware updates.

ULTRANET connectivity is provided by two locking etherCON connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single Cat5 cable between compatible digital devices including mixers, input/output stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.

Finished in a highly durable semi-matte black paint, the trapezoidal cabinet is constructed from 12mm birch plywood, and includes a rugged powder-coated perforated-steel mesh grille. Multiple threaded rigging points are provided for suspension in any orientation. The NuQ102-AN Loudspeaker also features a 35mm socket for standard pole mounting plus integrated handles for convenient transport. Mains-power input is provided via a Neutrik powerCON connector.

Turbosound NUQ102-AN Features
