TOPP PRO SOHO X3 Speaker Line Array Pasif 4 Inch 2 Way 8 Ohm 30 Watt
Speaker Line Array Pasif 4 Inch 30 Watt
Description
The new TOPP PRO ARRAY SERIES cabinets have been designed to provide a cost effective high grade solution while maintainig high quality cabinet construction and optimum components.
The array series, can be used for all types of applications including, but not limited to, churches, conference centers and discos.
The woofer and neodymium driver combination provides excellent performance rivaling those cabinets costing much more.
Spesifikasi
| System Type | 4″ Two-way passive system |
| Output Power | 30W Continuous, 60W Program |
| Sensitivity (1W/1m) | 88dB |
| Maximum SPL @ 1m | 103dB Max. (calculated) |
| Frequency Response | 100Hz-20kHz (-10dB) |
| Impedance | 8 ohms |
| Transducer Low | 4″ Neodymium Woofer, 1″ Voice Coil |
| Transducer High | 3 x Ø13mm (V.C) Neodymium Tweeter |
| Crossover Frequency | 3.0kHz |
| Dispersion(-6dB) | 110° Horizontal, 20° Vertical (one module) |

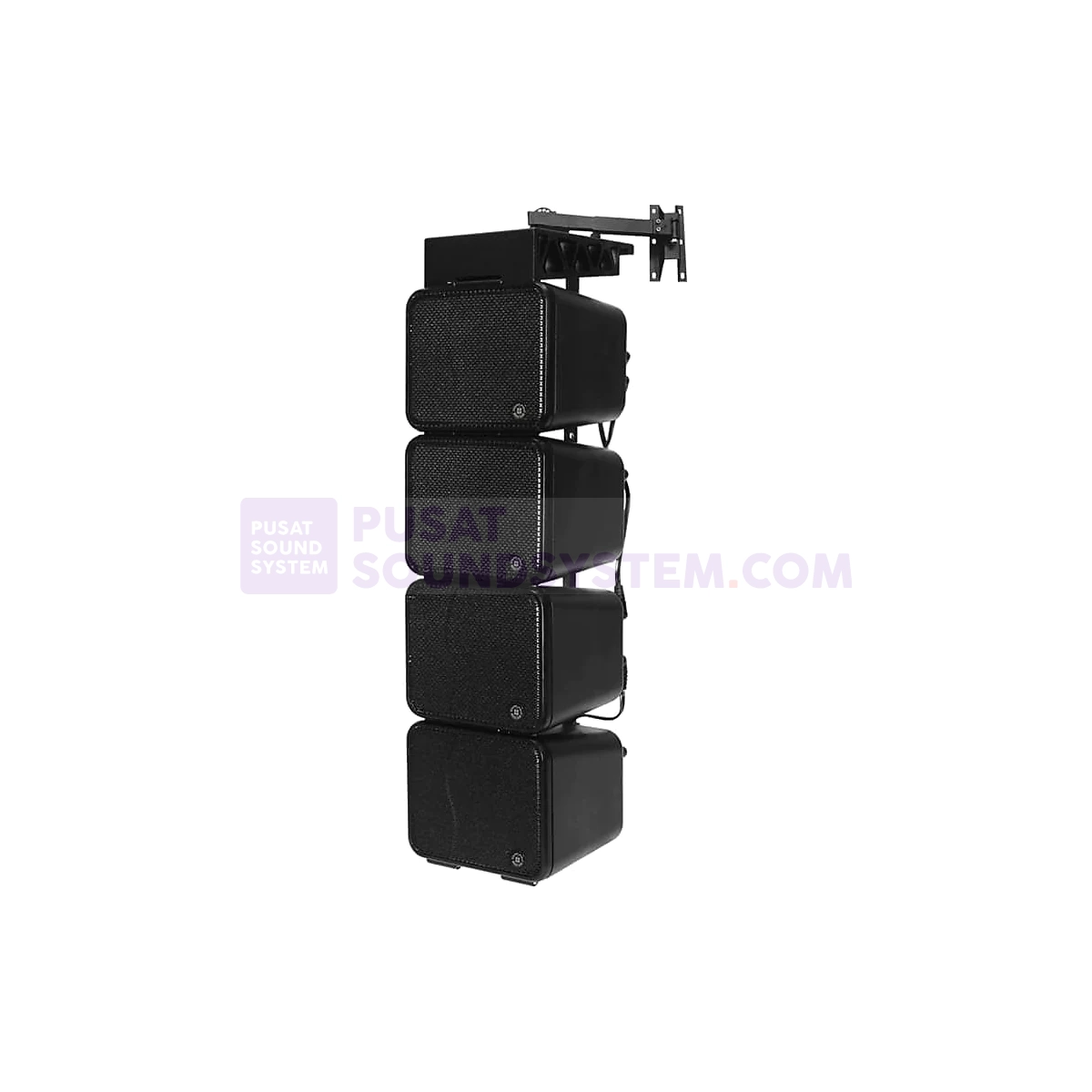

| Attachment Points | Adjustable Rigging System, Vertical Splay Adjustable in 0°- 4° – 8° – 12° Increments from 0°- 12° |

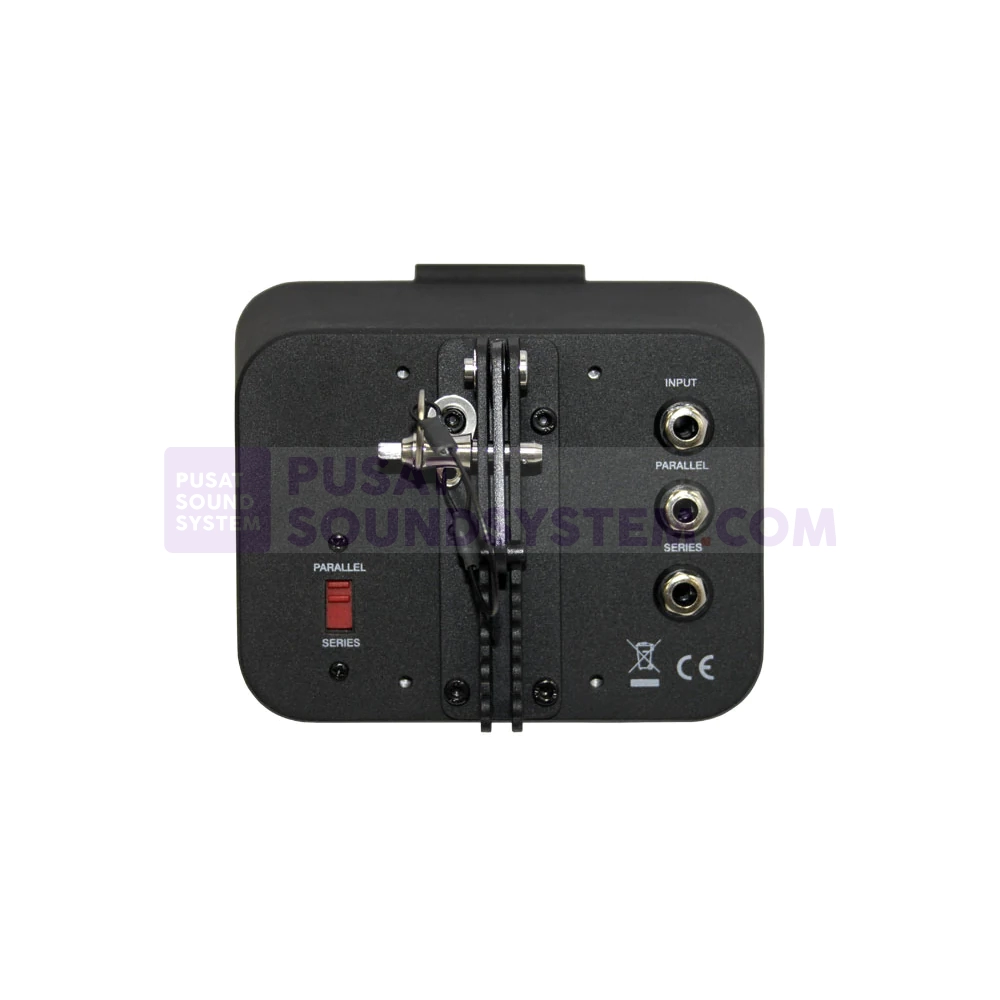

| Connectors | Parallel or Series Ø6.3mm Socket / Selection Switch |
| Enclosure Construction | Aluminum dia case enclosure, Resistant Black Paint, Steel Grille with foam |
| Fittings information | Steel Stirrup Material, 3 Flying Points |

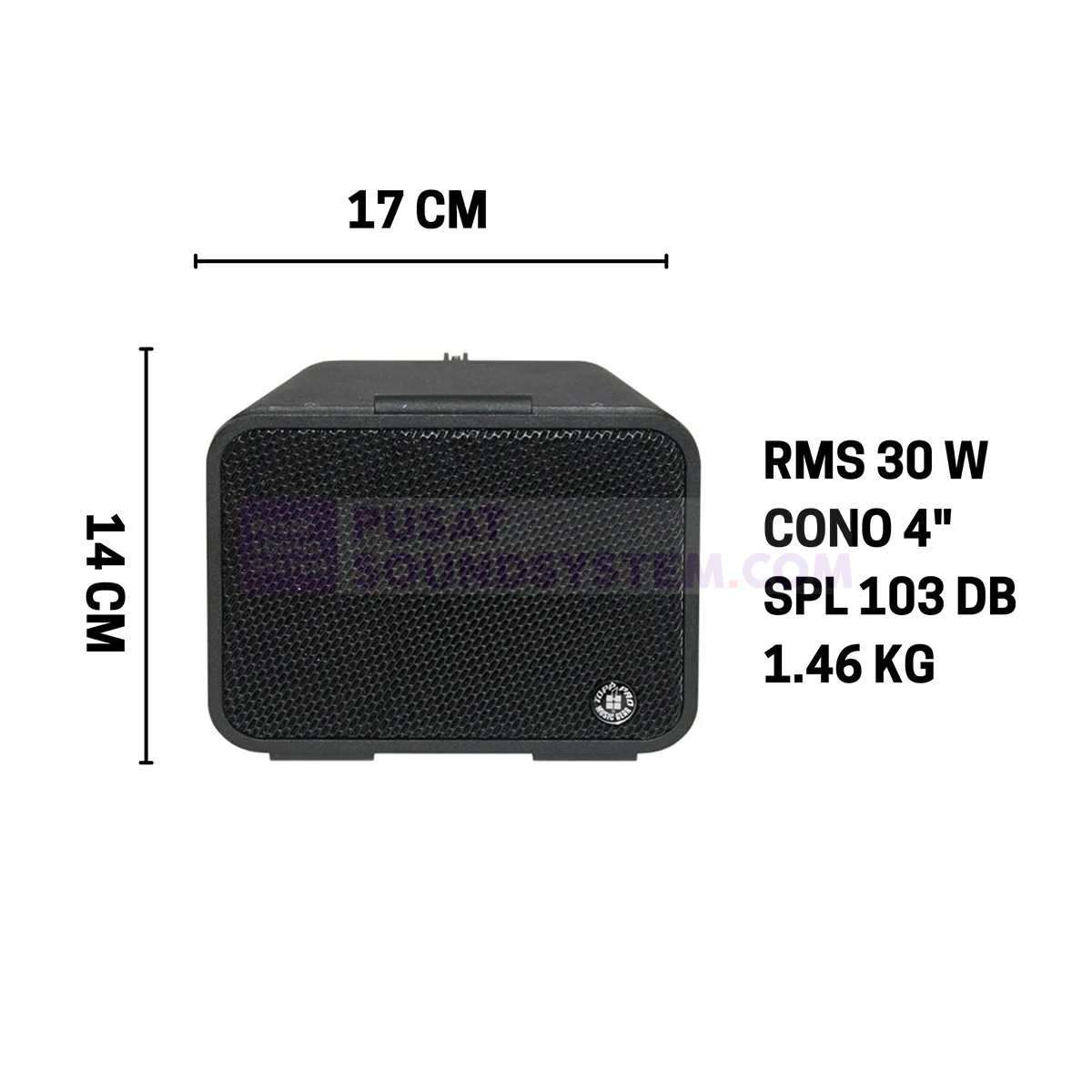

| Dimensions (HxWxD) | 141mm x 170mm x 162mm; 5.55″ x 6.69″x 6.38″ |
| Net Weight | 1.46kg / 3.21 lbs |
