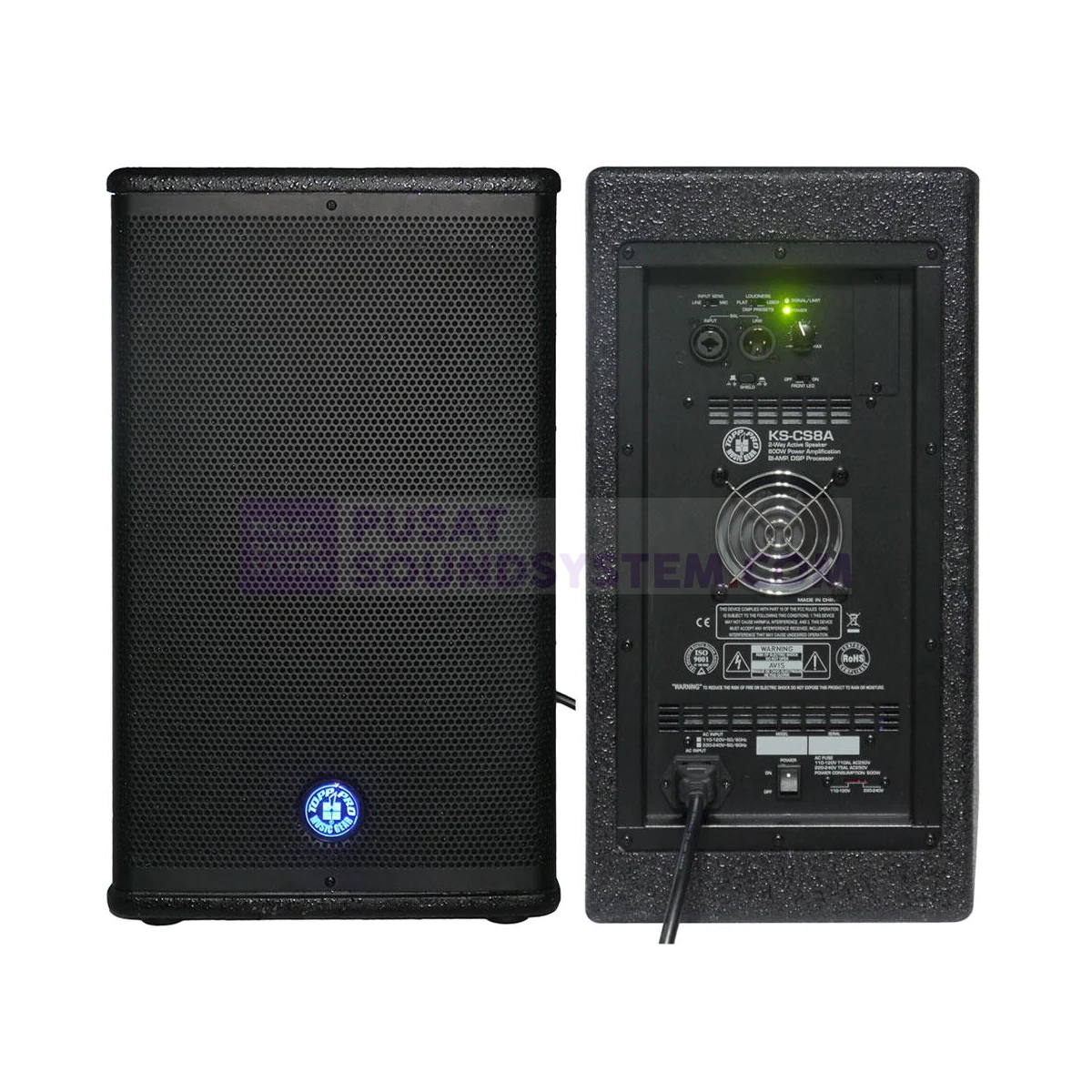

TOPP PRO KS CS8A Speaker Aktif 8 Inch 2 Way 1600 Watt
Speaker Aktif 2 Way 8 Inch 800 Watt dengan DSP
Description
The new TOPP PRO MUSIC GEAR KS-CS series cabinets have been Designed to provide a cost effective high grade solution while maintaining high quality construction and optimum components.
The KS-CS series is designed light weight powered loudspeaker systems and all new class D power amplifiers. The KS-CS 8A and KS-CS 10A use 800 Watt continuous class D+AB power module and the KS-CS 12A, KS-C5 15A and KS-CS 215A use 1000 Watt continuous class D power module. This series also breaks from the traditional loudspeaker paradigm, every model is fit with the identical 1.75″ voice coil Compression Driver and woofer of high quality for unparalleled performance, regardless of speaker size. Extensive DSP processing is employed throughout, providing levels of sonic clarity and total output that defy the system’s size and weight.
Premium-grade materials, advanced construction processes and multiple mounting and suspension options allow for a wide range of live and installed applications. Great pride & care is placed in delivering products with excellent performance, specifications, and dependable reliability. Every TOPP PRO audio product is strictly tested and complied to very strict standards.
Fitur
- Attractive and professional appearance.
- 2-Way Active Vented Speaker with DSP.
- 1″EXIT, 1.75″ Voice Coil Compression Driver.
- Linkwitz-Riley crossover with 24dB filter slope.
- 1000W Class D BFAMP (for KS-CS 12A/ 15A/ 215A), 800W Class D+AB BI-AMP (for KS-CS 8A /10A).
- Protections: Thermal / convection fan/ overload /Digital Lim / compressor.
- 110-120V~50/60Hz or 220-240V~50/60Hz switchable.
- Plywood cabinet, resistant black paint, metal grille with foam, rubber feet, plastic handle.
- One metal standard pole-mount plus (for KS-CS 10A/ 12A/ 15A) 12xM10 Flying points, KS-CS 8A 10xM10 flying points,
Spesifikasi
| Model Active | KS CS8A |
| System Type | 2-Way Active Vented Speaker with DSP |
| Transducer Low | 8″ Woofer, 2″ voice coil |
| Transducer Driver | 1″ Compression Driver, 1.75″ Voice Coil |
| Frequency Response (-6dB) | 60Hz – 20KHz |
| Crossover Frequency | At 1.8K Hz with 24dB filter slope, Linkwitz-Riley Type |
| Max SPL | 124dB Max. |
| Power Rating | 800W (CONTINUOUS) / 1600W (PROGRAM) / 3200W (PEAK) |
| Input Connector | Line / Mic – Combo / Link-XLR |
| DSP Presets | Flat / Loudness / User (Customer Sound) |
| Line Input | Combo Connector -6dBu |
| External Controls | Volume Control / Power ON with Green LED / Clip Limiter with Red LED / Ground Lift / Switch for Input Sens / Switch On for front Led / USB |
| Electronic Protections | Thermal / Convection-Fan / Overload / Digital Lim. / Compressor |
| Power Supply | 115V/230V Switchable |
| Enclosure Construction | Plywood cabinet, resistant black paint, metal grille with black foam, rubber feet, plastic handles |
| Mounting | One metal standard pole-mount, 10xM10 Flying Points |
| Dimensions (HxWxD) | 460 x 276.4 x 300mm / 18.11″ x 10.89″ x 11.81″ |
| Net Weight | 15.93kg / 35.05Ibs |
| Volume | 2.554CFT |
