TOA ZS-F03BT-AS Speaker Dinding Pasif 3.5 Inch 8 Ohm 60 Watt (High Impedance)
Chat Penjual
100% ORIGINAL
HARGA Kompetitif
GARANSI Resmi
AFTERSALES Service
Description

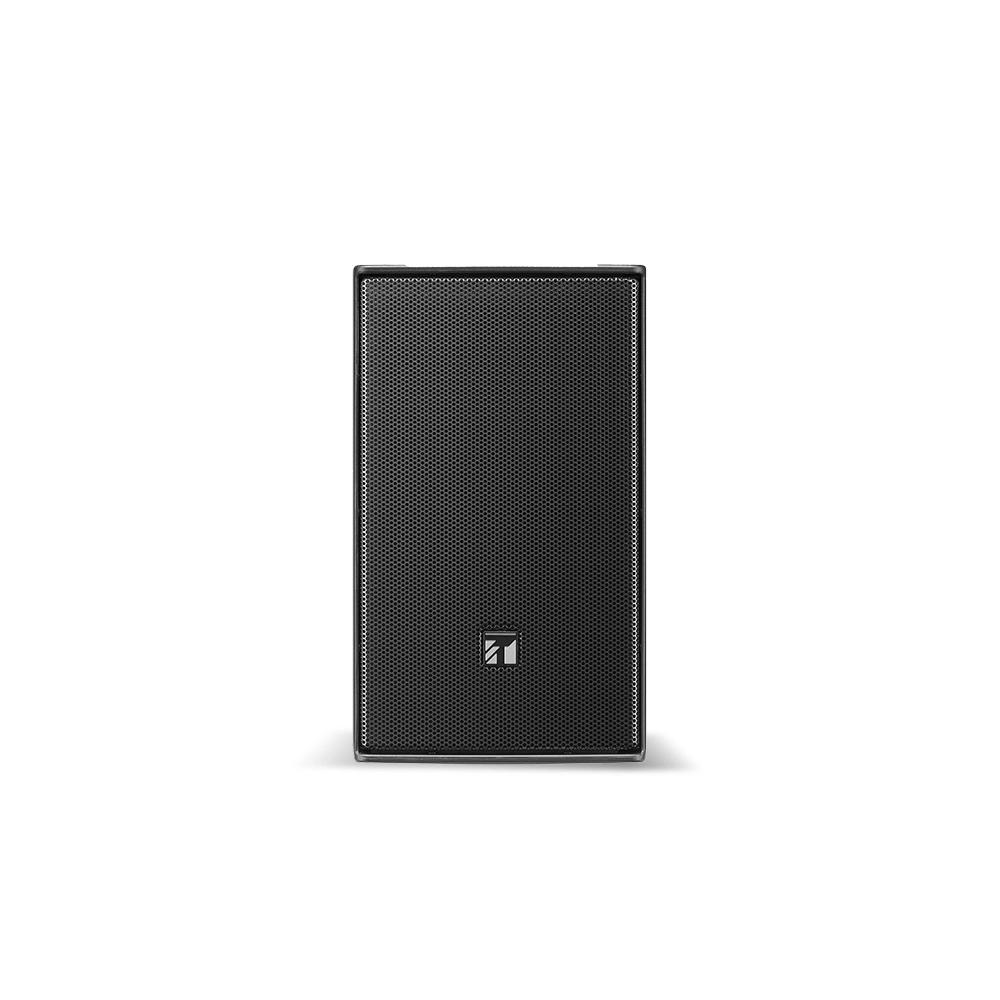

The ZS-F03BT-AS is a full-range surface-mount speaker system designed to deliver high-quality audio for various applications. This versatility makes it ideal for foreground and background music playback, as well as public address announcements. The ZS-F03BT-AS boasts a sleek aesthetic that seamlessly integrates with walls and ceilings, minimizing its visual impact and complementing a wide range of architectural styles. The innovative mounting hardware incorporates a temporary hanging feature, allowing for easy and secure single-handed installation with effortless wiring and angle adjustments.
| Enclosure | Bass-reflex type |
| Power Handling Capacity (*1) | Rated noise power: 30 W (8 Ω) continuous program: 60 W (8 Ω) |
| Rated Input | 15 W (100 V line, 70 V line) |
| Rated Impedance | 8Ω 100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W) 70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W) |
| Sensitivity | 87 dB (1 W, 1m) at installation in 1/2 free sound field |
| Frequency Response | 85 Hz – 20 kHz, -10 dB at installation in 1/2 free sound field |
| Directivity Angle | Horizontal: 100º Vertical: 100º |
| Speaker Component | 9 cm (3.5″) Full-range PPcone-type |
| Input Terminal | Push-in terminal |
| Operating Temperature | -10ºC to +50ºC (14ºF to 122ºF) |
| Installation Environment | Indoor Installation |
| Finish | Enclosure: HIPS, black (RAL 9011 equivalent), paint Grille: Steel plate, black (RAL 9011 equivalent), paint Speaker Bracket: Die-cast aluminum, black (RAL 9011 equivalent), paint Base bracket: Steel-plate, t4, black (RAL 9011 equivalent), paint Base bracket cover: HIPS, black (RAL 9011 equivalent) |
| Dimensions | 130 (W) x 221 (H) x 132 (D) mm (5.12″ x 8.7″ x 5.2″) |
| Weight | 1.7 kg (3.75 lb) |
| Accessory | Speaker bracket …1 Base bracket …1 Base bracket cover …1 Bracket fixing screw …1 set |
| Option | Adapter plate: HY-F03B Speaker stand: ST-34B Note: K&M 19780 is required or K&M 19610 |
(*1) Rated noise power is defined by IEC60268-5. The continuous program is 3 dB above rated noise power.
Note: Bolts and nuts for mounting the bracket to the wall or ceiling are not included. Prepare them separately.
