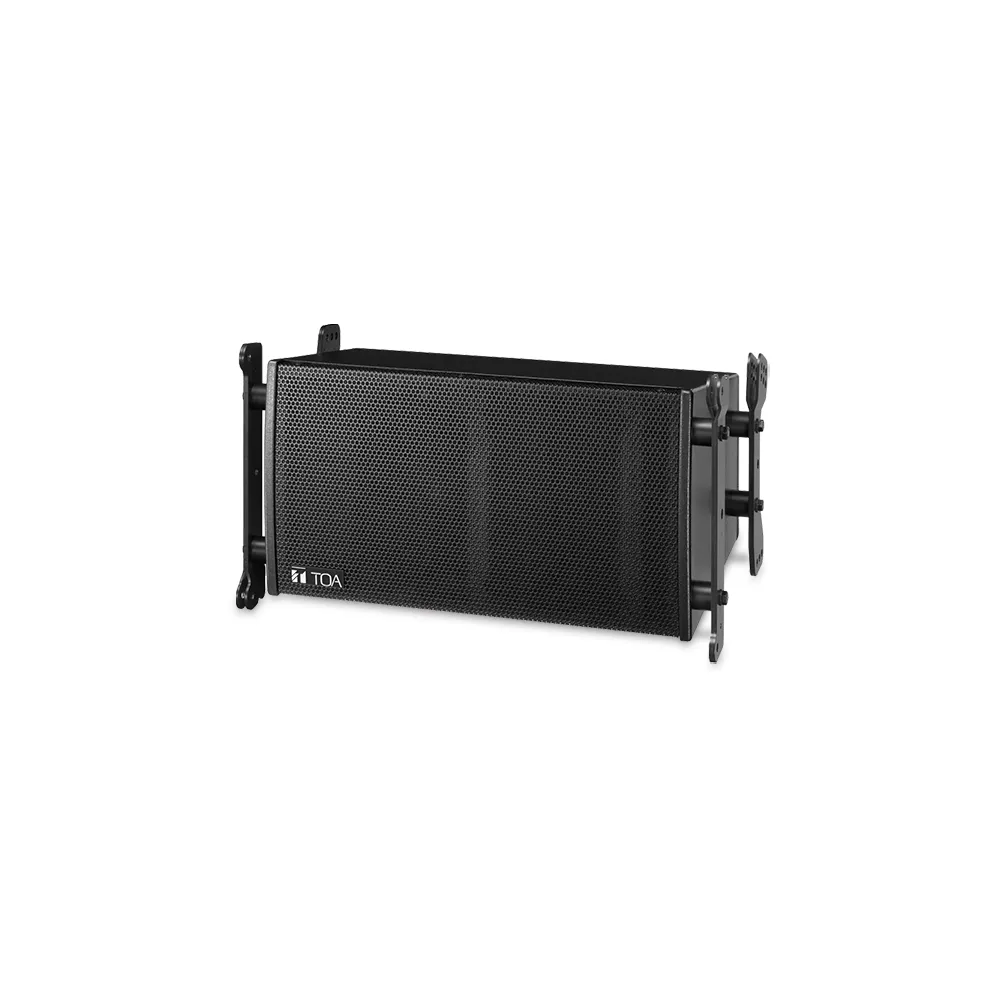

TOA SR-C8SWP Speaker Line Array Pasif 8 Inch 2 Way 16 Ohm 360 Watt (Waterproof)

TOA SR-C8SWP Speaker Line Array Pasif 8 Inch 2 Way 16 Ohm 360 Watt (Waterproof)

8″ 2-way Line Array Speaker

Chat Penjual
Category: Tags: , , , , Brand:
TOA
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The SR-C8SWP is a 2-way Line Array Speaker featuring wave front control technology which creates a sound field with high sound clarity and uniform sound pressure. It can be converted into the bi-amplifier drive system by changing the internal connection.

TOA SR-C8SWP Features

  • TOA’s unique wave front control technology creates a uniform sound distribution field with interference-free high frequency output, realizing high-clarity acoustic characteristics and long sound transmission capabilities.
  • The line array speakers are designed to allow easy rear access for maintenance work.
  • Overlap angles between individual speakers can be set in 1 degree units between 0 and 5 degrees when constructing the line array speaker, making it possible to flexibly control speaker directivity.



Enclosure Bass-reflex type
Power Handling Capacity Continuous program: 360 W (single-amp mode)
Low: 360 W, High: 180 W (bi-amp mode)
Rated Impedance 16 Ω (single-amp mode)
Low: 16 Ω, High: 16 Ω (bi-amp mode)
Sensitivity 98 dB (1 W, 1 m) (single-amp mode)
Low: 95 dB (1 W, 1 m), High: 110 dB (1 W, 1 m) (bi-amp mode)
Frequency Response 65 Hz – 20 kHz (when recommended parameters are applied by the optional DP-SP3)
Crossover Frequency 1.6 kHz (when recommended parameters are applied by the optional DP-SP3)
Directivity Angle Horizontal: 110゜, Vertical: 15゜
Speaker Component Low frequency: 20 cm (8″) cone-type
High frequency: Wave front control horn 110%%d (horizontal) × 15%%d (vertical)
+ compression driver × 2
Connected Cable Direct cable withdrawal from internal speaker: φ8.6 mm (φ0.34″), conductor cross section: 1.25 m㎡ (0.05″), 4-core cable, 3 m (9.84 ft)
Water Protection IPX4
Finish Enclosure: Plywood, black, urethane coating
Front grille: Punched stainless steel, black, paint
Dimensions 526.6 (W) × 293 (H) × 294 (D) mm (20.73″ × 11.54″ × 11.57″)
Weight 16 kg (35.27 lb)
Accessory M8 connection bolt …4
Option Rigging frame: SR-RF8WP
Digital speaker processor: DP-SP3
