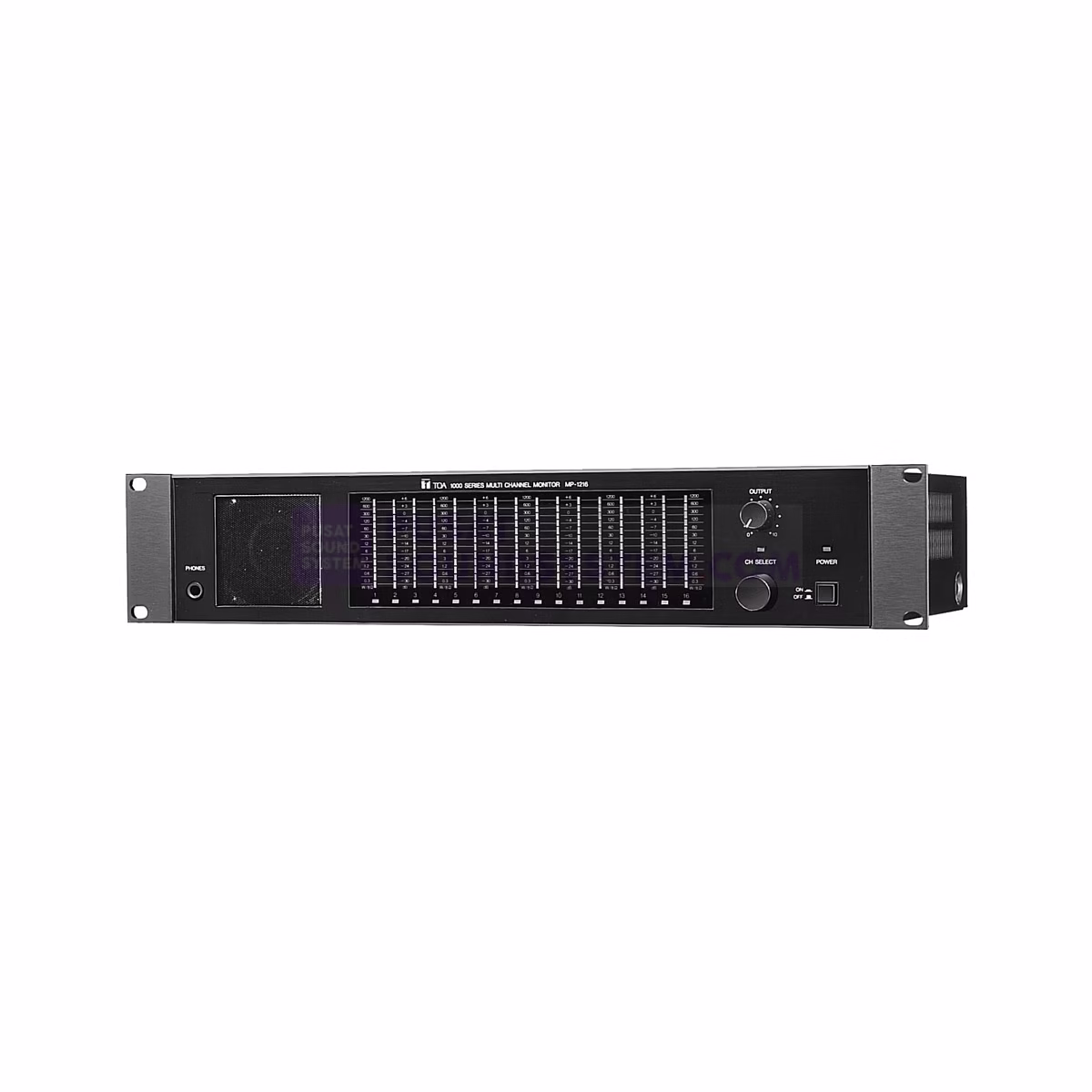

TOA MP-1216 Multi-Channel Monitor

TOA MP-1216 Multi-Channel Monitor

Multi-Channel Monitor

Chat Penjual
Category: Brand:
TOA
Pengiriman Cepat

100% ORIGINAL

Pengiriman Cepat

HARGA Kompetitif

Pengiriman Cepat

GARANSI Resmi

Pengiriman Cepat

AFTERSALES Service

Description

The signal level meter allows simultaneous monitor of 16 channels per unit. Any of the high-impedance speaker line output, low-impedance speaker line output, and line level output can be monitored by connecting it to the corresponding input. One of the 16 channels can be monitored with an internal speaker or headphone. By connecting two MP-1216 units, a maximum of 32 channels can be monitored.

  • Multi Channel Monitor for 16 channels
  • Allows visual and aural monitoring
  • 2 units can be linked for up to 32 channels (with optional cable YA-8: 1 master monitor unit)
  • 12-segment LED meter with calibrated scale for each input
  • Audio monitoring of each channel through a built-in selector switch and loudspeaker
  • All inputs balanced and transformer isolated



Application examples for this product:
  • Boardrooms
  • Conference rooms
  • Health and fitness clubs
  • Restaurants



Power Requirement AC mains, 50/60 Hz
Power Consumption 21 W (120 V version)
25 W (220 – 240 V version)
Max. Display Level Speaker
High impedance: 100 V
Low impedance: 1200 W / 8 Ω
Line: +10 dB (2.45 V)
Level Meter 12-point display, -30 dB 〜 +6 dB (0.3 W 〜 1200 W / 8 Ω)
Speaker Output Max. 3 W
Headphone Output 8 Ω
Finish Front panel: Alumite, black
Dimensions 482.6 (W) × 88.4 (H) × 312.7 (D) mm (19″ × 3.48″ × 12.31″)
Weight 5.3 kg (11.68 lb)
Accessory AC fuse, 250 V 1 A (120 V version)…1,
AC fuse, 250 V T250 mA (220 – 240 V version)…1,
Rack mounting screw…4
