Description

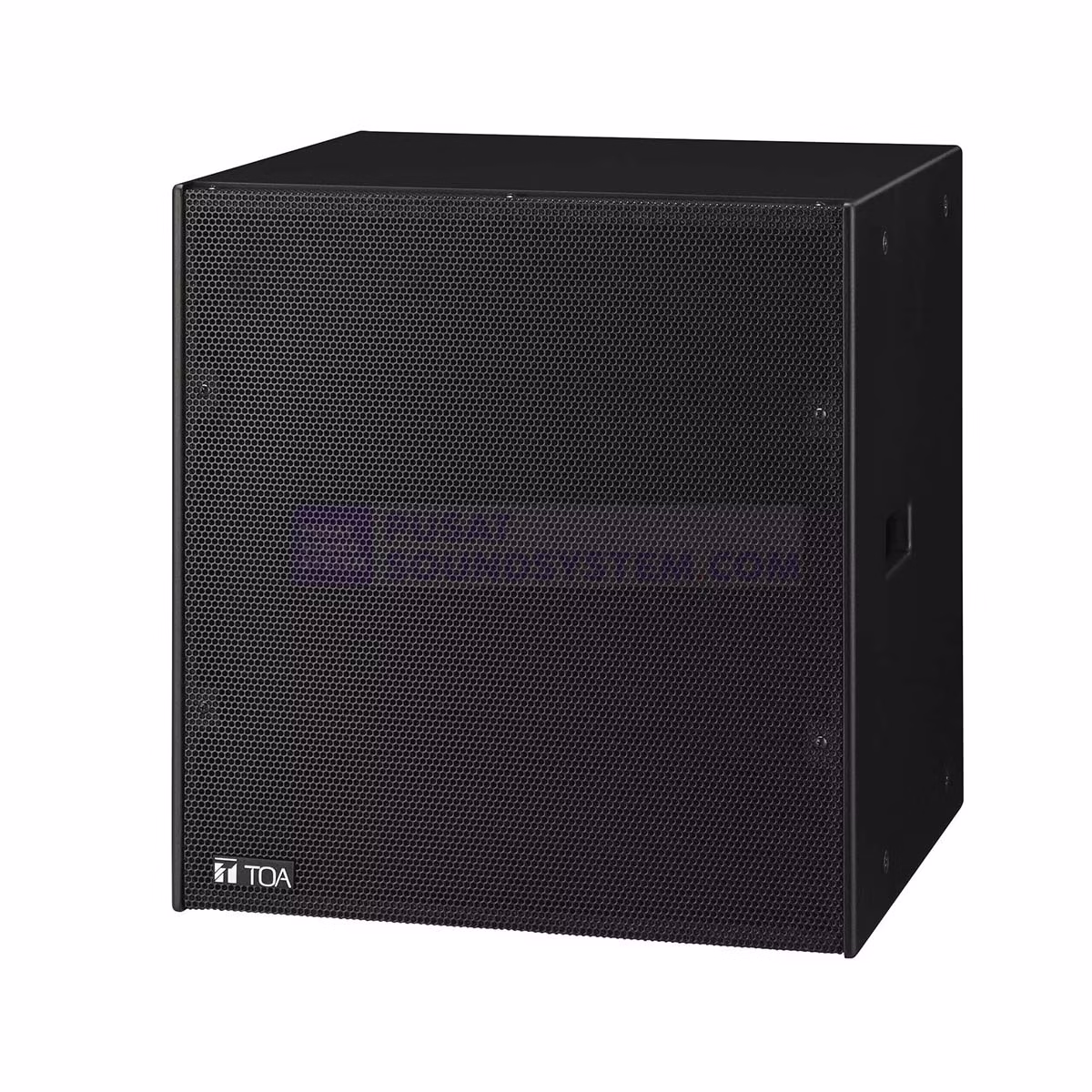

The FB-150B is a compact, indoor-use subwoofer system employing a high-power 38 cm (15″) woofer. It is designed for use in conjunction with TOA’s HX-7B or other full range speakers, and is particularly ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations.
- Compact subwoofer
- High power 38 cm (15“) woofer
- Ideal in conjunction with HX-7 speaker
- Perfect for reproducing dynamic low-frequency sound for both permanent and temporary installations
Application examples for this product:
- Clubs
- Houses of worship
- Auditoriums
- Multipurpose halls
Power Handling Capacity | Continuous pink noise: 200 W Continuous program: 600 W |
---|---|
Impedance | 8 Ω |
Sensitivity | 93 dB (1 W, 1 m) |
Frequency Response | 40 – 400 Hz (-10 dB) |
Speaker Component | 38 cm (15″) cone-type |
Input Terminal | Speakon NL4MP × 2 and M5 screw terminal, distance between barriers: 12.2 mm (0.48″) |
Finish | Enclosure: MDF, black, urethane painte Punched net: Surface-treated steel plate, black, paint |
Dimensions | 505 (W) × 528 (H) × 477 (D) mm (19.88″ × 20.79″ × 19.17″) |
Weight | 30 kg (66.14 lb) |
Option | Speaker rigging frame: HY-PF7B |
